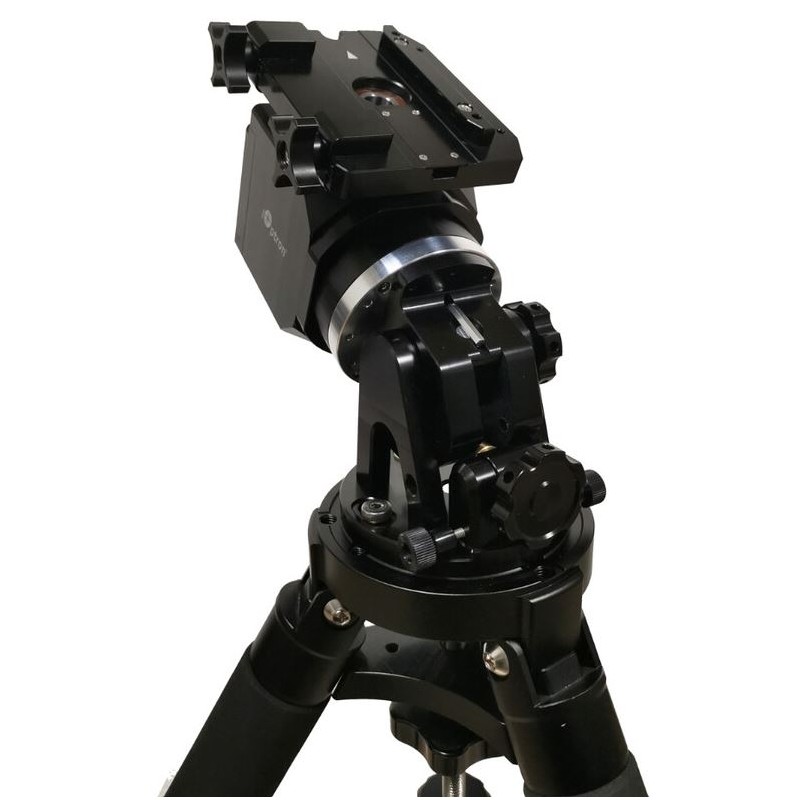

iOptron Mount HAE29 Strain Wave AZ/EQ iMate (77535)

The iOptron HAE29 is a compact and transportable dual-function mount that can operate in either azimuthal (Alt-Az) or parallactic (equatorial) mode. With a load capacity of up to 13.5 kg without counterweights and 18 kg with counterweights, this mount is lightweight yet capable of handling medium-sized telescopes. Counterweights and tripod are sold separately.

Key Features:

• Dual Functionality: Operates as an azimuthal or equatorial mount, offering flexibility for different observing needs.

• Lightweight Design: Mount head weighs only 3.7 kg while supporting high payloads.

• GoTo System: Includes iOptron’s Go2Nova® technology with a database of 212,000 celestial objects, ASCOM compatibility, and integrated WiFi for control via tablets, smartphones (SkySafari), Raspberry Pi, or INDI platforms.

• Electronic Pole Finder (iPolar): Enables simple and precise polar alignment using computer assistance.

• Dual Saddle: Compatible with Vixen and Losmandy dovetails for versatility with various telescopes.

• Electronic Friction Brake: Instantly stops mount movement if power is interrupted, ensuring safety and stability.

• Automatic Calibration: The mount self-calibrates upon power-up to determine its position.

• Accessories Included: Comes with a power cable and a lightweight yet sturdy carry case for portability.

Specifications:

Capacity:

• Maximum Payload: 13.5 kg without counterweights; 18 kg with counterweights

Interfaces:

• WiFi, USB, HC (Hand Controller)

Mounting Saddle:

• Compatible with Losmandy and Vixen dovetails

Weight:

• Mount Head Only: 3.7 kg

Power Supply Requirements:

• Voltage: 12V DC; Current: 5A

Cable Management:

• External cable management possible

Materials:

• Right Ascension Axis: Aluminium

• Declination Axis: Aluminium

Motor Type:

• Stepper motors

Drive Type:

• Harmonic/Strainwave drive

Special Features:

• GoTo System: Yes (Go2Nova® 8409 software)

• PEC Correction: Not available

• Polar Alignment: Computer-assisted (iPolar)

Equipment Included:

• Transport Cases: Yes

• Power Pack: Yes

General Information:

• Series: HAE

• Type: Mount (Dual-function Azimuthal/Equatorial)

GoTo Control Features:
The HAE29 supports GPS functionality, WiFi connectivity, autoguiding compatibility, and computer-assisted polar alignment.

The iOptron HAE29 is ideal for astronomers seeking a versatile and portable mount capable of precise tracking and GoTo functionality for both visual observations and astrophotography setups.
