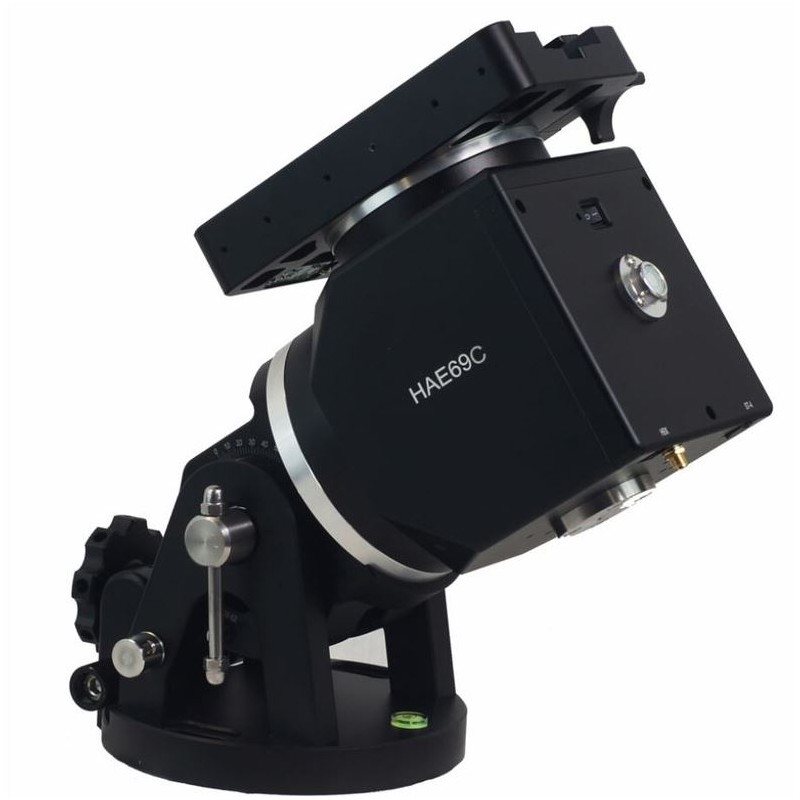

iOptron Mount HAE69C Dual AZ/EQ (80600)

The iOptron HAE69C Dual AZ/EQ mount is a compact and lightweight yet highly capable mount designed for both azimuthal (Alt-Az) and equatorial (EQ) operation. Weighing only 9 kg, this mount supports an impressive payload capacity of up to 36 kg with counterweights, or 31 kg without counterweights, making it ideal for astrophotographers and visual observers seeking portability without compromising performance. Utilizing advanced strain wave gear technology for RA and DEC movement, the HAE69C delivers precise tracking and exceptional weight-to-payload efficiency.

5022.44 CHF
Tax included

4083.29 CHF net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The iOptron HAE69C Dual AZ/EQ mount is a compact and lightweight yet highly capable mount designed for both azimuthal (Alt-Az) and equatorial (EQ) operation. Weighing only 9 kg, this mount supports an impressive payload capacity of up to 36 kg with counterweights, or 31 kg without counterweights, making it ideal for astrophotographers and visual observers seeking portability without compromising performance. Utilizing advanced strain wave gear technology for RA and DEC movement, the HAE69C delivers precise tracking and exceptional weight-to-payload efficiency.



The mount features a rugged black anodized CNC-machined body for durability and long-term reliability. Unique capabilities such as an electronic friction brake ensure safe operation during power interruptions, while power-down memory allows the mount to resume tracking or GoTo slews without requiring realignment. The internal mainboard eliminates the need for a handset, with USB ports on both the base and saddle for direct control and firmware upgrades. Built-in Wi-Fi further enhances connectivity, enabling remote operation via tablets, smartphones, or computers.



Key Features:

  • Dual Functionality: Operates in both Alt-Az and EQ modes for versatile applications.

  • Payload Capacity: Supports up to 31 kg without counterweights and 36 kg with counterweights.

  • Advanced Strain Wave Gear Technology: Ensures precise RA and DEC movements with low periodic error (< ±15 arcseconds).

  • Electronic Friction Brake: Safely stops movement during planned or unplanned power interruptions.

  • Power-Down Memory: Saves position and location for seamless resumption after power loss.

  • Built-In Wi-Fi: Enables remote control via various devices.

  • Internal Mainboard: USB ports on the base and saddle allow direct mount control and firmware updates.

  • Dual Saddle Compatibility: Compatible with Vixen-style and Losmandy dovetails for telescope versatility.

  • Integrated ST-4 Autoguiding Port: Ensures compatibility with guiding systems.

  • Optional iPolar Electronic Polar Scope: Provides easy polar alignment for EQ mode.





Specifications:

Capacity:

  • Maximum Payload: 31 kg without counterweights; 36 kg with counterweights

Interfaces:

  • Wi-Fi, USB (Go2Nova 8411)

Mounting Saddle:

  • Compatible with Losmandy and Vixen dovetails

Weight:

  • Mount Head Only: 9 kg

Power Supply Requirements:

  • Voltage: 12V DC; Current: 6A

Cable Management System:

  • Internal routing

Materials:

  • Right Ascension Axis: Aluminum

  • Declination Axis: Aluminum

Motor Type:

  • Stepper motors

Drive Type:

  • Harmonic/Strainwave drive

Special Features:

  • GoTo System: Yes (Go2Nova® software)

  • PEC Correction: Yes (Permanent PEC available)

  • Polar Alignment: Easy Polar Alignment (Optional iPolar scope)

Equipment Included:

  • Transport Cases: Yes

  • Power Pack: Yes

General Information:
The HAE69C is part of the HAE series of mounts, featuring GPS functionality, Wi-Fi connectivity, autoguiding compatibility, PEC correction, and advanced GoTo controls with a database of 212,000 celestial objects.

The iOptron HAE69C is an excellent choice for astronomers seeking a lightweight yet powerful mount capable of delivering precision tracking, advanced automation features, and compatibility with modern astrophotography equipment across multiple platforms.
