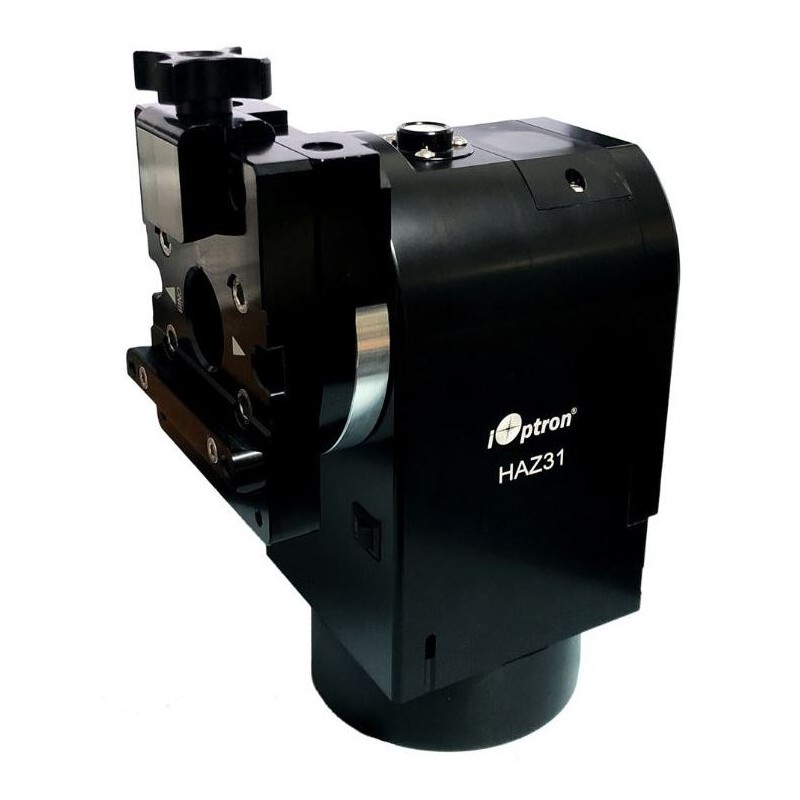

iOptron Mount HAZ31 ALT-AZ Strain Wave (77381)

The iOptron HAZ31 Strain Wave is a compact and lightweight alt-azimuth mount designed for portability and ease of use. Weighing only 3.7 kg, it can support payloads of up to 14 kg, making it an excellent travel mount for visual observations. With full GoTo functionality powered by iOptron's Go2Nova® technology, the mount includes a database of 212,000 celestial objects and offers ASCOM compatibility. Integrated WiFi allows control via tablets or smartphones using SkySafari, Raspberry Pi, or INDI platforms.

The HAZ31 features a dual Vixen/Losmandy saddle for compatibility with various telescopes and large binoculars. Its prism clamp socket can be adjusted laterally or horizontally to securely attach telescopes with longer focal lengths or binoculars without requiring counterweights. The built-in "Electronic Friction Brake" ensures safety by stopping movement during unexpected power interruptions, while automatic calibration detects the mount's position upon power-up. The HAZ31 comes with a power adapter and a robust yet lightweight carry case. Optional tripod and extension tube are sold separately, though the mount is compatible with any sturdy photography tripod with sufficient load capacity. For optimal performance, iOptron recommends the "40mm CF tripod" (Product no. 77370).

Key Features:

• Load Capacity: Supports up to 14 kg while weighing only 3.7 kg.

• Integrated WiFi: Enables remote control via tablets or smartphones using popular software platforms like SkySafari and INDI.

• GoTo Functionality: Includes a database of 212,000 celestial objects powered by Go2Nova® technology.

• Dual Saddle Compatibility: Compatible with both Vixen-style and Losmandy dovetails for versatility.

• Adjustable Prism Clamp Socket: Allows secure attachment of telescopes or binoculars without requiring counterweights.

• Electronic Friction Brake: Stops movement during power interruptions for safety.

• Automatic Calibration: Detects position upon power-up for seamless operation.

• Compact Design: Lightweight and portable, ideal for travel use.

• Optional Accessories: Compatible with iOptron's "40mm CF tripod" and extension tube.

Specifications:

Capacity:

• Maximum Payload: 14 kg

Interfaces:

• WiFi, USB, HC (Hand Controller)

Mounting Saddle:

• Compatible with Losmandy and Vixen dovetails

Weight:

• Mount Head Only: 3.7 kg

Power Supply Requirements:

• Voltage: 12V DC; Current: 5A

Cable Management System:

• Internal routing

Materials:

• Right Ascension Axis: Steel

Motor Type:

• Stepper motors

Drive Type:

• Harmonic/Strainwave drive

Special Features:

• GoTo System: Yes (Go2Nova® software)

• PEC Correction: Not available

• Polar Alignment: Computer-assisted alignment

Equipment Included:

• AC 100–240V to DC 12V Worldwide Power Adapter: Yes

• Carry Case: Yes

General Information:
The HAZ31 is part of the HAZ series of mounts, featuring GPS functionality, WiFi connectivity, and advanced GoTo controls with a database of 212,000 celestial objects.

The iOptron HAZ31 Strain Wave mount is an excellent choice for astronomers seeking a lightweight yet powerful solution for visual observations, offering portability, safety features, and advanced GoTo functionality tailored to modern needs.
