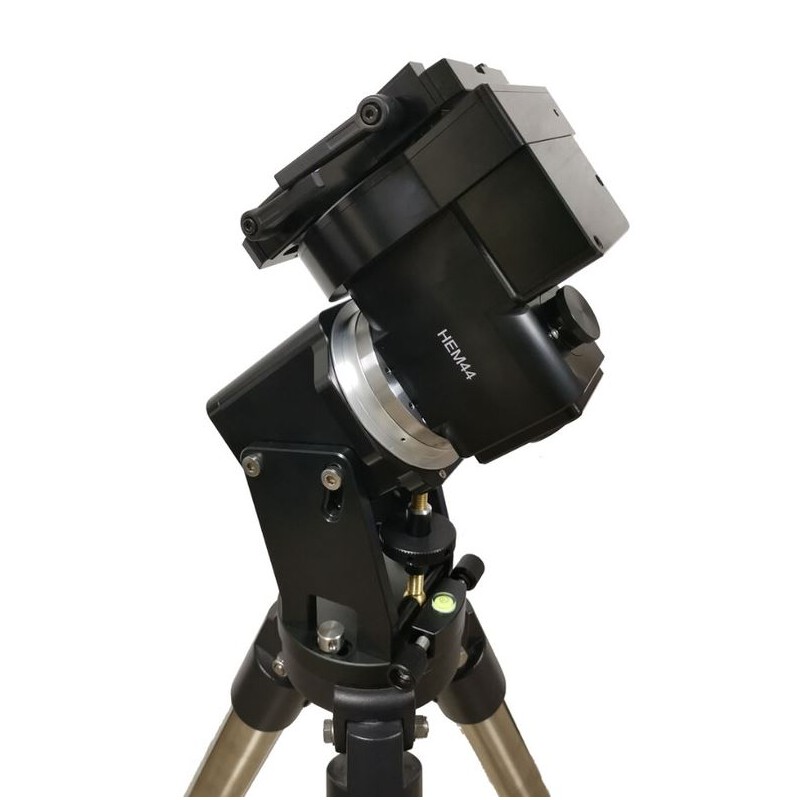

iOptron Mount HEM44 Hybrid EQ (77496)

The iOptron HEM44 Hybrid EQ mount is a lightweight and compact equatorial mount designed for astrophotographers and visual observers who value portability and performance. Weighing only 6.2 kg, this mount can support a payload of up to 20 kg without requiring counterweights, making it ideal for mobile setups. Utilizing advanced strain wave drive technology for RA movement and a backlash-free worm/belt system for DEC, the HEM44 ensures precise tracking and smooth operation. Its CNC-machined metal construction provides durability and a sleek anodized black finish.

This mount features an electronic friction brake that safely stops movement during power interruptions and a power-down memory function that resumes GoTo slews or tracking without requiring realignment. The HEM44 is compatible with ASCOM and INDI drivers, allowing control via Windows PCs, macOS, smartphones, tablets, or Raspberry Pi devices using apps like SkySafari or iOptron Commander Lite. It also includes built-in WiFi, making it easy to operate remotely.

Key Features:

• Load Capacity: Supports up to 20 kg without counterweights while weighing only 6.2 kg.

• Strain Wave Drive Technology: Provides precise RA movements with a 270-second gear period.

• Compact Design: Lightweight and portable for mobile astrophotography or observation setups.

• Electronic Friction Brake: Safely stops movement during power interruptions.

• Power-Down Memory: Resumes tracking or GoTo alignment without reinitialization.

• Dual Saddle Compatibility: Supports Vixen-style and Losmandy dovetails for versatile telescope mounting.

• Built-In WiFi: Enables remote control via smartphones, tablets, or computers using apps like SkySafari.

• Cable Management System: Internal routing prevents cable tangling during operation.

• Go2Nova Hand Controller: Includes a database of 212,000 celestial objects for precise GoTo functionality.

Specifications:

Capacity:

• Maximum Payload: 20 kg without counterweights

Interfaces:

• WiFi, USB, HC (Hand Controller)

Mounting Saddle:

• Compatible with Losmandy and Vixen dovetails

Weight:

• Mount Head Only: 6.2 kg

Power Supply Requirements:

• Voltage: 12V DC; Current: 5A

Cable Management System:

• Internal routing (2x12V outputs at 4A max., 1x USB2.0)

Materials:

• Right Ascension Axis: Aluminum

• Declination Axis: Aluminum

Motor Type:

• Stepper motors

Drive Type:

• Harmonic/Strainwave drive

Special Features:

• GoTo System: Yes (Go2Nova® software)

• PEC Correction: Yes (Permanent PEC available)

Equipment Included:

• AC Power Adapter: Yes (100–240V to DC 12V)

• Transport Case: Yes

General Information:
The HEM44 is part of the HEM series of mounts, featuring GPS functionality, WiFi connectivity, autoguiding compatibility (ST-4 port), and advanced GoTo controls with a database of 212,000 celestial objects.

The iOptron HEM44 Hybrid EQ mount is an excellent choice for astronomers seeking a lightweight yet powerful solution for precise tracking, advanced automation features, and compatibility with modern astrophotography equipment across multiple platforms.
