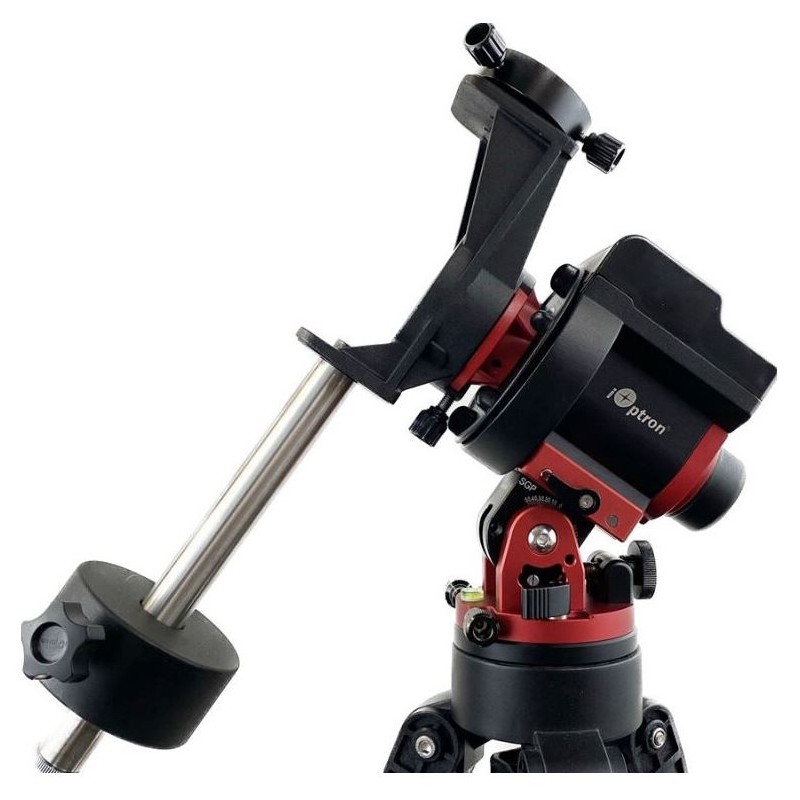

iOptron Mount SkyGuider Pro set with polar wedge (79528)
The SkyGuider Pro is a lightweight and versatile mount designed for tracking cameras with interchangeable lenses or small telescopes, enabling longer exposure times to capture stunning wide-angle shots of the night sky. As the upgraded version of the popular iOptron SkyTracker Pro, the SkyGuider Pro supports heavier setups, with a payload capacity of up to 5 kilograms, thanks to its thicker right ascension axis, larger worm gears, and included counterweight system for precise balance.
33087.81 ₴ net price (non-EU countries)
Anatolii Livashevskyi
Product Manager /
+48721808900 +48721808900
+48721808900
[email protected]
Description
The SkyGuider Pro is a lightweight and versatile mount designed for tracking cameras with interchangeable lenses or small telescopes, enabling longer exposure times to capture stunning wide-angle shots of the night sky. As the upgraded version of the popular iOptron SkyTracker Pro, the SkyGuider Pro supports heavier setups, with a payload capacity of up to 5 kilograms, thanks to its thicker right ascension axis, larger worm gears, and included counterweight system for precise balance. This mount is ideal for astrophotographers seeking portability and performance.
The SkyGuider Pro also offers flexibility by allowing the attachment of a second camera instead of the counterweight, enabling simultaneous imaging of the sky with two different focal lengths. The second camera can weigh up to 3 kilograms. For advanced tracking, the optional Go2Nova hand controller and ST-4 autoguiding input can be utilized. The mount features a built-in Li-polymer battery rechargeable via USB, providing up to 20 hours of operation.
To align the SkyGuider Pro with Earth's rotation axis, users can aim at Polaris using the built-in illuminated polarscope. The polarscope includes an engraved reticle for precise alignment, making setup straightforward. The mount supports various tracking speeds (sidereal, solar, lunar), including a half-star speed mode that keeps stars sharp while preserving focus on foreground objects such as landscapes or buildings. The direction of rotation can be reversed for use in the Southern Hemisphere, making this an excellent travel mount.
This set includes the iOptron Precision Polar Wedge ("Precision AZ Base") for enhanced alignment accuracy.
Key Features:
-
Payload Capacity: Supports up to 5 kg; second camera option supports up to 3 kg.
-
Built-In Battery: Rechargeable Li-polymer battery with up to 20 hours of operation via USB.
-
Illuminated Polarscope: Built into the RA axis for easy polar alignment.
-
Tracking Speeds: Sidereal, solar, lunar, and half-star speed for foreground preservation.
-
Southern Hemisphere Compatibility: Reversible rotation for global use.
-
Travel-Friendly Design: Compact and lightweight for portability.
Specifications:
Capacity:
-
Maximum Payload: 5 kg
Polar Elevation Setting:
-
Range: -30° to +65°
Materials:
-
Worm Gear: Brass
-
Worm Wheel: Aluminum
Worm Gear Teeth (RA):
-
144 teeth
Motor Type:
-
Servomotors
Dimensions:
-
RA Axis Diameter: 35 mm
-
RA Worm Shaft Diameter: 15 mm
-
RA Worm Gear Diameter: 88 mm
Axle Bearings:
-
Quantity: 4 pieces
Battery Information:
-
Type: Li-polymer (3.7V, 2000mAh)
-
Duration: Up to 20 hours
Power Supply Requirements:
-
Voltage: 5V (USB)
Operating Temperature Range:
-
-10°C to +40°C
Slow-Motion Azimuth Adjustment:
-
+/-5°
Counterweight Bar Diameter and Length:
-
Diameter: 20 mm; Length: 200 mm
Counterweights Included:
-
Quantity: 1 (1.35 kg)
Connection Types:
-
Vixen-style dovetail; 3/8" and 1/4" threads
Tracking Details:
-
Modes: Equatorial tracking on RA axis only (no DEC axis tracking)
-
Speeds: Sidereal, solar, lunar
Special Features:
-
Integrated Wedge: Yes
-
Autoguider Compatibility: Yes (ST-4 port)
Equipment Included:
-
Carry Case: Yes
-
Micro USB Cable: Yes
General Information:
-
Color: Black/Red finish
-
Series: SkyGuider Pro
-
Dimensions (LxWxH): 13 x 11.5 x 9.5 cm
-
Weight: 1450 g
The iOptron SkyGuider Pro is an excellent choice for astrophotographers seeking a portable yet powerful mount capable of delivering precise tracking for long-exposure imaging while offering flexibility and ease of use in various environments.
