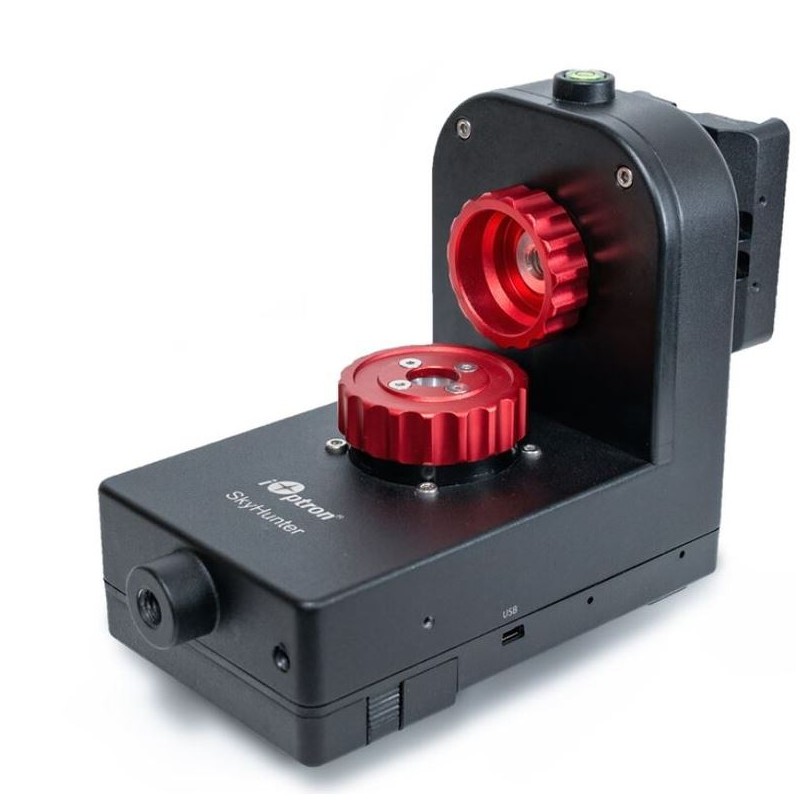

iOptron Mount mount SkyHunter AZ GoTo with tripod (75446)

iOptron has refined its former "cube" mount design into the SkyHunter series, setting a trend for portable camera mounts that are lightweight, compact, easy to use, and packed with advanced technology.

762.23 £
Tax included

619.7 £ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

  • Compact and lightweight (photo)mount, perfect for travel.

  • Load capacity of up to 5kg, ideal for small apochromatic telescopes like the William Optics RedCat or Sky-Watcher Evolux.

  • Equipped with a built-in battery and external power supply option.

  • Can be attached to a photo tripod.

  • Features servomotors with optical encoders for precision.

iOptron has refined its former "cube" mount design into the SkyHunter series, setting a trend for portable camera mounts that are lightweight, compact, easy to use, and packed with advanced technology.

The SkyHunter mounts come in three versions and can be fully controlled via a smartphone or tablet running iOS or Android. They also support ASCOM and INDI protocols. With the built-in WiFi adapter, the mount can be operated using ASCOM, iOptron Commander, or Sky Safari software. Additionally, thanks to its 3/8-inch connection, the mount can be attached to any standard camera tripod.

Built-in optical encoders and four tracking modes ensure precise tracking for use in both the northern and southern hemispheres.



Specifications:

Capacity:

  • Maximum load capacity: 5kg

  • Polar elevation adjustment range: 0° - 80°

  • Worm gear teeth (RA): 144

Motor Details:

  • Motor type: Servomotors

  • Axle bearings: Binary system

Battery Information:

  • Battery-powered: Yes

  • Battery life: Up to 10 hours

  • Battery type: Lithium-Polymer (3.7V)

  • Power supply: 5V

Operating Conditions:

  • Temperature range: -10°C to +40°C

Adjustments:

  • Slow-motion azimuth adjustment: +/- 5°

Counterweight Details:

  • Counterweight bar diameter: 20mm

  • Counterweight rod length: 200mm

  • Counterweight included: 1 piece (1.35kg)

Connections:

  • Mount connection size: 3/8 inch

Tracking Details:

  • Tracking speeds: Solar, lunar, sidereal

  • Tracking modes: Azimuthal tracking

Special Features:

  • RA axis tracking enabled.

  • DEC axis tracking not available.

  • Built-in level for alignment.

Equipment:

  • Carry case: Not included.

  • Motor-powered functionality: Yes.

  • Tripod included: Yes.

  • Power pack provided: Yes.

  • Pole finder: Not included.

General Information:

  • Color: Black-red design.

  • Series name: SkyHunter.

  • Dimensions (L x W x H): 30 x 25.5 x 12.5 cm.

  • Weight: 3600g

Type and Build:

  • Type: Mount system.

  • Build type: Azimuthal design.
