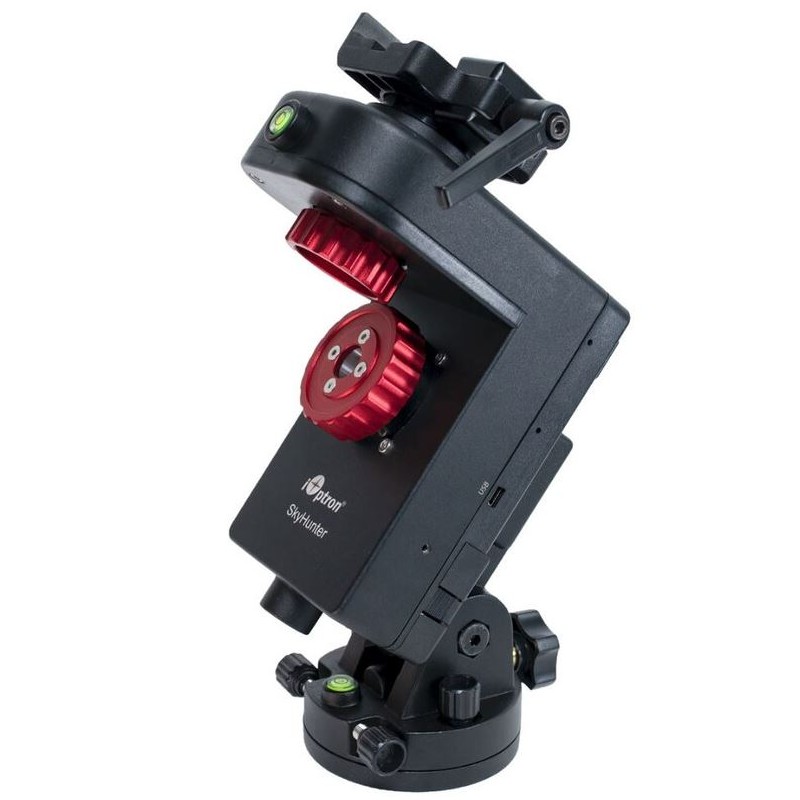

iOptron Mount SkyHunter EQ GoTo without tripod (77354)

iOptron has refined and perfected its former "cube" mount design in the SkyHunter series, introducing a new trend in portable camera mounts. These mounts are lightweight, compact, easy to use, and packed with advanced technology.

14504.38 Kč
Tax included

11792.18 Kč net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

  • Compact and lightweight (photo)mount, ideal for traveling.

  • Load capacity of up to 5kg, suitable for small apochromatic telescopes like the William Optics RedCat or Sky-Watcher Evolux.

  • Built-in battery with the option for external power supply.

  • Compatible with photo tripod attachment.

  • Equipped with servomotors featuring optical encoders for precision.

iOptron has refined and perfected its former "cube" mount design in the SkyHunter series, introducing a new trend in portable camera mounts. These mounts are lightweight, compact, easy to use, and packed with advanced technology.

The SkyHunter mounts come in three versions and can be fully controlled using a smartphone or tablet running iOS or Android. They also support ASCOM and INDI protocols. The built-in WiFi adapter allows control via ASCOM, iOptron Commander, or Sky Safari software. Additionally, the 3/8-inch connection enables the mount to be attached to any standard camera tripod if desired.

Built-in optical encoders and four tracking modes ensure precise tracking for use in both the northern and southern hemispheres.



Specifications:

Capacity:

  • Maximum load capacity: 5kg

  • Polar elevation adjustment range: 0° - 80°

  • Worm gear teeth (RA): 144

Motor Details:

  • Motor type: Servomotors

  • Axle bearings: Binary system

Battery Information:

  • Battery-powered: Yes

  • Battery life: Up to 10 hours

  • Battery type: Lithium-Polymer (3.7V)

  • Power supply: 5V

Operating Conditions:

  • Temperature range: -10°C to +40°C

Adjustments:

  • Slow-motion azimuth adjustment: +/- 5°

Counterweight Details:

  • Counterweight bar diameter: 20mm

  • Counterweight rod length: 200mm

  • Counterweight included: 1 piece (1.35kg)

Connections:

  • Mount connection size: 3/8 inch

Tracking Details:

  • Tracking speeds: Solar, lunar, sidereal

  • Tracking modes: Equatorial tracking

Special Features:

  • RA axis tracking enabled.

  • DEC axis tracking enabled.

  • Built-in level for alignment.

Equipment:

  • Carry case: Not included.

  • Motor-powered functionality: Yes.

  • Tripod: Not included.

  • Power pack provided: Yes.

  • Pole finder: Not included.

Other Contents:

  • Without tripod.

General Information:

  • Color: Black-red design.

  • Series name: SkyHunter.

  • Dimensions (L x W x H): 30 x 25.5 x 12.5 cm.

  • Weight: 4000g

Type and Build:

  • Type: Mount system.

  • Build type: Equatorial design.
