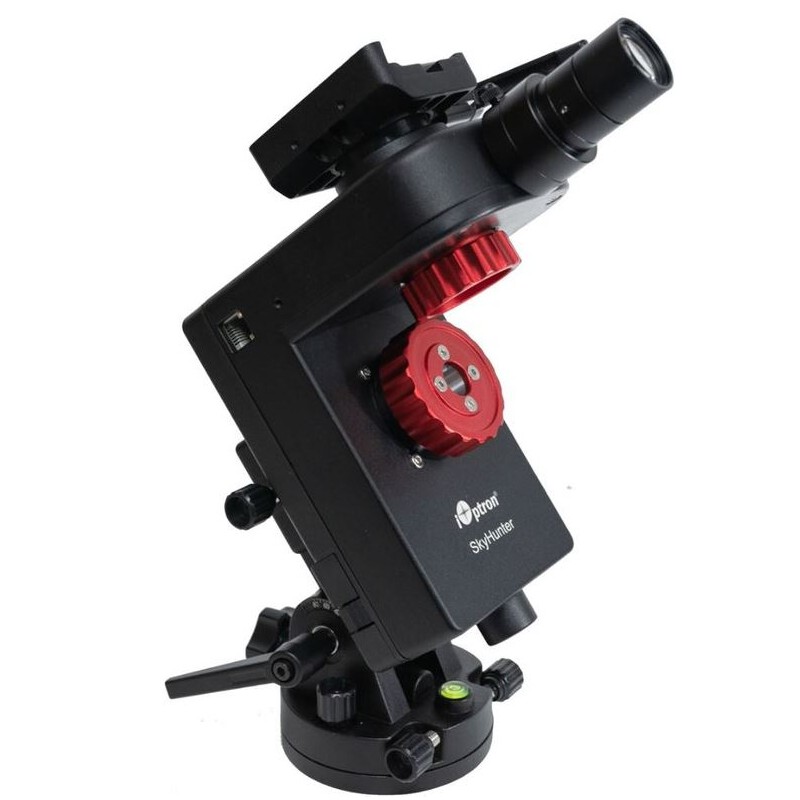

iOptron Mount SkyHunter EQ/AZ iPolar GoTo without tripod (77355)

iOptron has refined its earlier "cube" mount design into the SkyHunter series, setting a new standard for portable camera mounts. These mounts are lightweight, compact, easy to use, and packed with advanced technology.

3460.93 AED
Tax included

2813.77 AED net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

  • Compact and lightweight (photo)mount, perfect for traveling.

  • Load capacity of up to 5kg, ideal for small apochromatic telescopes like the William Optics RedCat or Sky-Watcher Evolux.

  • Includes a built-in battery with an option for external power supply.

  • Compatible with photo tripod attachment.

  • Equipped with servomotors featuring optical encoders for precise operation.

iOptron has refined its earlier "cube" mount design into the SkyHunter series, setting a new standard for portable camera mounts. These mounts are lightweight, compact, easy to use, and packed with advanced technology.

The SkyHunter mounts are available in three versions and can be fully controlled via a smartphone or tablet running iOS or Android. They also support ASCOM and INDI protocols. The built-in WiFi adapter allows control using ASCOM, iOptron Commander, or Sky Safari software. Additionally, the 3/8-inch connection makes it possible to attach the mount to any standard camera tripod if desired.

Built-in optical encoders and four tracking modes ensure precise tracking for use in both the northern and southern hemispheres.



Specifications:

Capacity:

  • Maximum load capacity: 5kg

  • Polar elevation adjustment range: 0° - 80°

  • Worm gear teeth (RA): 144

Motor Details:

  • Motor type: Servomotors

  • Axle bearings: Binary system

Battery Information:

  • Battery-powered: Yes

  • Battery life: Up to 10 hours

  • Battery type: Lithium-Polymer (3.7V)

  • Power supply: 5V

Operating Conditions:

  • Temperature range: -10°C to +40°C

Adjustments:

  • Slow-motion azimuth adjustment: +/- 5°

Counterweight Details:

  • Counterweight bar diameter: 20mm

  • Counterweight rod length: 200mm

  • Counterweight included: 1 piece (1.35kg)

Connections:

  • Mount connection size: 3/8 inch

Tracking Details:

  • Tracking speeds: Solar, lunar, sidereal

  • Tracking modes: Equatorial tracking

Special Features:

  • RA axis tracking enabled.

  • DEC axis tracking enabled.

  • Built-in level for alignment.

Equipment:

  • Carry case included.

  • Motor-powered functionality: Yes.

  • Tripod not included.

  • Power pack provided.

  • Pole finder included (iPolar).

General Information:

  • Color: Black-red design.

  • Series name: SkyHunter.

  • Dimensions (L x W x H): 30 x 25.5 x 12.5 cm.

  • Weight: 4000g

Type and Build:

  • Type: Mount system.

  • Build type: Equatorial design.
