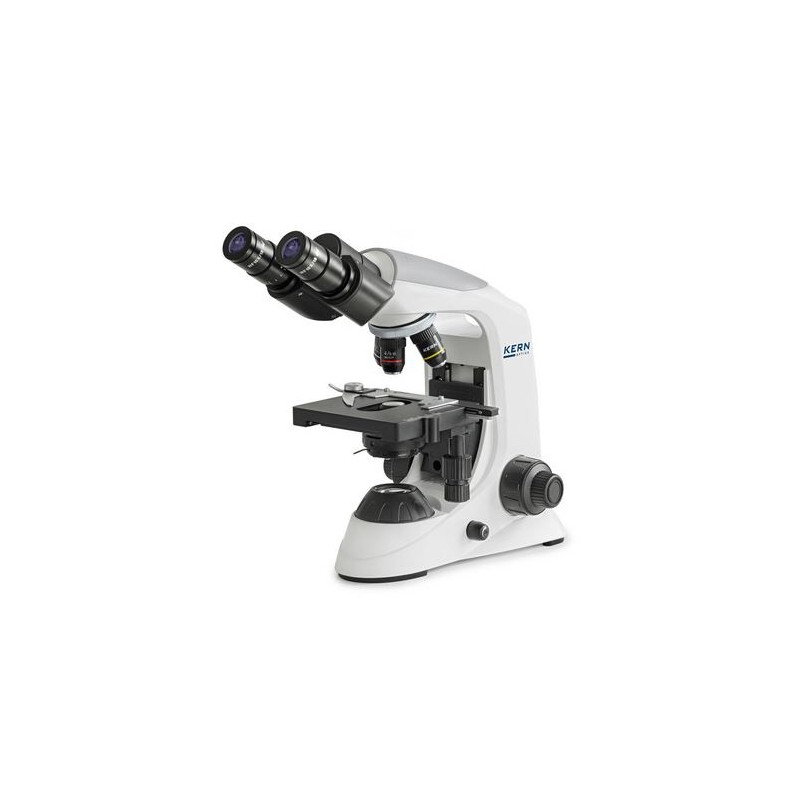

Kern microscope Bino Achromat 4/10/40/100, HWF10x18, 3W LED, OBE 132 (82866)

The KERN OBE-1 series is a collection of high-quality, fully-equipped compound microscopes designed for ease of use and ergonomic functionality. These microscopes feature a robust, continuously dimmable 3W LED light source that ensures optimal illumination and long service life. Certain models also support mobile use with rechargeable batteries. The height-adjustable 1.25 ABBE condenser with an aperture diaphragm provides excellent light concentration, while the mechanical stage allows for precise height adjustments using coarse and fine focusing knobs on both sides. The ergonomic coaxial drive enables rapid and efficient sample manipulation.

This series offers a variety of accessories, including different eyepieces, lenses, a simple polarization unit, and a dark field kit. A protective dust cover, eye cups, and multilingual user instructions are included with the microscope. For the trinocular version, a C-mount adapter is required to connect a camera. The OBE-1 series is also available in sets of 10 for group use.

Scope of Application:
Ideal for training, haematology, sediment investigation, and use in doctor's surgeries.

Applications/Samples:
Suitable for translucent, thin, high-contrast, and less complex samples such as plant tissue, colored cells, and parasites.

Technical Data:

• Optical system: Finite optical system (DIN)

• Lens revolving unit: 4-fold

• Viewing head: Siedentopf design, 30° inclined and 360° rotatable

• Dioptre compensation: One-sided (binocular and trinocular models)

• Dimensions (W×D×H): 320 × 180 × 365 mm

• Net weight: Approx. 4.988 kg

Optics:

• Eyepiece: 10x/18 (Widefield)

• Optical system: DIN (160 mm)

• Lens type: Achromatic

• Objectives:

  • Objective 2: 10×/0.25 W.D. 6.5 mm

  • Objective 3: 40×/0.65 (spring-loaded) W.D. 0.47 mm

  • Objective 4: 100×/1.25 oil (spring-loaded) W.D. 0.07 mm

• Magnification range: 40–1000x

• Condenser: Abbe 1.25 N.A., focus adjustable with iris diaphragm

Lighting and Power Supply:

• Lamp type: LED (3W)

• Brightness control: Yes

• Brightfield capability: Yes

Mechanics:

• Type of build: Binocular

• Viewing posture: 30° angled eyepiece, rotatable 360°

• Focusing mechanism: Coarse and fine movement

Additional Features:

• Rechargeable battery operation: Not specified for this model

• Dust cover bag: Included

• Filter holder: Included

General Information:

• Weight: Approx. 5500 g

• Width: 180 mm

• Length: 320 mm

• Height: 365 mm

Series Information:

• Series: OBE

Suitability:
Perfect for beginners and advanced users in education, hobbies, medicine, or secondary schools.

Miscellaneous Details:
Supplier product number: OBE 132
