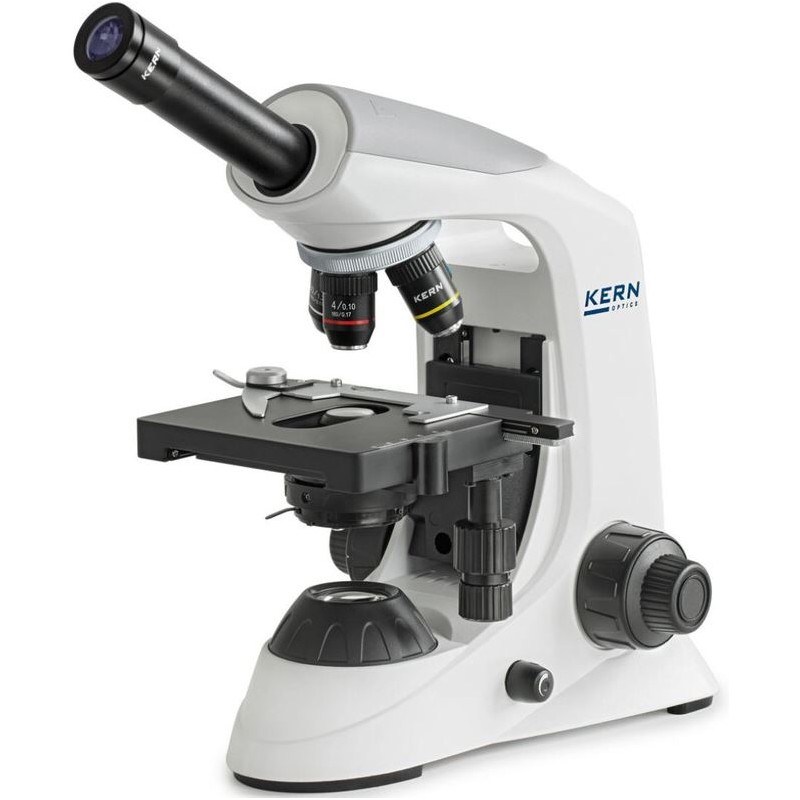

Kern Microscope Mono Achromat 4/10/40, WF10x18, 3W LED, OBE 101 (66306)

The KERN OBE-1 series offers a range of high-quality, fully-equipped compound microscopes that excel in ease of use and ergonomic design. These microscopes feature a powerful and dimmable 3W LED light source, providing optimal illumination and long service life. Certain models support mobile use with rechargeable batteries, making them versatile for various applications. The series includes a height-adjustable 1.25 ABBE condenser with an aperture diaphragm for precise light concentration, as well as a fully-equipped mechanical stage with coarse and fine focusing knobs on both sides. The ergonomic coaxial drive ensures smooth operation and rapid sample manipulation.

A wide selection of accessories is available, including different eyepieces, lenses, a polarization unit, and a dark field kit. Each microscope comes with a protective dust cover, eye cups, and multilingual user instructions. For the trinocular version, a C-mount adapter is required to connect a camera. The OBE-1 series is also available in sets of 10 for group use.

Scope of Application:
Ideal for training, haematology, sediment investigation, and use in doctor's surgeries.

Applications/Samples:
Suitable for translucent, thin, high-contrast, and less complex samples such as plant tissue, colored cells, and parasites.

Technical Data:

• Optical system: Finite optical system (DIN)

• Lens revolving unit: 4-fold

• Viewing head: Siedentopf design, 30° inclined and 360° rotatable

• Dioptre compensation: One-sided (binocular and trinocular models)

• Dimensions (W×D×H): 320 × 180 × 365 mm

• Net weight: Approx. 4.988 kg

Optics:

• Eyepiece: 10x/18 (Widefield)

• Optical system: DIN (160 mm)

• Lens type: Achromatic

• Objectives:

  • Objective 2: 10×/0.25 W.D. 6.5 mm

  • Objective 3: 40×/0.65 (spring-loaded) W.D. 0.47 mm

• Magnification range: 40–400x (40x, 100x, 400x)

• Condenser: Abbe 1.25 N.A., focus adjustable with iris diaphragm

Lighting and Power Supply:

• Lamp type: LED (3W)

• Brightness control: Yes

• Brightfield capability: Yes

Mechanics:

• Type of build: Monocular

• Viewing posture: 30° angled eyepiece, rotatable 360°

• Focusing mechanism: Coarse and fine movement

Additional Features:

• Rechargeable battery operation: Not specified for this model

• Dust cover bag: Included

• Filter holder: Included

General Information:

• Weight: Approx. 5500 g

• Width: 180 mm

• Length: 320 mm

• Height: 365 mm

Series Information:

• Series: OBE

Suitability:
Perfect for beginners and advanced users in education, hobbies, or medicine.

Miscellaneous Details:
Supplier product number: OBE 101
