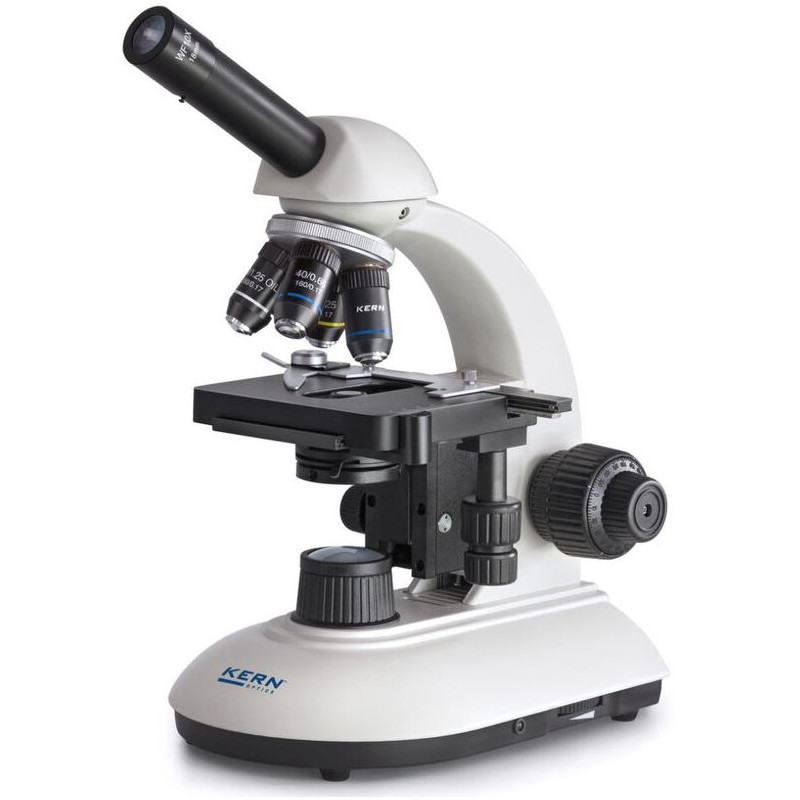

Kern Microscope Mono Achromat 4/10/40/100, WF10x18, 3W LED, OBE 111 (66318)

The KERN OBE-1 series is a collection of high-quality, fully-equipped compound microscopes that are designed for ease of use and ergonomic functionality. These microscopes feature a powerful, dimmable 3W LED light source that ensures optimal illumination and long service life. Some models also support mobile use with rechargeable batteries, making them versatile for various applications. The height-adjustable 1.25 ABBE condenser with an aperture diaphragm ensures precise light concentration, while the mechanical stage allows for smooth height adjustments using coarse and fine focusing knobs on both sides. The ergonomic coaxial drive enables efficient and rapid sample manipulation.

A wide range of accessories is available, including different eyepieces, lenses, a polarization unit, and a dark field kit. Each microscope comes with a protective dust cover, eye cups, and multilingual user instructions. For the trinocular version, a C-mount adapter is required to connect a camera. The OBE-1 series is also available in sets of 10 for group use.

Scope of Application:
These microscopes are ideal for training, haematology, sediment investigation, and use in doctor's surgeries.

Applications/Samples:
They are suitable for translucent, thin, high-contrast, and less complex samples such as plant tissue, colored cells, and parasites.

Technical Data:

• Optical system: Finite optical system (DIN)

• Lens revolving unit: 4-fold

• Viewing head: Siedentopf design, 30° inclined and 360° rotatable

• Dioptre compensation: One-sided (binocular and trinocular models)

• Dimensions (W×D×H): 320 × 180 × 365 mm

• Net weight: Approx. 4.988 kg

Optics:

• Eyepiece: 10x/18 (Widefield)

• Optical system: DIN (160 mm)

• Lens type: Achromatic

• Objectives:

  • Objective 2: 10×/0.25 W.D. 6.5 mm

  • Objective 3: 40×/0.65 (spring-loaded) W.D. 0.47 mm

  • Objective 4: 100×/1.25 oil (spring-loaded) W.D. 0.07 mm

• Magnification range: 40–1000x

Lighting and Condenser:

• Condenser: Abbe 1.25 N.A., focus adjustable with iris diaphragm

• Lamp type: LED (3W)

Power Supply and Brightness Control:

• Power supply: EU-compatible

• Brightness control: Yes

• Brightfield capability: Yes

Mechanics:

• Type of build: Monocular

• Viewing posture: 30° angled eyepiece, rotatable 360°

• Focusing mechanism: Coarse and fine movement

Additional Features:

• Rechargeable battery operation: Not specified for this model

• Dust cover bag: Included

• Filter holder: Included

General Information:

• Weight: Approx. 5500 g

• Width: 180 mm

• Length: 320 mm

• Height: 365 mm

Series Information:
This microscope belongs to the OBE series.

Suitability:
It is perfect for beginners and advanced users in education, hobbies, or medicine.

Miscellaneous Details:
Supplier product number: OBE 111
