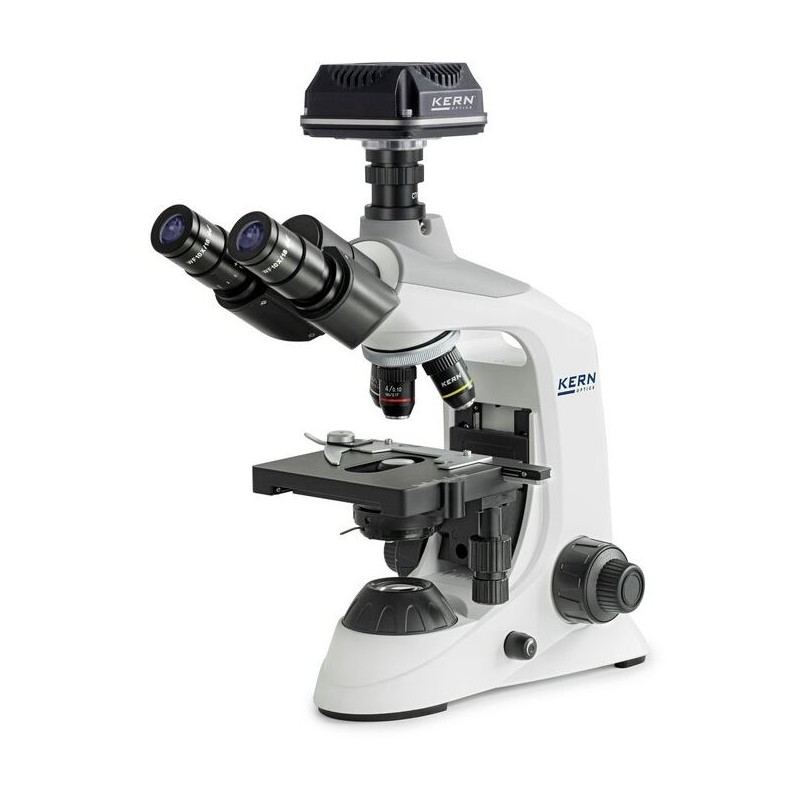

Kern Digital microscope set, OBE 124C825, HF, 1.25 Abbe Condensor, fixed, USB 2.0, 40-400x, Dl, 3W LED, DIN, 5.1 MP (83002)

The Kern Digital Microscope Set OBE 124C825 is a versatile and high-quality trinocular microscope designed for educational, hobbyist, and medical applications. It features a 1.25 Abbe condenser and a powerful 3W LED light source, providing excellent illumination for various samples. With magnification capabilities ranging from 40x to 400x and a 5.1 MP CMOS camera, this microscope is ideal for detailed observations and documentation.

Field of Application:
This microscope is suitable for education, hobbies, medicine, and various levels of academic institutions, including universities and secondary schools. It is also applicable in technical training, naturalist studies, parasite analysis, and veterinary medicine.

Specifications:

Optics:

• Lens type: Achromatic (DIN 160 mm)

• Objectives:

  • Objective 1: 4x

  • Objective 2: 10x

  • Objective 3: 40x

• Colour correction: Achromatic

• Condenser: Abbe

Capacity:

• Type of build: Trinocular

• Field of view value: 18

• Transmitted light: 3W LED

• Incident light: No

• Connection: USB 2.0

Mechanics:

• Revolver: 4-position

Camera Specifications:

• Sensor type: CMOS

• Chip size: 1/2.5 inch

• Frame rate: 6.8 - 55 fps

• Colour camera: Yes

• Megapixels: 5.1

General Information:

• Height: 390 mm

• Length: 150 mm

• Width: 360 mm

• Series: OBE

Contrast Methods:

• Brightfield capability: Yes

• Dark field capability: Optional

• Polarization capability: Optional

Miscellaneous Details:
Supplier product number: OBE 124C825
