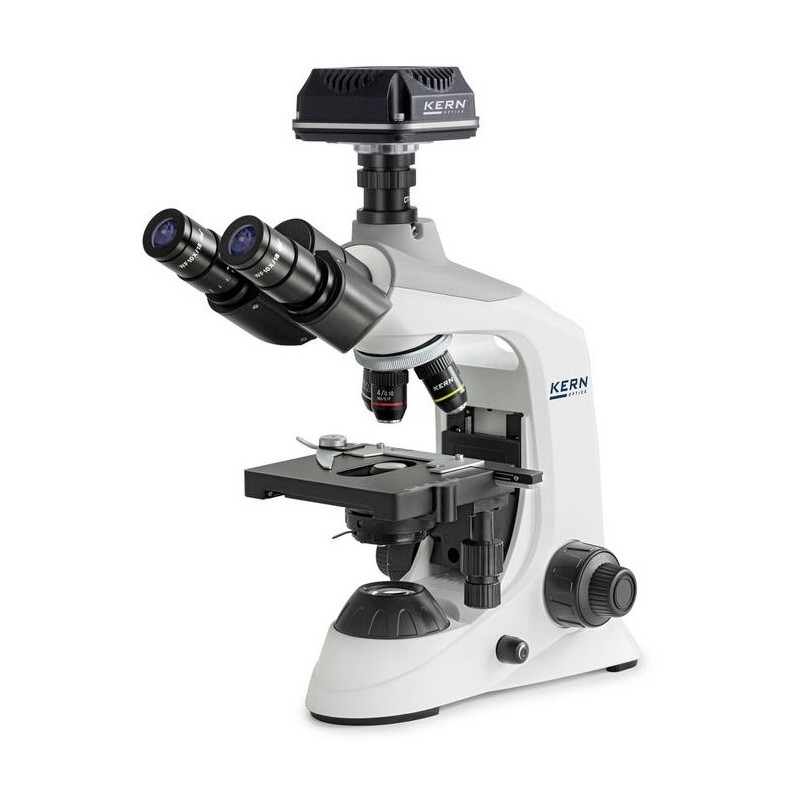

Kern Digital microscope sets,OBE 134C825, HF, 1.25 Abbe Condensor, fixed, USB 2.0, 40x-1000x, DIN, Dl, 3W LED, 5.1 MP (83005)

The Kern Digital Microscope Set OBE 134C825 is a versatile trinocular microscope designed for detailed observations in education, medicine, and hobbyist applications. With magnification capabilities ranging from 40x to 1000x, it is ideal for examining various samples with precision. The microscope features a 1.25 Abbe condenser, a bright 3W LED light source, and achromatic lenses for accurate color correction. Equipped with a 5.1 MP CMOS camera and USB 2.0 connectivity, it allows for efficient image capture and integration with compatible systems.

Field of Application:
This microscope is suitable for education, hobbies, medicine, universities, secondary schools, high schools, technical training, naturalist studies, parasite analysis, and veterinary medicine.

Specifications:

Optics:

• Lens type: Achromatic (DIN 160 mm)

• Objectives:

  • Objective 1: 4x

  • Objective 2: 10x

  • Objective 3: 40x

  • Objective 4: 100x

• Colour correction: Achromatic

• Condenser: Abbe

Capacity:

• Type of build: Trinocular

• Field of view value: 18

• Transmitted light: 3W LED

• Incident light: No

• Connection: USB 2.0

Mechanics:

• Revolver: 4-position

Camera Specifications:

• Sensor type: CMOS

• Chip size: 1/2.5 inch

• Frame rate: 6.8 - 55 fps

• Colour camera: Yes

• Megapixels: 5.1

General Information:

• Height: 390 mm

• Length: 150 mm

• Width: 360 mm

• Series: OBE

Contrast Methods:

• Brightfield capability: Yes

• Dark field capability: Optional

• Polarization capability: Optional

Miscellaneous Details:
Supplier product number: OBE 134C825
