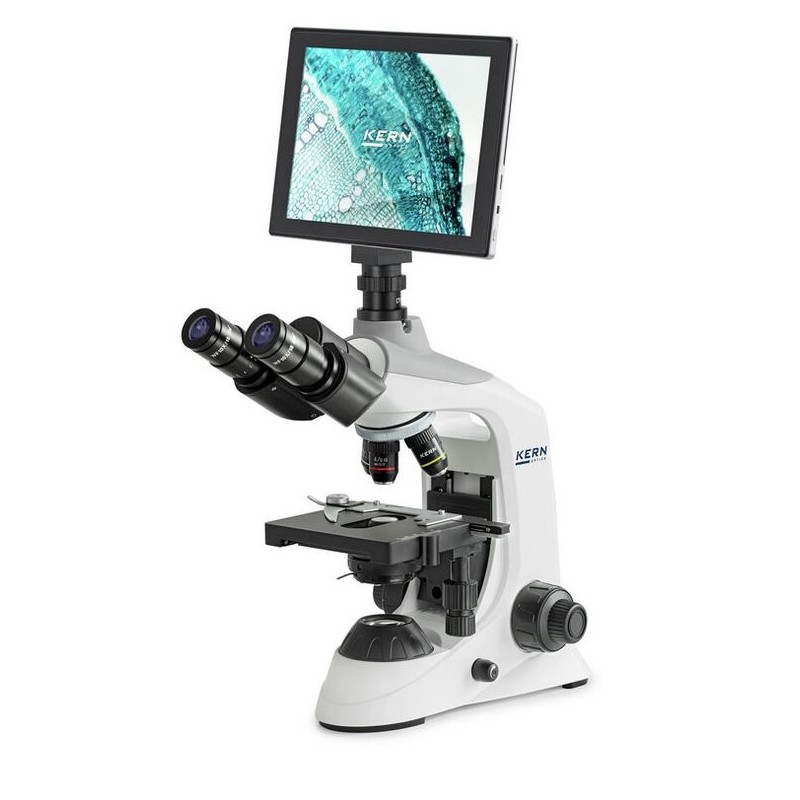

Kern Digital microscope sets, OBE 134T241, 1.25 Abbe Condensor, fixed, USB 2.0, 40-1000x, 3W LED, 5 MP, Tablet (83006)

The Kern Digital Microscope Set OBE 134T241 is a high-quality trinocular microscope designed for educational, medical, and hobbyist applications. With magnification ranging from 40x to 1000x and an integrated tablet for enhanced functionality, it is ideal for detailed observations and documentation. The microscope features a 1.25 Abbe condenser, a bright 3W LED light source, and achromatic lenses for accurate color correction. Its 5 MP CMOS camera with USB 2.0 connectivity allows for high-resolution image and video capture, making it suitable for various professional and academic uses.

Field of Application:
This microscope is suitable for education, hobbies, medicine, universities, high schools, secondary schools, technical training, naturalist studies, parasite analysis, and veterinary medicine.

Specifications:

Optics:

• Lens type: Achromatic (DIN 160 mm)

• Objectives:

  • Objective 1: 4x

  • Objective 2: 10x

  • Objective 3: 40x

  • Objective 4: 100x

• Colour correction: Achromatic

• Condenser: Abbe

Capacity:

• Type of build: Trinocular

• Field of view value: 18

• Transmitted light: 3W LED

• Incident light: No

• Connection: USB 2.0

Mechanics:

• Revolver: 4-position

Camera Specifications:

• Sensor type: CMOS

• Chip size: 1/2.5 inch

• Megapixels: 5 MP

• Frame rate: 30 fps

• Colour camera: Yes

• Photo resolution (pixels): 2048 x 1536

• Video resolution (pixels): 2048 x 1536

General Information:

• Height: 540 mm

• Width: 360 mm

• Length: 235 mm

• Series: OBE

Contrast Methods:

• Brightfield capability: Yes

• Dark field capability: Optional

• Polarization capability: Optional

Miscellaneous Details:
Supplier product number: OBE 134T241
