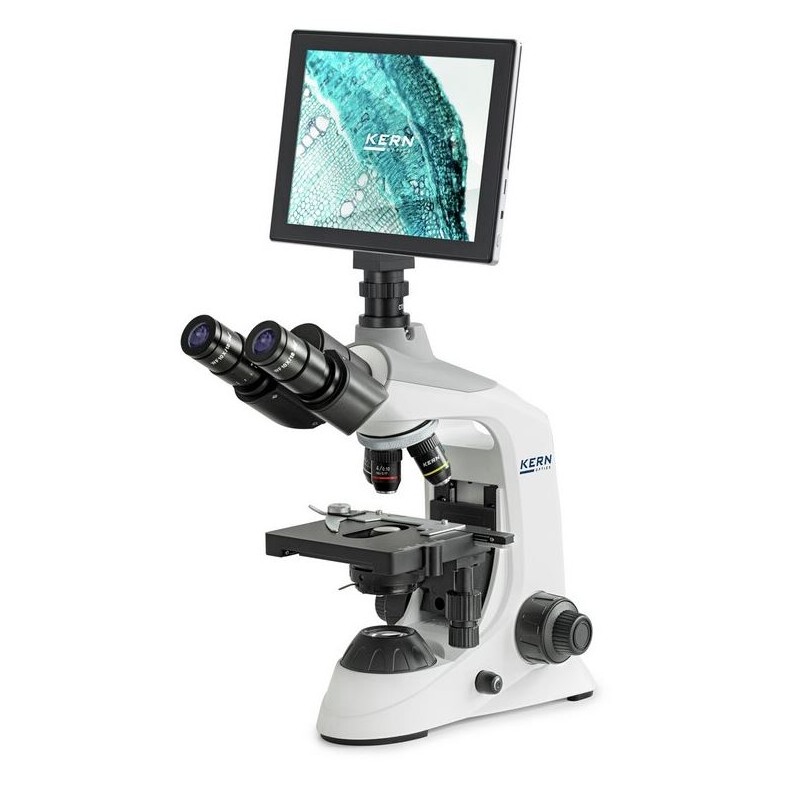

Kern Microscope Digital set, OBE 124T241, HF, 1.25 Abbe Condensor, fixed, USB 2.0, 40-400x, Dl, 3W LED, 5 MP, Tablet (83004)

The Kern Digital Microscope Set OBE 124T241 is a trinocular microscope designed for educational, medical, and hobbyist applications. With magnification ranging from 40x to 400x and an integrated tablet for enhanced functionality, it is ideal for observing and documenting various samples. The microscope features a 1.25 Abbe condenser, a 3W LED light source for bright illumination, and achromatic lenses for accurate color correction. Its 5 MP CMOS camera with USB 2.0 connectivity ensures high-resolution image and video capture, making it suitable for professional and academic use.

Field of Application:
This microscope is suitable for education, hobbies, medicine, universities, secondary schools, technical training, naturalist studies, parasite analysis, and veterinary medicine.

Specifications:

Optics:

• Lens type: Achromatic (DIN 160 mm)

• Objectives:

  • Objective 1: 4x

  • Objective 2: 10x

  • Objective 3: 40x

• Colour correction: Achromatic

• Condenser: Abbe

Capacity:

• Type of build: Trinocular

• Field of view value: 18

• Transmitted light: 3W LED

• Incident light: No

Mechanics:

• Revolver: 4-position

Camera Specifications:

• Sensor type: CMOS

• Chip size: 1/2.8 inch

• Megapixels: 5 MP

• Frame rate: 30 fps

• Colour camera: Yes

• Photo resolution (pixels): 2048 x 1536

• Video resolution (pixels): 2048 x 1536

General Information:

• Height: 540 mm

• Width: 360 mm

• Length: 235 mm

• Series: OBE

Contrast Methods:

• Brightfield capability: Yes

• Dark field capability: Optional

• Polarization capability: Optional

Miscellaneous Details:
Supplier product number: OBE 124T241
