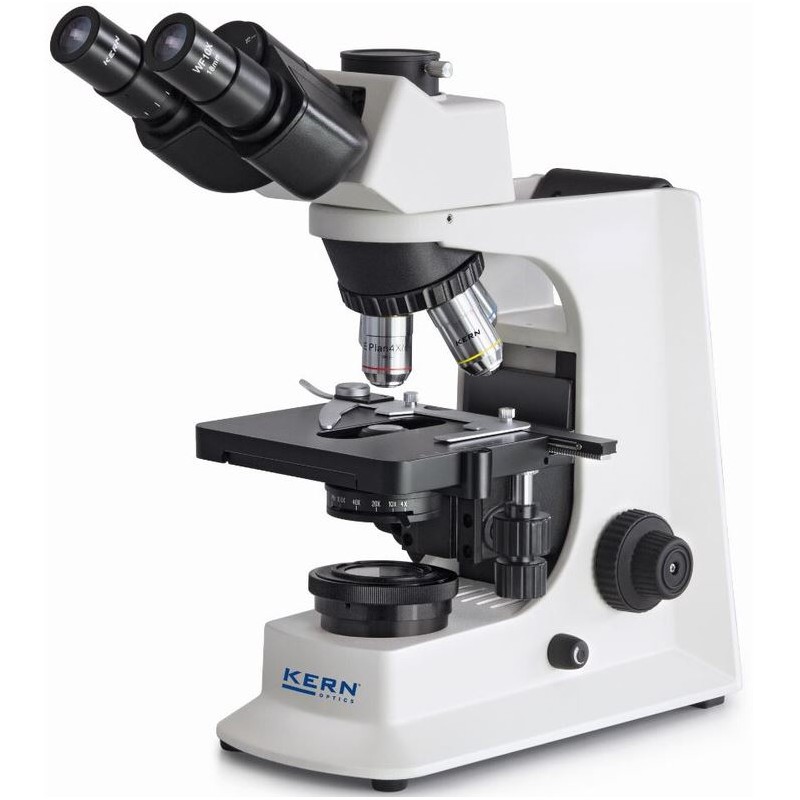

Kern Microscope Trino Plan 4/10/40/100, WF10x18, 20W Hal, OBF 132 (66338)

The KERN OBF-1 series offers excellent, stable laboratory microscopes designed for common routine applications. These microscopes feature a robust, precisely adjustable mechanism as their central feature. Users can choose between models with strong, continuously dimmable 3W LED or 20W halogen illumination (Philips), depending on their specific needs.

Key Features:

• Condenser: Fixed, pre-centred, and focusable 1.25 ABBE condenser with aperture and field diaphragms for simplified Koehler illumination

• Mechanical Stage: Large table with specimen holder for up to two samples, featuring coaxial coarse and fine focusing knobs on both sides

• Accessories: Wide range of eyepieces, objectives, colour filters, darkfield condenser, and simple polarising unit available

• Included Items: Protective dust cover, eye cups, and multi-lingual user instructions

Note: A C-mount adapter is required for camera connection on the trinocular version.

Applications:
Suitable for haematology, urology, gynaecology, dermatology, pathology, microbiology, parasitology, immunology, oncology, entomology, veterinary science, water analysis, and breweries.

Sample Types:
Ideal for translucent, thin, low-contrast, and challenging samples such as living mammal cells, bacteria, and tissue.

Specifications:

Optics:

• Eyepiece: 10x/18 (Widefield)

• Optical System: DIN (160mm)

• Lens Type: Plan, achromatic

• Objective 4: 100x/1.25 oil (spring-loaded) W.D. 0.07 mm

• Magnification Range: 40-1000x

• Condenser: Abbe 1.25 N.A., focus adjustable, with iris diaphragm

Illumination:

• Lamp Type: Halogen

• Power Supply: EU-compatible

• Brightness Control: Yes

Mechanics:

• Type of Build: Trinocular

• Viewing Posture: 30° angled eyepiece, 360° rotatable

• Focusing: Coarse and fine movement

• Special Features: Filter holder, dust cover bag included

General Information:

• Weight: 6688 g

• Dimensions (W x L x H): 395 x 200 x 380 mm

• Series: OBF

Suitability:

• Advanced users: Yes

• Field of Application: Medicine

Product Number: OBF 132
