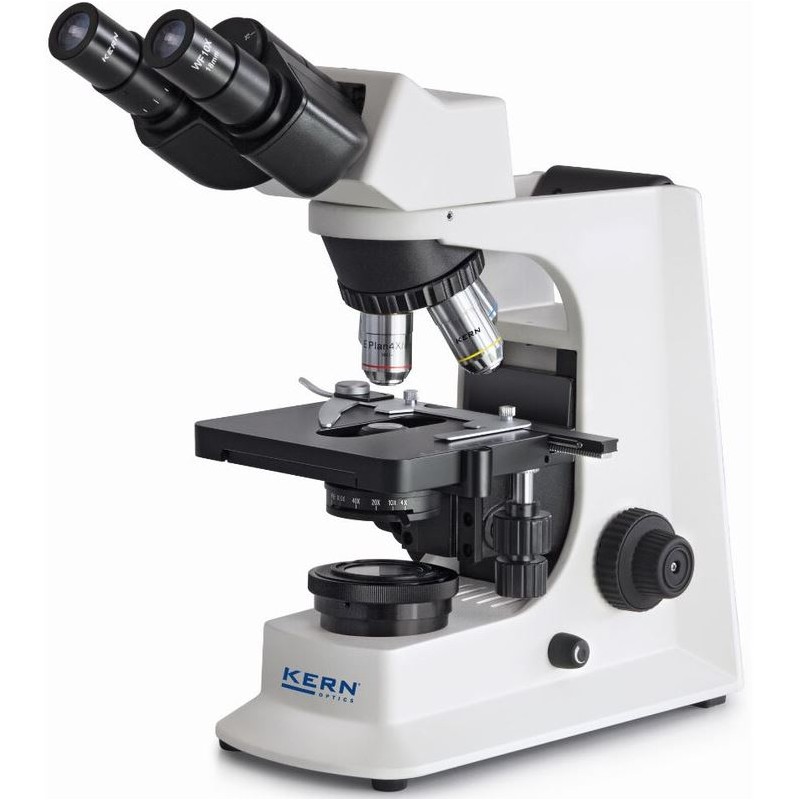

Kern Microscope Bino Inf E-Plan 4/10/40/100, WF10x20, 3W LED, OBL 127 (66347)

The OBL-1 series is designed for demanding users and stands out due to its infinity optical system, making it ideal for transmitted illumination applications. Its robust and ergonomic stand base ensures safe and comfortable operation. Depending on your needs, the series offers models with either strong, continuously dimmable 3W LED or 20W halogen illumination (Philips). The fixed, pre-centered, and focusable 1.25 Abbe condenser with aperture diaphragm and field diaphragm provides simplified Koehler illumination without requiring center adjustments.

The large mechanical stage table can hold up to two samples simultaneously and is easy to focus using coaxial coarse and fine focusing knobs on both sides. A wide range of accessories is available, including eyepieces, objectives, color filters, darkfield condensers, simple polarizing units, phase contrast kits, and fluorescence units (HBO or LED). Each microscope comes with a protective dust cover, eye cups, and multilingual user instructions. For the trinocular version, a C-mount adapter is required to connect a camera.

Scope of Application:
This series is suitable for haematology, urology, gynaecology, dermatology, pathology, microbiology, parasitology, immunology, oncology, entomology, veterinary science, sewage treatment plants, water analysis, and breweries.

Applications/Samples:
Ideal for translucent, thin, low-contrast samples such as living mammal cells, bacteria, and tissue.

Specifications:

Optics:

• Eyepiece: 10x/20 (Widefield)

• Optical system: Infinity

• Lens type: Plan apochromatic

• Magnification range: 40–1000x

• Condenser: Abbe 1.25 N.A., focus adjustable with iris diaphragm

Illumination:

• Lamp type: LED (3W)

• Power supply: EU-compatible

• Brightness control: Yes

• Brightfield capability: Yes

Mechanics:

• Type of build: Binocular

• Viewing posture: 30° angled eyepiece, rotatable 360°

• Focusing mechanism: Coarse and fine movement

Additional Features:

• Rechargeable battery operation: Not specified for this model

• Dust cover bag: Included

• Filter holder: Included

General Information:

• Weight: 6688 g

• Dimensions (W x L x H): 395 x 200 x 380 mm

• Series: OBL

Suitability:
Perfect for advanced users in medicine or professional laboratory work.
