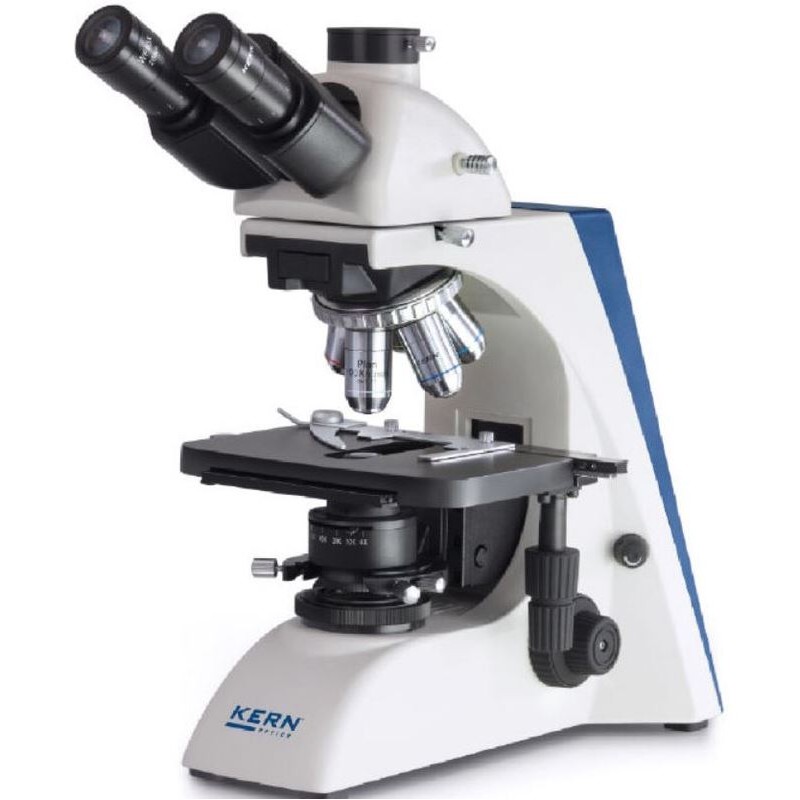

Kern Microscope Trino Inf Plan 4/10/20/40/100, WF10x20, 3W LED, OBN 135 (66362)

The OBN series is recognized for its exceptional quality and ergonomic design, making it ideal for professional users. Its modular components allow for individual customization to meet specific application needs. Users can choose between models with strong, continuously dimmable 3W LED or 20W halogen illumination (Philips). The halogen variant is pre-configured as a phase contrast microscope, featuring a professional quintuple condenser wheel, phase contrast condenser, and Infinity Plan phase contrast objectives, providing a fully-equipped solution for advanced contrast procedures.

This series includes professional Koehler illumination with an adjustable field diaphragm and a height-adjustable, centerable 1.25 Abbe condenser with an adjustable aperture diaphragm. The large mechanical stage table, combined with ergonomic coaxial coarse and fine focusing knobs on both sides, ensures precise and rapid sample adjustments. A wide range of modular accessories is available, including swing-out condensers, eyepieces, objectives, color filters, phase contrast units, darkfield condensers, polarizing units, and fluorescence systems. Each microscope comes with a centering eyepiece for phase contrast adjustment, protective dust cover, eye cups, and multilingual user instructions. A C-mount adapter is required to connect a camera and can be selected from the model outfit list.

Scope of Application:
Suitable for haematology, urology, gynaecology, dermatology, pathology, microbiology, parasitology, immunology, oncology, entomology, veterinary science, sewage treatment plants, water analysis, and breweries.

Applications/Samples:
Ideal for translucent, thin, low-contrast samples such as living mammal cells, bacteria, and tissue.

Specifications:

Optics:

• Eyepiece: 10x/20 (Widefield)

• Optical system: Infinity

• Lens type: Plan achromatic

• Objectives:

  • Objective 2: 10×/0.25 W.D. 4.64 mm

  • Objective 3: 20×/0.40 (spring-loaded) W.D. 2.41 mm

  • Objective 4: 40×/0.65 (spring-loaded) W.D. 0.65 mm

• Magnification range: 40–1000x

Lighting and Condenser:

• Condenser: Abbe 1.25 N.A., focus adjustable with iris diaphragm

• Lamp type: LED (3W)

Power Supply and Brightness Control:

• Power supply: EU-compatible

• Brightness control: Yes

• Brightfield capability: Yes

Mechanics:

• Type of build: Trinocular

• Viewing posture: 30° angled eyepiece, rotatable 360°

• Focusing mechanism: Coarse and fine movement

Additional Features:

• Rechargeable battery operation: Not specified for this model

• Dust cover bag: Included

• Filter holder: Included

General Information:

• Weight: Approx. 8983 g

• Dimensions (W x L x H): 390 x 200 x 400 mm

• Series: OBN

Suitability and Applications:
Perfect for advanced users in medicine or laboratory work.

Miscellaneous Details:
Supplier product number: OBN 135
