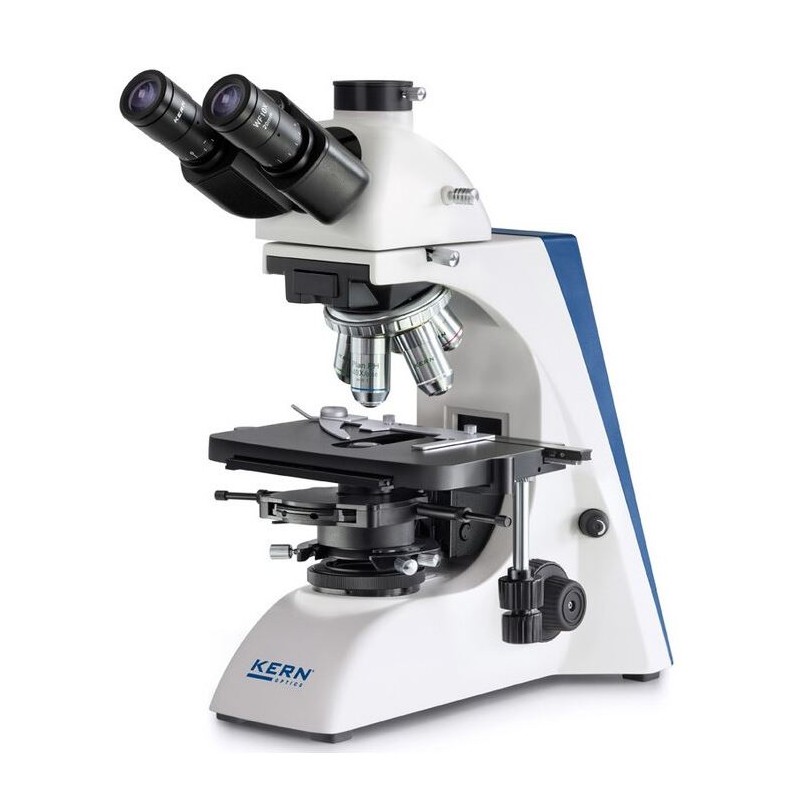

Kern Microscope OBN 159, PH, 1.25 Abbe Condensor, infinity, plan, 4x-100x, Dl, 3W LED (83009)

The Kern Microscope OBN 159 is a high-quality trinocular microscope designed for advanced applications, particularly phase contrast techniques. It features an infinity optical system and plan optics, ensuring sharp and distortion-free imaging across the entire field of view. With magnification ranging from 4x to 100x and a PH-Universal 1.25 Abbe condenser, this microscope is ideal for observing challenging samples with enhanced contrast. The 3W LED illumination provides consistent and bright lighting for transmitted light applications.

Specifications:

Optics:

• Optical system: Infinity

• Objectives:

  • Objective 1: 4x

  • Objective 2: PH 10x

  • Objective 3: PH 20x

  • Objective 4: PH 40x

  • Objective 5: PH 100x

• Field curvature: Plan

• Condenser: PH-Universal, N.A. 1.25

Capacity:

• Type of build: Trinocular

• Field of view value: 20

• Transmitted light: 3W LED

Mechanics:

• Revolver: 5-position

General Information:

• Height: 400 mm

• Length: 200 mm

• Width: 390 mm

• Series: OBN

Miscellaneous Details:
Supplier product number: OBN 159
