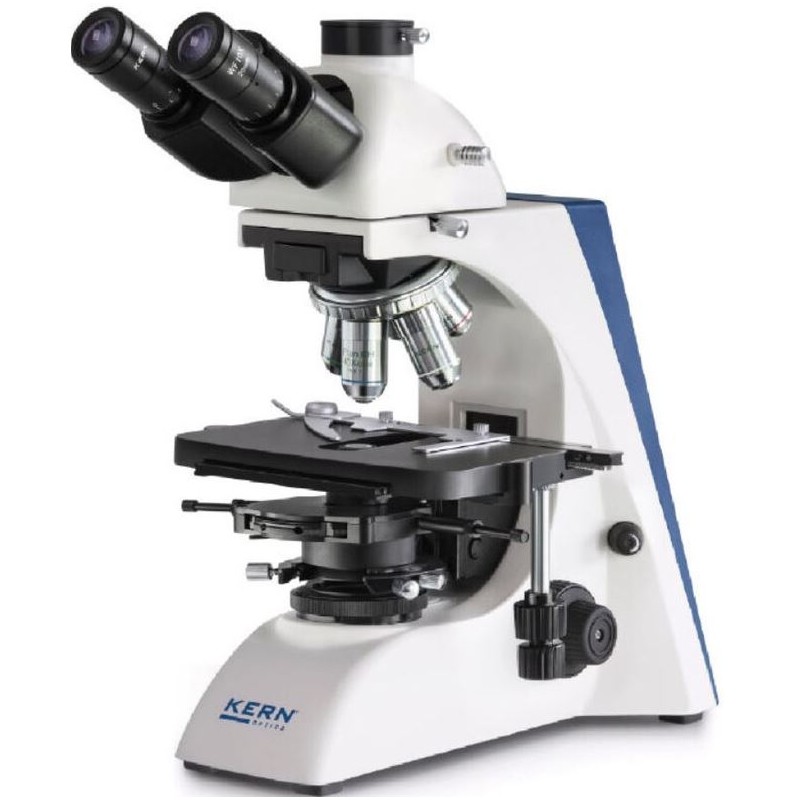

Kern Microscope Trino InfPlan 4-InfPlanPH 10/20/40/100, WF10x20, 20W Hal, OBN 158 (66369)

The OBN series is renowned for its exceptional quality, ergonomic design, and modular flexibility, making it ideal for professional users. It offers customizable options with models featuring either continuously dimmable 3W LED or 20W halogen illumination (Philips). The halogen variant is pre-configured as a phase contrast microscope, equipped with a professional quintuple condenser wheel, phase contrast condenser, and Infinity Plan phase contrast objectives. This ensures superior performance for advanced contrast procedures. The series also includes professional Koehler illumination with an adjustable field diaphragm and a height-adjustable, centerable 1.25 Abbe condenser with an adjustable aperture diaphragm.

The large mechanical stage table, combined with ergonomic coaxial coarse and fine focusing knobs on both sides, allows for precise and rapid sample adjustments. A wide range of modular accessories is available, including swing-out condensers, eyepieces, objectives, color filters, phase contrast units, darkfield condensers, polarizing units, and fluorescence systems. Each microscope comes with a centering eyepiece for phase contrast adjustment, a protective dust cover, eye cups, and multilingual user instructions. A C-mount adapter is required to connect a camera and can be selected from the model outfit list.

Scope of Application:
This microscope is suitable for haematology, urology, gynaecology, dermatology, pathology, microbiology, parasitology, immunology, oncology, entomology, veterinary science, sewage treatment plants, water analysis, and breweries.

Applications/Samples:
Ideal for translucent, thin, low-contrast samples such as living mammal cells, bacteria, and tissue.

Specifications:

Optics:

• Eyepiece: 10x/20 (Widefield)

• Optical system: Infinity

• Lens type: Plan achromatic

• Objectives:

  • Objective 2: 10x PH Plan

  • Objective 3: 20x PH Plan

  • Objective 4: 40x PH Plan

  • Objective 5: 100x PH Plan

• Magnification range: 40–1000x

Condenser:
Complete phase contrast set including:

• Plan achromatic PH lenses (10x, 20x, 40x, and 100x)

• Phase condenser N.A. 1.25

• Four matching phase apertures

• Telescopic eyepiece for centering

Illumination:

• Lamp type: Halogen

• Power supply: EU-compatible

Capacity:

• Brightness control: Yes

• Brightfield capability: Yes

• Contrast methods: Phase contrast

Mechanics:

• Type of build: Trinocular

• Viewing posture: 30° angled eyepiece, rotatable 360°

• Focusing mechanism: Coarse and fine movement

Additional Features:

• Rechargeable battery operation: Not specified for this model

• Dust cover bag: Included

• Filter holder: Included

General Information:

• Weight: Approx. 9983 g

• Dimensions (W x L x H): 390 x 200 x 400 mm

• Series: OBN

Suitability and Applications:
Perfect for advanced users in medicine and biology. Suitable for central laboratories as well as applications in botany, microbiology, cytology & pathology, and marine biology.

Miscellaneous Details:
Supplier product number: OBN 158
