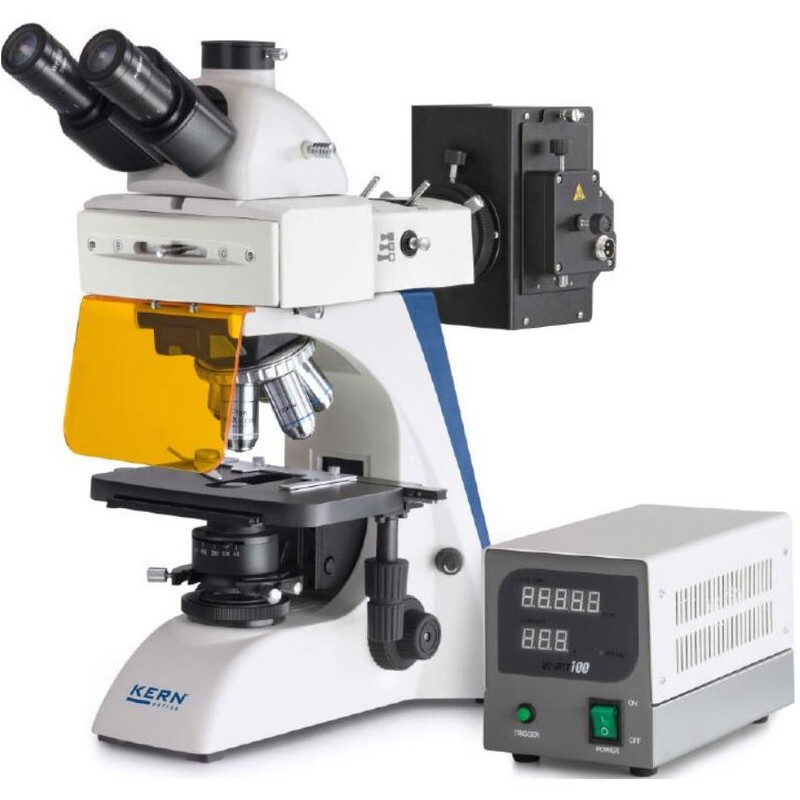

Kern Microscope Trino Inf Plan 4/10/20/40/100, WF10x20, 100W Hal FL (B/G/UV/V), OBN 148 (66368)

The fluorescence microscopes in the OBN series are built on the high quality and versatility that define this range. With an outstanding, stable design and high-quality optics, these microscopes set the standard for fluorescence microscopy in their class. The powerful, dimmable 20W halogen illumination unit (Philips) and a 100W Epi-fluorescence illumination unit (OBN 147/OBN 148) provide optimal illumination and excitation for fluorescence samples. Alternatively, the OBN 141 model offers a fluorescence microscope with a 3W LED transmitted illumination unit and a 3W LED Epi-fluorescence incident illumination unit.

This series features professional Koehler illumination with an adjustable field diaphragm and a height-adjustable, centerable 1.25 Abbe condenser with an adjustable aperture diaphragm. The large mechanical stage table, combined with ergonomic coaxial coarse and fine focusing knobs on both sides, ensures precise sample adjustments. The OBN 147/OBN 148 halogen models include a filter wheel with up to six fittings, pre-configured with B/G or B/G/UV/V fluorescence filters. The OBN 141 LED variant is equipped with a B/G fluorescence filter and a changeover slider for quick filter adjustments. Modular construction allows for easy integration of eyepieces, objectives, color filters, darkfield condensers, polarizing units, phase contrast units, and more.

Each microscope comes with a centering objective for fluorescence adjustment, protective dust cover, eye cups, and multilingual user instructions. A C-mount adapter is required to connect a camera and can be selected from the model outfit list.

Scope of Application:
Ideal for haematology, urology, gynaecology, dermatology, pathology, microbiology, parasitology, immunology, sewage treatment plants, oncology, entomology, veterinary science, water analysis, and breweries.

Applications:
Specially designed for translucent, thin, low-contrast samples such as immunofluorescence procedures (e.g., FISH or DAPI staining).

Specifications:

Optics:

• Eyepiece: 10x/20 (Widefield)

• Optical system: Infinity

• Lens type: Plan achromatic

• Objectives:

  • Objective 2: 10×/0.25 W.D. 4.64 mm

  • Objective 3: 20×/0.40 (spring-loaded) W.D. 2.41 mm

  • Objective 4: 40×/0.65 (spring-loaded) W.D. 0.65 mm

• Magnification range: 40–1000x

Lighting and Condenser:

• Condenser: Abbe 1.25 N.A., focus adjustable with iris diaphragm

• Lamp type: Halogen

Capacity:

• Fluorescence capability: Yes (Epi-fluorescence attachment with filter cassette)

• Brightness control: Yes

• Brightfield capability: Yes

• Contrast methods: Fluorescence

Mechanics:

• Type of build: Trinocular

• Viewing posture: 30° angled eyepiece, rotatable 360°

• Focusing mechanism: Coarse and fine movement

Additional Features:

• Rechargeable battery operation: Not specified for this model

• Dust cover bag: Included

• Filter holder: Included

General Information:

• Weight: Approx. 8983 g

• Dimensions (W x L x H): 390 x 200 x 400 mm

• Series: OBN

Suitability and Applications:
Perfect for advanced users in medicine and biology. Suitable for central laboratories as well as applications in botany, microbiology, cytology & pathology, and marine biology.

Miscellaneous Details:
Supplier product number: OBN 148
