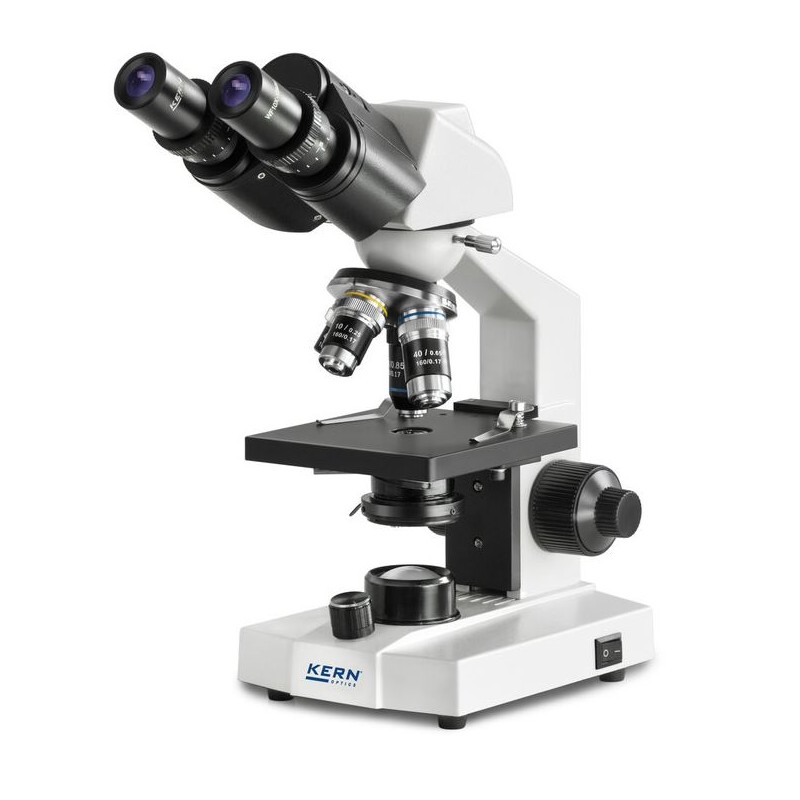

Kern Microscope Bino Achromat 4/10/40, WF10x18, 0,5W LED, recharge, OBS 104 (66374)

The KERN OBS-1 series is a reliable and straightforward range of school microscopes designed for ease of use with intuitive control elements. These microscopes feature an infinitely dimmable 0.5W LED light source, ensuring optimal illumination of samples and a long service life. They are also suitable for mobile use, thanks to the option of rechargeable batteries. The OBS 101 model includes a simple 0.65 condenser lens with a rotating aperture diaphragm disc for effective light concentration, while the OBS 104 and OBS 106 models are equipped with a height-adjustable 1.25 Abbe condenser with an aperture diaphragm for precise illumination.

All models include coarse and fine focusing knobs on both sides for easy object focusing. The OBS 106 model also features a mechanical angle table for rapid sample movement. A wide selection of eyepieces and objectives is available to customize the microscope further. This series is also offered in sets of 10 for group use.

Scope of Application:
Ideal for primary schools, secondary schools, training purposes, and hobby use.

Applications/Samples:
Suitable for translucent, thin, high-contrast, and less complex samples such as plant tissue, colored cells, and parasites.

Specifications:

Optics:

• Eyepiece: 10x/18 (Widefield)

• Optical system: DIN (160 mm)

• Lens type: Achromatic

• Objectives:

  • Objective 1: 4×/0.10 W.D. 18.0 mm

  • Objective 2: 10×/0.25 W.D. 7.0 mm

  • Objective 3: 40×/0.65 (spring-loaded) W.D. 0.53 mm

• Magnification range: 40–400x (40x, 100x, 400x)

Lighting and Condenser:

• Condenser: Abbe 1.25 N.A., focus adjustable with iris diaphragm

• Lamp type: LED (0.5W)

Capacity:

• Brightness control: Yes

• Brightfield capability: Yes

Mechanics:

• Type of build: Binocular

• Viewing posture: 45° angled eyepiece

• Focusing mechanism: Coarse and fine movement

Additional Features:

• Rechargeable battery operation: Yes

• Dust cover bag: Included

• Filter holder: Included

General Information:

• Weight: Approx. 3000 g

• Dimensions (W x L x H): 130 x 300 x 310 mm

• Series: OBS

Suitability and Applications:
Perfect for beginners in education or hobby use.

Miscellaneous Details:
Supplier product number: OBS 104
