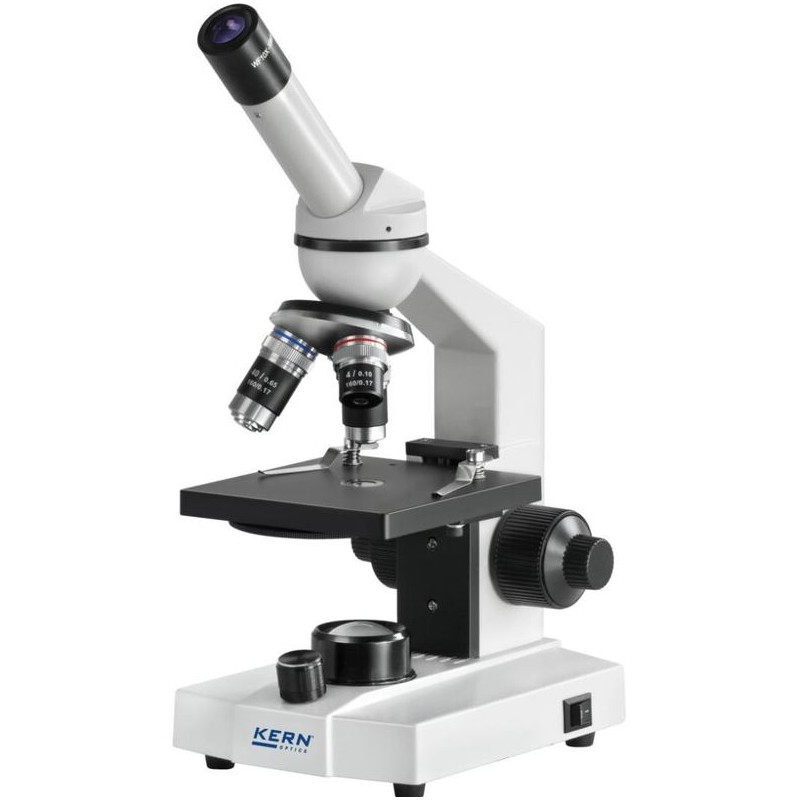

Kern Microscope Mono Achromat 4/10/40, WF10x18, 0,5W LED, OBS 112 (66380)

The KERN OBS-1 series is a reliable and straightforward range of school microscopes designed for ease of use with intuitive control elements. These microscopes feature an infinitely dimmable 0.5W LED light source, ensuring optimal sample illumination and long service life. They are suitable for mobile use, thanks to the option of rechargeable batteries. The OBS 101 model includes a simple 0.65 condenser lens with a rotating aperture diaphragm disc for effective light concentration, while other models such as the OBS 104 and OBS 106 offer advanced features like height-adjustable condensers.

All models are equipped with coarse and fine focusing knobs on both sides for precise object focusing. A wide selection of eyepieces and objectives is available for customization. This series is also offered in sets of 10 for group use.

Scope of Application:
Perfect for primary schools, secondary schools, training purposes, and hobby use.

Applications/Samples:
Suitable for translucent, thin, high-contrast, and less complex samples such as plant tissue, colored cells, and parasites.

Specifications:

Optics:

• Eyepiece: 10x/18 (Widefield)

• Optical system: DIN (160 mm)

• Lens type: Achromatic

• Objectives:

  • Objective 1: 4×/0.10 W.D. 18.0 mm

  • Objective 2: 10×/0.25 W.D. 7.0 mm

  • Objective 3: 40×/0.65 (spring-loaded) W.D. 0.53 mm

• Magnification range: 40–400x (40x, 100x, 400x)

Lighting and Condenser:

• Condenser: N.A. 0.65, fixed

• Lamp type: LED (0.5W)

Capacity:

• Brightness control: Yes

• Brightfield capability: Yes

Mechanics:

• Type of build: Monocular

• Viewing posture: 45° angled eyepiece

• Focusing mechanism: Coarse and fine movement

Additional Features:

• Rechargeable battery operation: Not specified for this model

• Dust cover bag: Included

• Filter holder: Included

General Information:

• Weight: Approx. 3000 g

• Dimensions (W x L x H): 130 x 300 x 310 mm

• Series: OBS

Suitability and Applications:
Ideal for beginners in education or hobby use.

Miscellaneous Details:
Supplier product number: OBS 112
