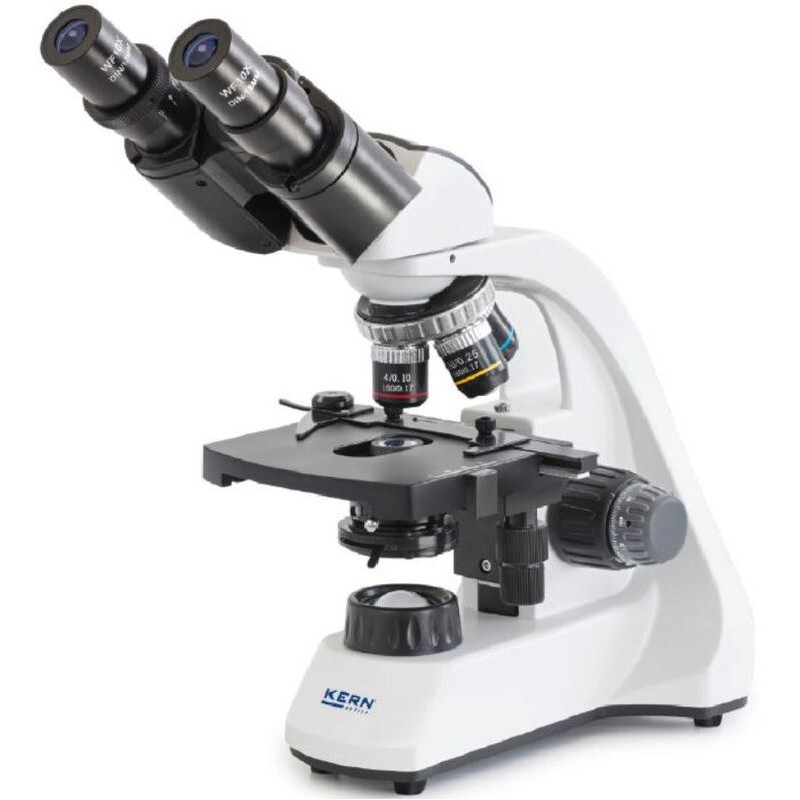

Kern Microscope Bino Achromat 4/10/40, WF10x18, 1W LED, OBT 104 (66388)

The Kern Microscope Bino Achromat OBT 104 is a high-quality binocular microscope designed for beginners in education and hobby use. It features an achromatic optical system with magnification ranging from 40x to 1000x, making it suitable for observing a variety of samples. The 1W LED illumination provides bright and consistent lighting, while the rechargeable battery option ensures portability and convenience. This microscope is ideal for secondary schools and other educational settings.

Specifications:

Optics:

• Eyepiece: 10x/18 (Widefield)

• Optical system: DIN (160 mm)

• Lens type: Achromatic

• Magnification range: 40–1000x (40x, 100x, 400x)

• Condenser: N.A. 0.65

• Objectives:

  • Objective 1: 4×/0.10 W.D. 27.0 mm

  • Objective 2: 10×/0.25 W.D. 7.0 mm

  • Objective 3: 40×/0.65 (spring-loaded) W.D. 0.6 mm

Lighting and Power Supply:

• Lamp type: LED (1W)

• Brightness control: Yes

• Power supply: EU-compatible

Mechanics:

• Type of build: Binocular

• Viewing posture: 30° angled eyepiece

• Focusing mechanism: Coarse and fine movement

Additional Features:

• Rechargeable battery operation: Yes

• Dust cover bag: Included

• Filter holder: Included

General Information:

• Weight: Approx. 2755 g

• Dimensions (W x L x H): 195 x 147 x 325 mm

• Series: OBT

Suitability and Applications:
Perfect for beginners in education or hobby use, particularly in secondary schools.

Miscellaneous Details:
Supplier product number: OBT 104
