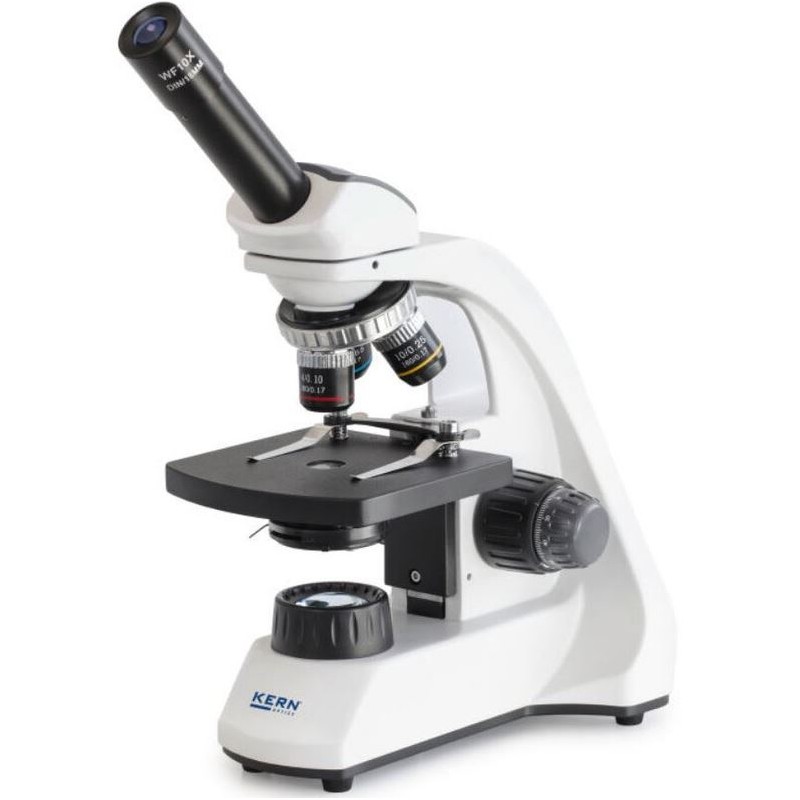

Kern Microscope Mono Achromat 4/10/40, WF10x18, 1W LED, OBT 103 (66387)

The Kern Microscope Mono Achromat OBT 103 is a user-friendly monocular microscope designed for beginners in educational and hobby settings. It features an achromatic optical system with magnification ranging from 40x to 400x, making it suitable for observing translucent and high-contrast samples. The 1W LED illumination ensures consistent and bright lighting, while the rechargeable battery option provides portability and flexibility. This microscope is ideal for use in schools and other learning environments.

Specifications:

Optics:

• Eyepiece: 10x/18 (Widefield)

• Optical system: DIN (160 mm)

• Lens type: Achromatic

• Objectives:

  • Objective 1: 4×/0.10 W.D. 27.0 mm

  • Objective 2: 10×/0.25 W.D. 7.0 mm

  • Objective 3: 40×/0.65 (spring-loaded) W.D. 0.6 mm

• Magnification range: 40–400x (40x, 100x, 400x)

Lighting and Condenser:

• Condenser: N.A. 0.65

• Lamp type: LED (1W)

Capacity:

• Brightness control: Yes

• Brightfield capability: Yes

Mechanics:

• Type of build: Monocular

• Viewing posture: 45° angled eyepiece

• Focusing mechanism: Coarse and fine movement

Additional Features:

• Rechargeable battery operation: Yes

• Dust cover bag: Included

• Filter holder: Included

General Information:

• Weight: Approx. 2755 g

• Dimensions (W x L x H): 195 x 147 x 325 mm

• Series: OBT

Suitability and Applications:
Perfect for beginners in education or hobby use.

Miscellaneous Details:
Supplier product number: OBT 103
