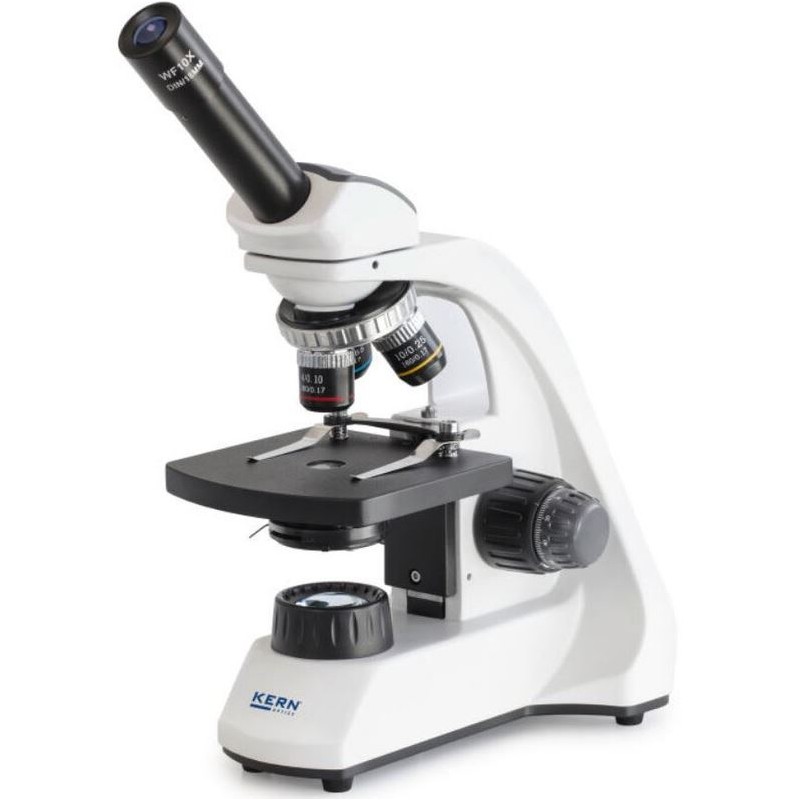

Kern Microscope Mono Achromat 4/10/40/100, WF10x18, 1W LED, OBT 105 (66389)

The Kern Microscope Mono Achromat OBT 105 is a versatile and user-friendly monocular microscope designed for beginners in education and hobby settings. With an achromatic optical system and magnification ranging from 40x to 400x, it is ideal for observing translucent and high-contrast samples. The microscope features a 1W LED illumination system for consistent lighting and includes a rechargeable battery option for added portability. The built-in cross table allows for precise sample positioning, making it suitable for schools and other learning environments.

Specifications:

Optics:

• Eyepiece: 10x/18 (Widefield)

• Optical system: DIN (160 mm)

• Lens type: Achromatic

• Objectives:

  • Objective 1: 4×/0.10 W.D. 27.0 mm

  • Objective 2: 10×/0.25 W.D. 7.0 mm

  • Objective 3: 40×/0.65 (spring-loaded) W.D. 0.6 mm

Magnification Range:

• Magnification: 40–400x (40x, 100x, 400x)

Lighting and Condenser:

• Condenser: N.A. 0.65

• Lamp type: LED (1W)

Capacity:

• Brightness control: Yes

• Brightfield capability: Yes

Mechanics:

• Type of build: Monocular

• Viewing posture: 45° angled eyepiece

• Focusing mechanism: Coarse and fine movement

Specimen Stage:

• Cross table included

Additional Features:

• Rechargeable battery operation: Yes

• Dust cover bag: Included

• Filter holder: Included

General Information:

• Weight: Approx. 2755 g

• Dimensions (W x L x H): 195 x 147 x 325 mm

• Series: OBT

Suitability and Applications:
Perfect for beginners in education or hobby use.

Miscellaneous Details:
Supplier product number: OBT 105
