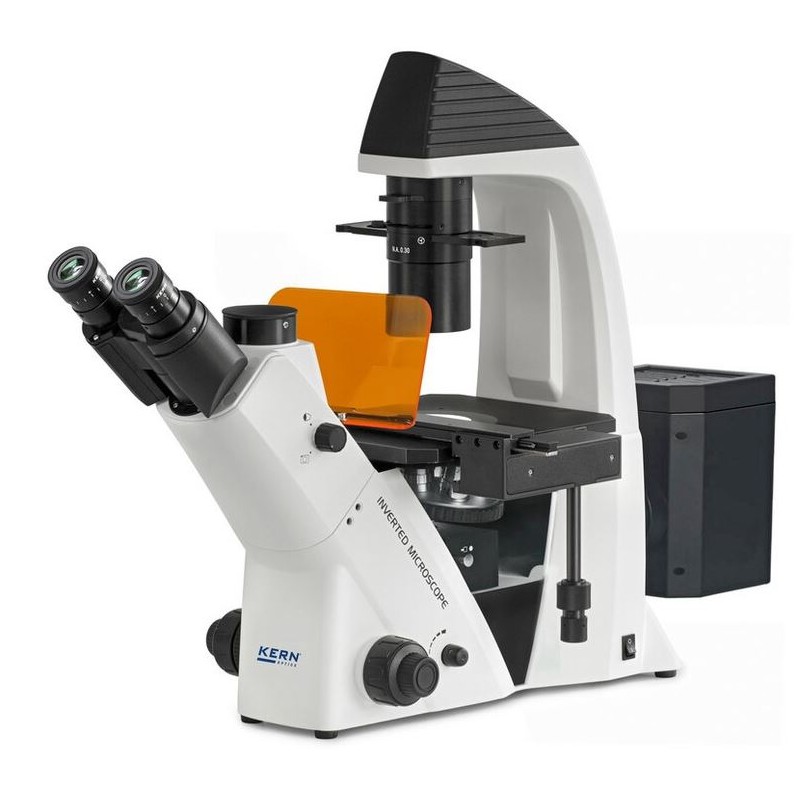

Kern Inverted microscope OCM 167, FL, PH, trino, Abbe N.A. 0.3 fixed Condensor, 10x-40x, Al, Dl, 5W LED (83011)

The Kern Inverted Microscope OCM 167 is a versatile trinocular microscope designed for advanced applications, including fluorescence and phase contrast techniques. It features an infinity optical system with plan optics, ensuring sharp and distortion-free imaging. Equipped with a fixed Abbe condenser (N.A. 0.3) and magnifications ranging from 10x to 40x, it is ideal for observing complex and translucent samples. The microscope includes dual 5W LED illumination for both transmitted and incident light, providing consistent lighting for various applications.

Specifications:

Optics:

• Optical system: Infinity

• Objectives:

  • Objective 1: 10x

  • Objective 2: 20x

  • Objective 3: 40x

  • Objective 4: PH 20x

• Field curvature: Plan

Condenser:

• Type: Abbe N.A. 0.3 (fixed)

Capacity:

• Type of build: Trinocular

• Field of view value: 22

Lighting:

• Incident light: 5W LED

• Transmitted light: 5W LED

Mechanics:

• Revolver: 5-position

General Information:

• Length: 304 mm

• Height: 530 mm

• Width: 782 mm

• Series: OCM

Contrast Methods:

• Fluorescence: Yes

Miscellaneous Details:
Supplier product number: OCM 167
