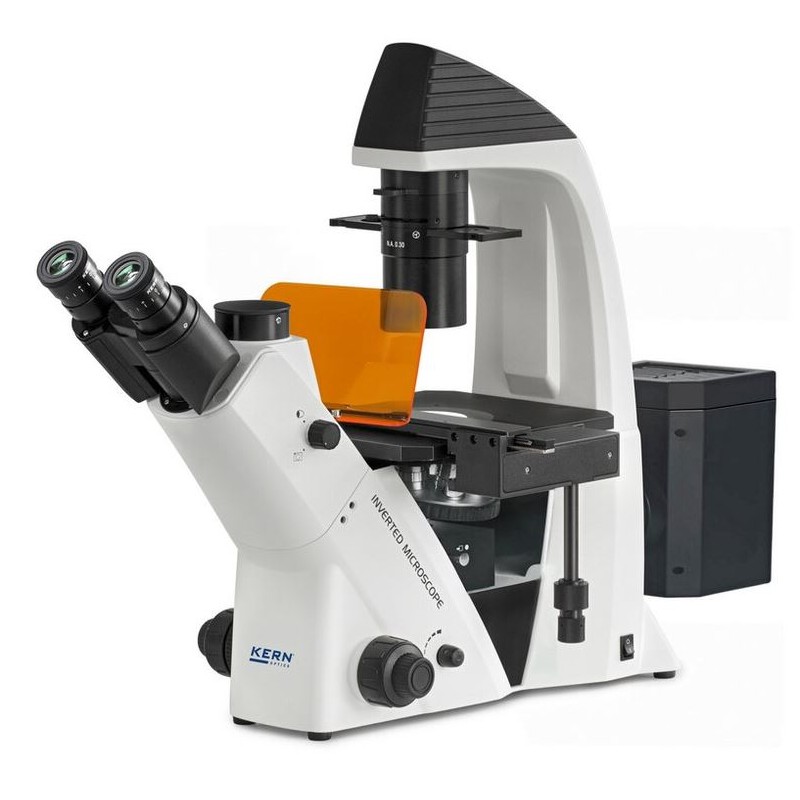

Kern Inverted microscope OCM 168, FL, PH, trino, Abbe N.A. 0.3 fixed Condensor, 10x-40x, 5W LED, Al/Dl (83012)

The Kern Inverted Microscope OCM 168 is a high-quality trinocular microscope designed for advanced applications, including fluorescence and phase contrast techniques. It features an infinity optical system with plan optics, ensuring sharp and distortion-free imaging. With a fixed Abbe condenser (N.A. 0.3) and magnifications ranging from 10x to 40x, this microscope is ideal for observing complex samples. Dual 5W LED illumination provides consistent lighting for both transmitted and incident light applications, making it versatile for various laboratory tasks.

Specifications:

Optics:

• Optical system: Infinity

• Objectives:

  • Objective 1: 10x

  • Objective 2: 20x

  • Objective 3: 40x

  • Objective 4: PH 20x

• Field curvature: Plan

Condenser:

• Type: Abbe N.A. 0.3 (fixed)

Capacity:

• Type of build: Trinocular

• Field of view value: 22

Lighting:

• Incident light: 5W LED

• Transmitted light: 5W LED

Mechanics:

• Revolver: 5-position

General Information:

• Width: 782 mm

• Length: 304 mm

• Height: 530 mm

• Series: OCM

Contrast Methods:

• Fluorescence: Yes

Miscellaneous Details:
Supplier product number: OCM 168
