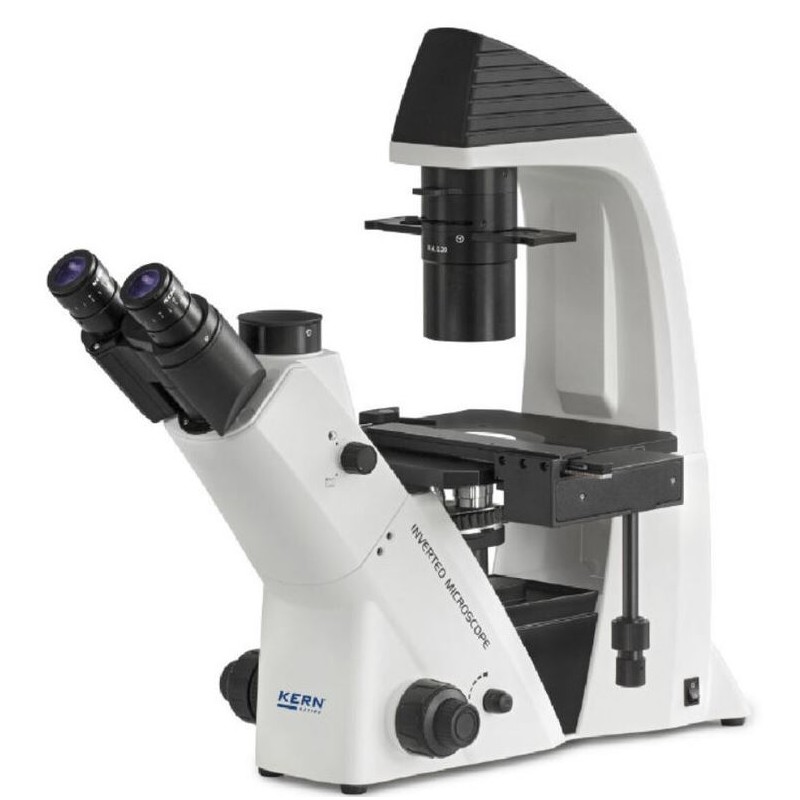

Kern Inverted microscope Trino Inf Plan 10/20/40/20PH, WF10x22, 30W Hal, OCM 161 (66391)

The OCM-1 range is designed with an ergonomic, robust, and highly stable structure, making it ideal for monitoring and analyzing cell cultures. Its large working distance is particularly suited for observing samples in culture vessels such as flasks, petri dishes, and microtitre plates. The microscope features a powerful and infinitely adjustable 30W halogen illumination unit for optimal brightfield sample illumination. Additionally, the OCM 165 model includes an Osram 100W Epi fluorescence illumination unit for precise stimulation of fluorescence samples. The special Abbe N.A. 0.3 condenser with an aperture diaphragm and a large working distance of 72 mm ensures excellent performance in both brightfield and fluorescence applications.

The OCM-1 range comes standard with a trinocular eyepiece tube and a mechanical stage with a specimen holder (Ø 118 mm) for efficient sample handling. Additional brackets for petri dishes are included or available as accessories. A wide variety of optional eyepieces, objectives, specimen holders, and phase contrast units can be integrated to enhance functionality. A dust cover and user instructions are included with delivery.

Scope of Application:
Ideal for research and breeding of cell cultures and tissue cultures.

Applications/Samples:
Designed for observing translucent, thin, low-contrast samples such as living mammal cells, tissue, microorganisms, immunofluorescence, FISH, DAPI staining, and samples in culture vessels.

Specifications:

Optics:

• Eyepiece: 10x/22 (Widefield)

• Optical system: Infinity

• Lens type: Plan achromatic

• Objectives:

  • Objective 1: LWD 10x

  • Objective 2: LWD 20x

  • Objective 3: LWD 20x PH

  • Objective 5: LWD 40x

Magnification Range:

• Magnification: 100–400

Lighting:

• Lamp type: Halogen (30W)

Capacity:

• Brightness control: Yes

• Brightfield capability: Yes

Mechanics:

• Type of build: Trinocular

• Viewing posture: 45° angled eyepiece, rotatable 360°

• Focusing mechanism: Coarse and fine movement

Additional Features:

• Filter holder: Yes

• Rechargeable battery operation: Not specified for this model

• Dust cover bag: Included

General Information:

• Weight: Approx. 13,500 g

• Dimensions (W x L x H): 304 x 599 x 530 mm

• Series: OCM

Suitability and Applications:
Perfect for advanced users in medicine or laboratory research.

Miscellaneous Details:
Supplier product number: OCM 161
