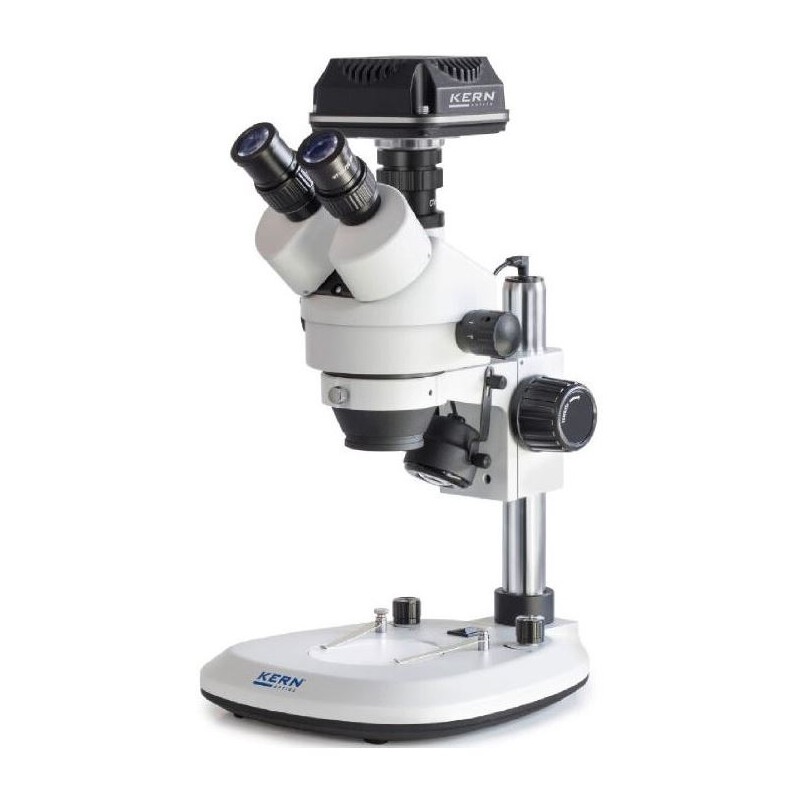

Kern Microscope OZL 464C832, Greenough, Column, 7-45x, 10x/20, Reflected light, 3W LED, Camera 5MP, USB 3.0 (66633)

The Kern Microscope OZL 464C832 is a trinocular stereo zoom microscope designed for professional applications, particularly in mineralogy. It features a Greenough optical system with a magnification range of 7x to 45x and a 10x/20 eyepiece, delivering sharp and detailed imaging. Equipped with both incident and transmitted 3W LED lighting, as well as advanced digital imaging capabilities via a 5MP camera with USB 3.0 connectivity, this microscope is ideal for observation, analysis, and documentation. Its ergonomic design and precise controls make it suitable for demanding professional tasks.

This microscope combines precision optics, robust construction, and advanced digital imaging features, making it an excellent choice for professionals who require high-quality observation tools with seamless documentation capabilities.

Optics:

• Image Scale: 7x–45x

• Lighting: Incident light and transmitted light (3W LED)

• Eyepiece: 10/20

• Magnification: Up to 45x

• Optical System: Greenough

• Zoom Shot: Yes

Capacity:

• Optical Zoom: 6.4:1

Mechanics:

• Type of Build: Trinocular

• Working Distance: 105 mm

• Viewing Posture: 45° angled eyepiece, 360° rotatable

• Focusing Mechanism: Coarse movement with control knobs on both sides

• Specimen Stage: Stage plate

Special Features:

• Dust Cover Bag: Yes

Camera Specifications:

• Frame Rate (fps): 14.2–101.2

• Chip Size (″): 1/2.5

• Color Camera: Yes

• Megapixels: 5.1 MP

• Interface: USB 3.0

• Sensor Type: CMOS

General Information:

• Series: OZL

• Color: White

• Dimensions: Height: 420 mm, Length: 240 mm, Width: 300 mm

• Weight: 4,000 g

Area of Application:

• Specifically suited for mineralogy

Miscellaneous Information:

• Supplier Product Number: OZL464C832
