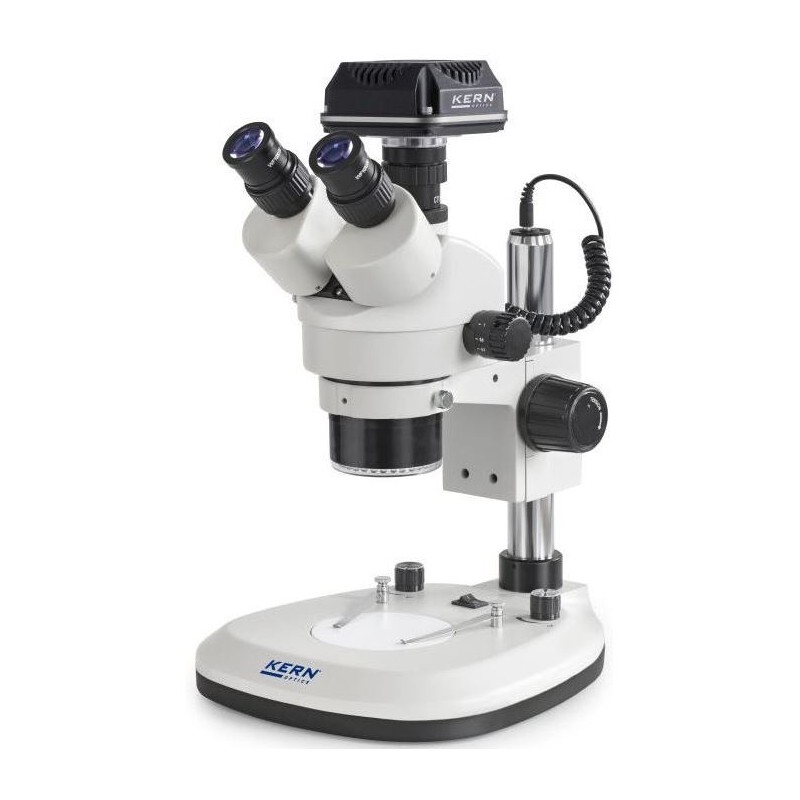

Kern Microscope OZL 466C825, Greenough, Column, 7-45x, 10x/20, Transmitted light 3W LED, Ringl., Camera 5MP, USB 2.0 (66637)

The Kern Microscope OZL 466C825 is a trinocular stereo zoom microscope designed for professional applications, particularly in mineralogy. It features a Greenough optical system with a magnification range of 7x to 45x and a 10x/20 eyepiece, offering sharp and detailed imaging. Equipped with incident and transmitted 3W LED lighting, a ring light, and a built-in 5MP digital camera, this microscope is ideal for observation, analysis, and documentation. Its ergonomic design and precise controls make it suitable for demanding tasks.

This microscope combines precision optics, robust construction, and advanced digital imaging features, making it an excellent choice for professionals who require high-quality observation tools with seamless documentation capabilities.

Optics:

• Image Scale: 7x–45x

• Lighting: Incident light and transmitted light (3W LED, Ring light)

• Eyepiece: 10/20

• Magnification: Up to 45x

• Optical System: Greenough

Mechanics:

• Type of Build: Trinocular

• Working Distance: 105 mm

• Viewing Posture: 45° angled eyepiece, 360° rotatable

• Focusing Mechanism: Coarse movement with control knobs on both sides

• Specimen Stage: Stage plate

Special Features:

• Dust Cover Bag: Yes

Camera Specifications:

• Frame Rate (fps): 6.8–55

• Chip Size (″): 1/2.5

• Color Camera: Yes

• Megapixels: 5.1 MP

• Interface: USB 2.0

• Sensor Type: CMOS

General Information:

• Series: OZL

• Color: White

• Dimensions: Height: 420 mm, Length: 240 mm, Width: 300 mm

• Weight: 4,000 g

Area of Application:

• Specifically suited for mineralogy

Miscellaneous Information:

• Supplier Product Number: OZL466C825
