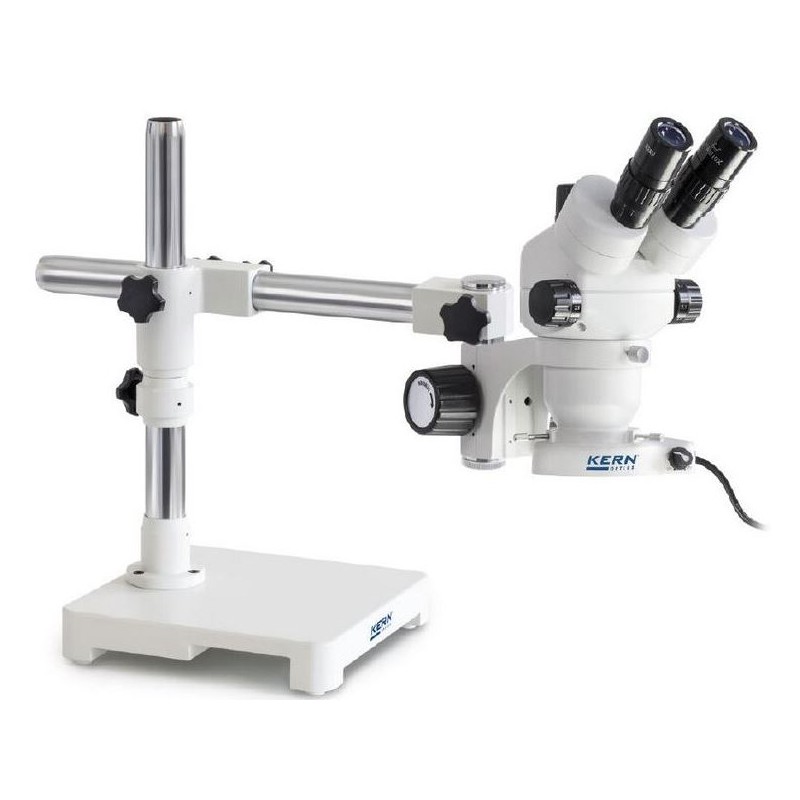

Kern Stereo OZM 903, trino, 7x-45x, HSWF10x23mm, Tripod, single arm (430 mm x 385 mm) w. table top,ring light LED 4.5W (66656)

The Kern OMZ series offers superior stereo zoom microscopes with first-class optics, strong illumination, and exceptional flexibility. These microscopes are designed for effortless operation, even during extended use, thanks to their ergonomic design. They feature a long working distance, an extra-large field of view, and brilliant resolution, delivering true-color, razor-sharp images with high contrast. The zoom objective allows variable magnification from 7.5x to 45x. Both binocular and trinocular models are available, with the latter offering camera connections for documentation and quality reporting. The robust pillar stand provides flexible adjustments for ergonomic working positions. Accessories such as additional eyepieces, universal stands, dark field kits, external illumination units, and objectives are available to enhance functionality. A dust cover, eyecups, and multilingual operating instructions are included in the package. A C-mount adapter is required to connect a camera to the trinocular version.

Areas of application: Suitable for in vitro fertilization, parasite detection, zoology and botany, tissue preparation, quality control, electronics and semiconductor industries, assembly, and repair.

Applications/samples: Ideal for samples requiring a three-dimensional impression or variable magnification (e.g., insects, seeds, circuit boards, components).

Highlights:

• Zoom Range: 7.5x–45x

• Eyepieces: 10x/23

• Working Distance: 110 mm

Specifications:

Optics:

• Image Scale: 7x–45x

• Lighting: Incident light and transmitted light

• Eyepiece: 10/23

• Magnification: Up to 45x

• Optical System: Greenough

Mechanics:

• Type of Build: Trinocular

• Working Distance: 110 mm

• Viewing Posture: 45° angled eyepiece, 360° rotatable

• Focusing Mechanism: Coarse movement with control knobs on both sides

Special Features:

• Dust Cover Bag: Yes

General Information:

• Series: OZM

• Color: White

• Dimensions: Height: 330 mm, Length: 285 mm, Width: 440 mm

• Weight: 17,000 g

Area of Application: Specifically suited for mineralogy

Miscellaneous Information:

• Supplier Product Number: OMZ-9

This microscope combines advanced optical performance with ergonomic design and flexibility, making it an excellent choice for professionals in fields requiring precision observation and analysis.
