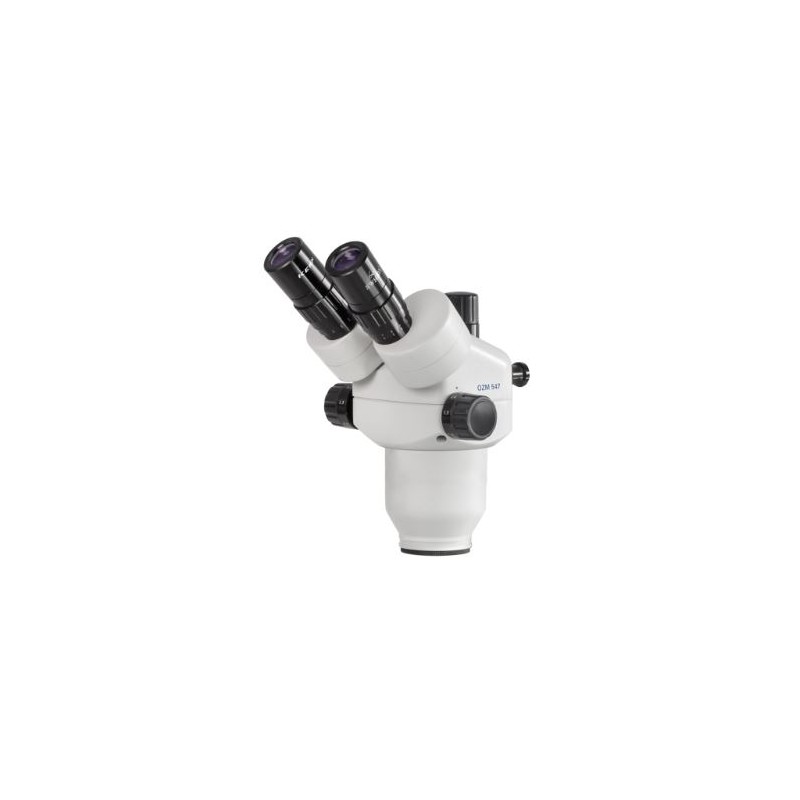

Kern Stereo zoom head OZM 546, bino, 7x-45x, HSWF 10 x 23mm, f. OZM-5 series (66652)

The Kern OMZ series offers exceptional stereo zoom microscopes with first-class optics, strong illumination, and impressive flexibility. These microscopes are designed for professional use, providing superior optical performance with true-color, razor-sharp images of high contrast. The ergonomic design ensures effortless and comfortable operation, even during extended use. With a long working distance, an extra-large field of view, and brilliant resolution, the OMZ series is ideal for precision tasks. The zoom objective allows variable magnification from 7.5x to 45x. Both binocular and trinocular models are available, with the trinocular version offering a camera connection for documentation and quality reporting. The robust pillar stand ensures flexible adjustments for ergonomic working positions. Accessories such as additional eyepieces, universal stands, dark field kits, external illumination units, and objectives are available to enhance functionality. Included in the package are a dust cover, eyecups, and multilingual operating instructions. A C-mount adapter is required to connect a camera to the trinocular version.

Areas of application: Suitable for in vitro fertilization, parasite detection, zoology and botany, tissue preparation, quality control, electronics and semiconductor industries, assembly, repair, mineralogy, industry, semiconductor technology, and odontotechnics.

Applications/samples: Ideal for samples requiring a three-dimensional impression or variable magnification (e.g., insects, seeds, circuit boards, components).

Highlights:

• Zoom Range: 7.5x–45x

• Eyepieces: 10x/23

• Working Distance: 110 mm

Specifications:

Optics:

• Image Scale: 7x–45x

• Eyepiece: 10/23

• Magnification: Up to 45x

• Optical System: Greenough

Mechanics:

• Type of Build: Binocular

• Working Distance: 110 mm

• Viewing Posture: 45° angled eyepiece, 360° rotatable

Special Features:

• Dust Cover Bag: Yes

General Information:

• Series: OZM

• Color: White

• Dimensions: Height: 220 mm, Length: 300 mm, Width: 310 mm

• Weight: 2,500 g

Field of Application: Specifically suited for industry

Area of Application: Suitable for mineralogy and semiconductor technology

Miscellaneous Information:

• Supplier Product Number: OZM546

This microscope combines advanced optical performance with ergonomic design and flexibility, making it an excellent choice for professionals in fields requiring precision observation and analysis.
