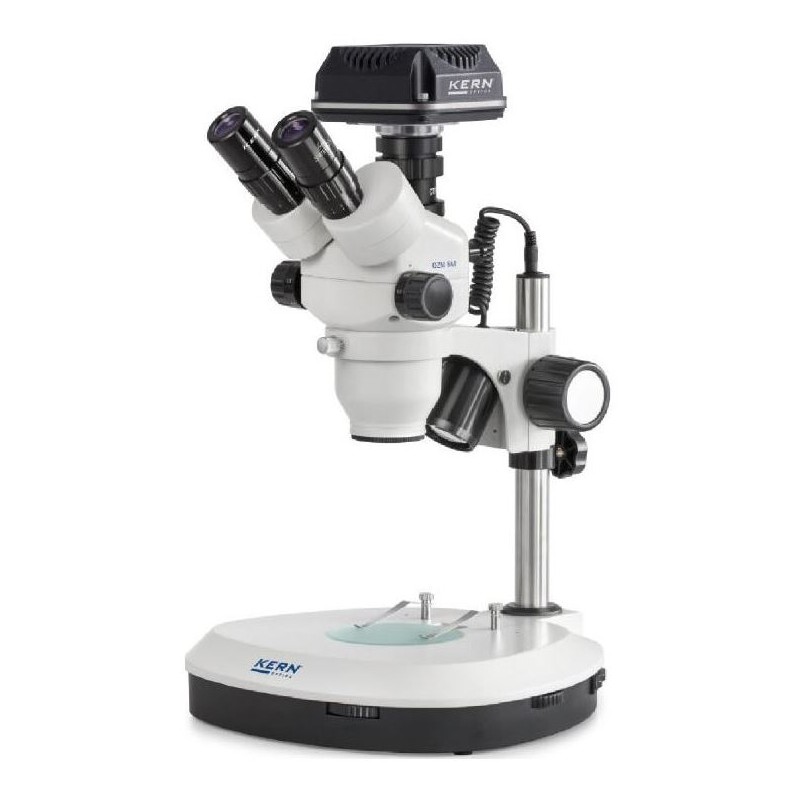

Kern Microscope OZM544C832,trino,7-45x,HWF 10x23,incident transmitted light,LED 3W, Camera,CMOS,5MP, 1/2.5",USB 3.0 (66651)

First-class optics and powerful illumination with exceptional flexibility. The OMZ series features high-quality stereo zoom microscopes designed for superior optical performance. Its ergonomic design ensures effortless and prolonged operation, making it ideal for professional use. The KERN OZM delivers true-color, razor-sharp images with high contrast, combining a long working distance, an extra-large field of view, and brilliant resolution. The zoom objective allows variable magnification from 7.5x to 45x. Both binocular and trinocular models are available, with the latter offering a camera connection for documentation and quality reporting.

The pillar stand is robust and adjustable, providing flexibility and enabling an ergonomic working position. A wide range of accessories is available, including eyepieces, universal stands, a dark field kit, external illumination units, additional objectives, and more. The package includes a dust cover, eyecups, and multilingual operating instructions. A C-mount adapter is required to connect a camera to the trinocular version.

Areas of Application:
This microscope is suitable for in vitro fertilization, parasite detection, zoology and botany studies, tissue preparation and sectioning, quality control processes, electronics and semiconductor industries, assembly tasks, and repair work.

Applications/Samples:
Ideal for samples that require a three-dimensional impression or variable magnification (depth and thickness), such as insects, seeds, circuit boards, and components.

Key Highlights:

• Zoom magnification: 7.5x - 45x

• Eyepieces: 10x/23

• Working distance: 110mm

Specifications:

Optics:

• Image scale: 7x-45x

• Lighting: Incident light and transmitted light

• Eyepiece: 10/23

Mechanics:

• Type of build: Trinocular

• Working distance: 110mm

• Viewing posture: 45° angled eyepiece; 360° rotatable

• Focusing mechanism: Coarse movement (control knobs on both sides)

• Specimen stage: Stage plate

Special Features:

• Dust cover bag included

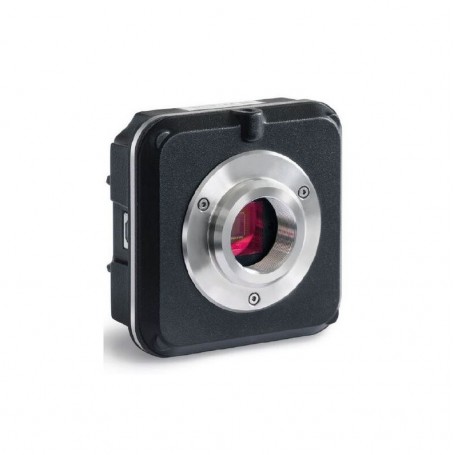

Camera Features (Trinocular Model):

• Resolution (pixels): 5.1 MP

• Frame rate: 14.2–101.2 fps

• Chip size: 1/2.5″

• Color camera: Yes

• Interface: USB 3

• Sensor type: CMOS

General Information:

• Series name: OZM

• Color: White

• Dimensions (HxLxW): 330mm x 285mm x 440mm

• Weight: 4500g

Area of Application: Mineralogy

Miscellaneous Details:
Supplier product number: OZM544C832
