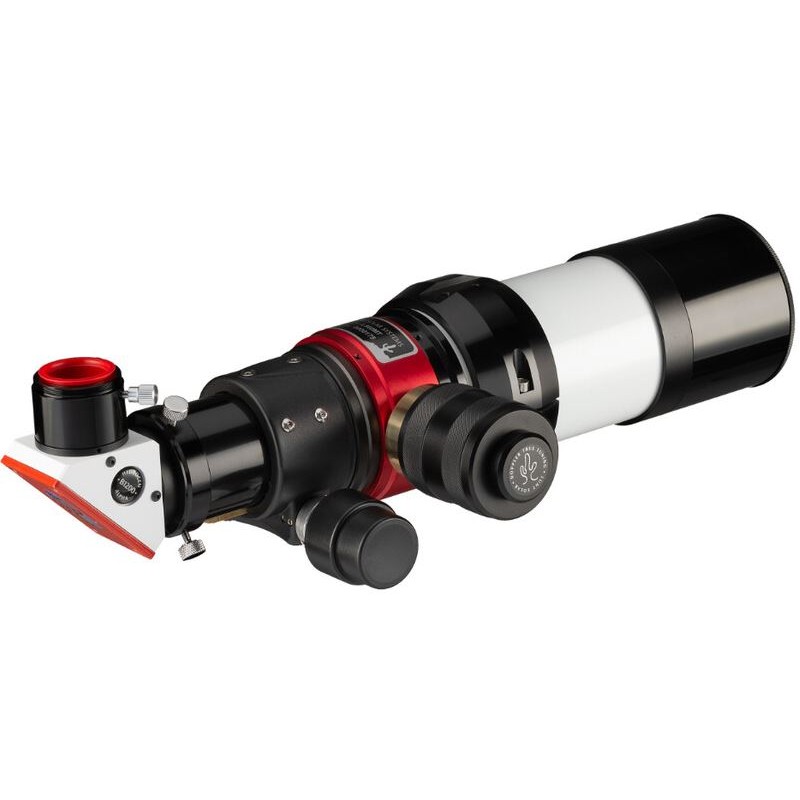

Lunt Solar Systems Solar telescope ST 70/420 LS60MT Ha B1200 Allround OTA (71088)

The LS60MT is a specialized telescope designed for solar observation in H-alpha light, featuring a 60mm clear aperture H-alpha filter with no central obstruction. This design ensures especially sharp and detailed images, allowing the lens to achieve its full resolution potential. In H-alpha, you can observe solar prominences, filaments, and flares, making every solar viewing session both impressive and dynamic. The integrated etalon filter provides a bandwidth of less than 0.7 Angstrom for high-contrast solar imaging.

A key advantage of the LS60MT is its modular construction. The H-alpha etalon can be easily detached and replaced with a conversion kit (available separately), transforming the telescope into a high-quality ED apochromat with FPL-51 glass for night-time astronomy and astrophotography. You can also use a Herschel wedge for white light solar observation or a CaK module for viewing the Sun in the CaK spectral line, making this a truly universal instrument.

The block filter, essential for safe solar observation, is built into the diagonal and accepts 1.25” eyepieces and cameras, as well as T2-threaded accessories. For night-time use, the blocking filter is not required, and the focuser can accommodate 2” accessories.

The PT pressure tuner allows for precise adjustment of the etalon filter by changing the air pressure inside the telescope, ensuring uniform images and long-lasting performance. The B1200 blocking filter is ideal for visual solar observation and for solar photography with cameras that have small sensor chips. For larger sensors, a telescope with a bigger blocking filter is recommended.

Included:

• LS60MT multi-purpose telescope

• Pressure tuner

• Blocking filter in diagonal mirror

• 2” rack and pinion focuser

• Tube bracket with 1/4-20 thread for tripods

• Carry case

• Operating instructions

Specifications

Optics:

• Type: Refractor

• Design: Solar H-Alpha

• Aperture: 70 mm

• Focal length: 420 mm

• Aperture ratio: f/6

• Resolving capacity: 1.97 arcseconds

• Limiting magnitude: 11

• Light gathering capacity: 100

• Maximum useful magnification: 140x

• Lens design: Doublet

• Coating: Fully multi-coated (FMC)

• Double Stack: No

• Blocking filter: 12 mm

• Filter system: H-alpha

• Tube weight: 3.8 kg

• Tube length: 400 mm

Focuser:

• Type: Rack and pinion

• Eyepiece connection: 2”

• Camera connection: T2 thread

• Backfocus: 135 mm

• Gear reduction: 1:10 fine focusing

Mount:

• Type: Optical tube assembly (OTA)

• Mounting: No mount included

Included accessories:

• Dew shield

• Block filter

• Carrying handle

• Extension tubes

• Transport case

• Tube clamps

General:

• Series: Allround

• Shipping weight: 8.3 kg

• Carry case dimensions: 53 x 33 x 17 cm

Area of application:

• Astrophotography: Yes

• Moon & Planets: Yes

• Nature Observation: No

• Nebulae & Galaxies: Yes

• Sun: Yes

Recommended for:

• Beginners: No

• Advanced users: Yes

• Observatories: No

The LS60MT is an excellent choice for advanced users seeking a flexible, high-quality telescope for both solar and night sky observation.
