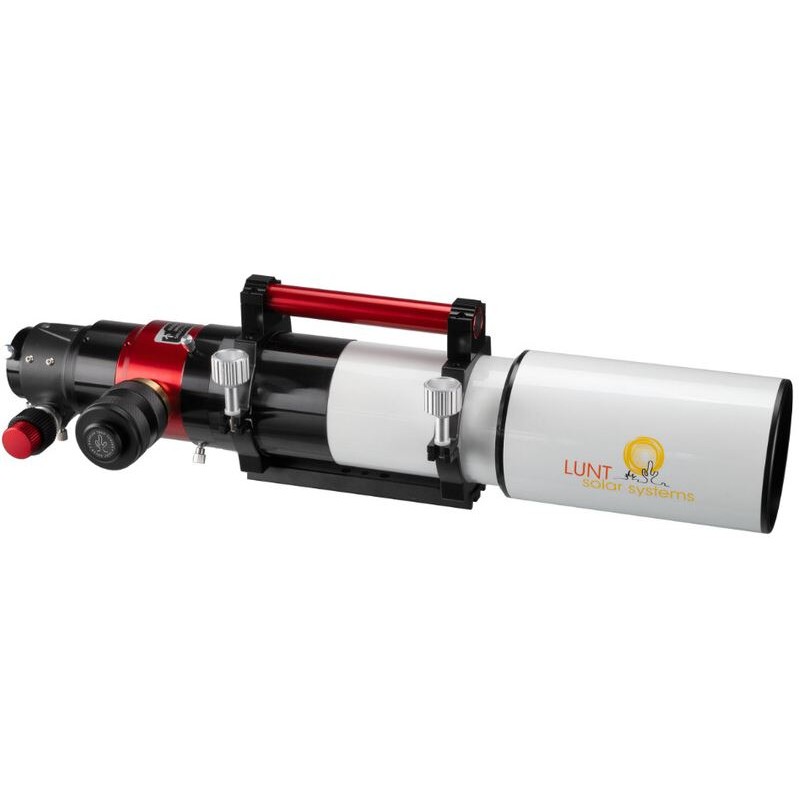

Lunt Solar Systems Solar telescope ST 100/714 LS100MT Ha B3400 Allround OTA (83369)

The PT pressure tuner allows for precise adjustment of the Etalon filter using an air pressure system. By making small changes to the air pressure inside a chamber within the telescope, the refractive index of the air is altered, enabling effortless and accurate tuning to the H-alpha spectral line. This ensures a uniform image with no central obstructions and provides a durable, long-lasting etalon.

14728.76 CHF
Tax included

11974.6 CHF net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The PT pressure tuner allows for precise adjustment of the Etalon filter using an air pressure system. By making small changes to the air pressure inside a chamber within the telescope, the refractive index of the air is altered, enabling effortless and accurate tuning to the H-alpha spectral line. This ensures a uniform image with no central obstructions and provides a durable, long-lasting etalon.



The B3400 blocking filter is especially well-suited for solar photography with cameras that have very large sensor chips, and it can also be used for visual solar observation. Unlike many other solar telescopes, the blocking filter is built directly into the focuser rather than the deflection optics, making this telescope ideal for advanced solar imaging.



Specifications

Optics:

  • Type: Refractor

  • Design: Solar H-Alpha

  • Aperture: 100 mm

  • Focal length: 714 mm

  • Aperture ratio: f/7.1

  • Resolving capacity: 1.38 arcseconds

  • Limiting magnitude: 11.8

  • Light gathering capacity: 200

  • Maximum useful magnification: 200x

  • Lens design: Triplet

  • Glass material: OHARA FPL-53

  • Coating: Fully multi-coated (FMC)

  • Double Stack: No

  • Blocking filter: 12 mm

  • Filter system: H-alpha

  • Tube weight: 6.8 kg

  • Tube length: 840 mm

  • Tube material: Aluminium

  • Carrying length: 650 mm

Focuser:

  • Type: Rack and pinion

  • Eyepiece connection: 2”

  • Camera connection: T2 thread

  • Gear reduction: 1:10 fine focusing

Mount:

  • Type: Optical tube assembly (OTA)

  • Mounting: No mount included

Included accessories:

  • Solar finder

  • Dew shield

  • Vixen-style prism rail

  • Solar filters

  • Carrying handle

  • Transport case

  • Tube clamps

General:

  • Series: Allround

  • Carry case dimensions: 78 x 33 x 23 cm

  • Shipping weight: 16 kg

Area of application:

  • Astrophotography: Yes

  • Moon & Planets: Yes

  • Nature Observation: No

  • Nebulae & Galaxies: Yes

  • Sun: Yes

Recommended for:

  • Beginners: No

  • Advanced users: Yes

  • Observatories: Yes

This telescope is an excellent choice for advanced users and observatories seeking high-quality solar and night sky observation, especially for those focused on solar imaging with large sensor cameras.
