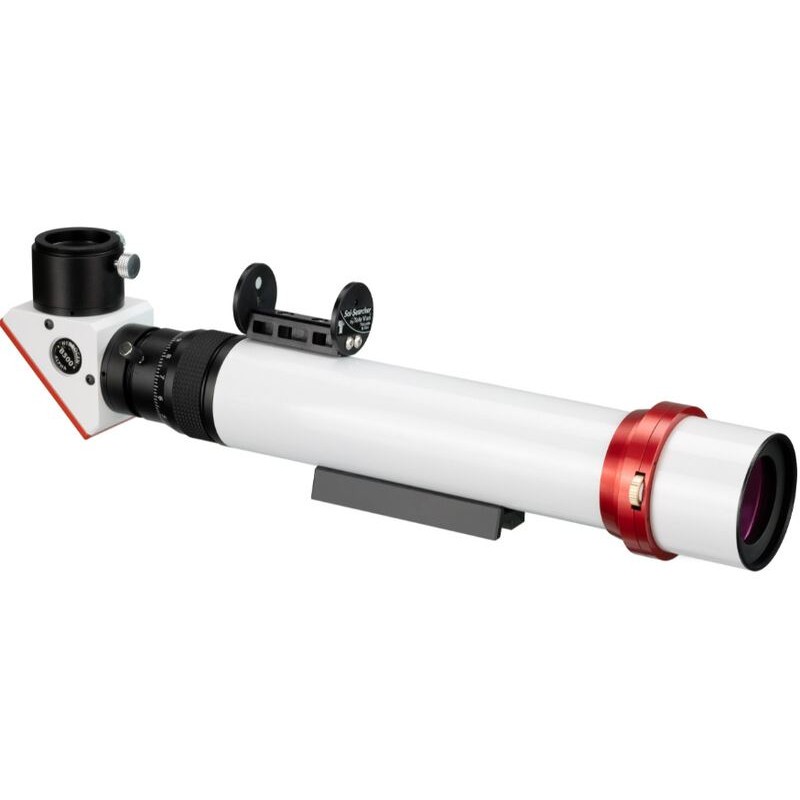

Lunt Solar Systems Solar telescope ST 40/400 LS40T Ha B500 (72097)

The LS40THa is a dedicated solar telescope designed for observing the Sun in H-alpha light. It features a 40mm aperture with no central obstruction and a focal length of 400mm.

Observing the Sun in H-alpha is the most striking way to experience solar activity. Through this wavelength, you can see solar prominences at the edge of the Sun, filaments, flares, and many other fascinating features on the solar surface. The telescope uses an Etalon filter with mechanical tilt-tuning, providing a bandwidth of less than 0.7 Angstrom for detailed views.

The block filter is integrated into the deflection optics, which is essential for safe solar observation. This filter accepts eyepieces or cameras with 1.25-inch sockets and also offers a T2 thread for direct camera connection. The blocking filter is only necessary for solar observation and is not required for night-time use. The focuser can accommodate a zenith mirror or other accessories with 2-inch sockets.

Specifications

Optics
Type: Refractor
Design: Solar H-Alpha
Aperture: 40 mm
Focal length: 400 mm
Aperture ratio: f/10
Resolving capacity: 3.45 arcseconds
Maximum useful magnification: 80x
Double Stack: No
Filter system: H-alpha
Tube weight: 1.2 kg
Tube length: 410 mm
Blocking filter diameter: 5 mm

Focuser
Type: Helical
Eyepiece connection: 1.25 inch
Camera thread: T2
Motorized: No
Ring clamp: Yes
Gear reduction: None

Mount
Type: OTA (optical tube assembly only)
Mount included: No

Included Accessories
Finder scope: Solar finder
Dew shield: No
Deviating optics: Blockfilter
Prism rail: Vixen-style
Solar filters: Yes
Carrying handle: No
Extension tubes: No
Transport case: No

General
Shipping weight: 3.6 kg
Series: LS40THa
Astrophotography: Yes
Moon & planets: Yes
Nature observation: No
Nebulae & galaxies: Yes
Sun: Yes
Recommended for beginners: No
Recommended for advanced users: Yes
Suitable for observatories: No
