Lunt Solar Systems Solar telescope ST 40/400 LS40T Ha B600 (72098)

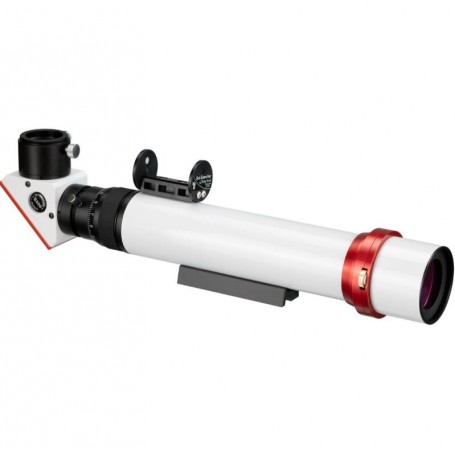

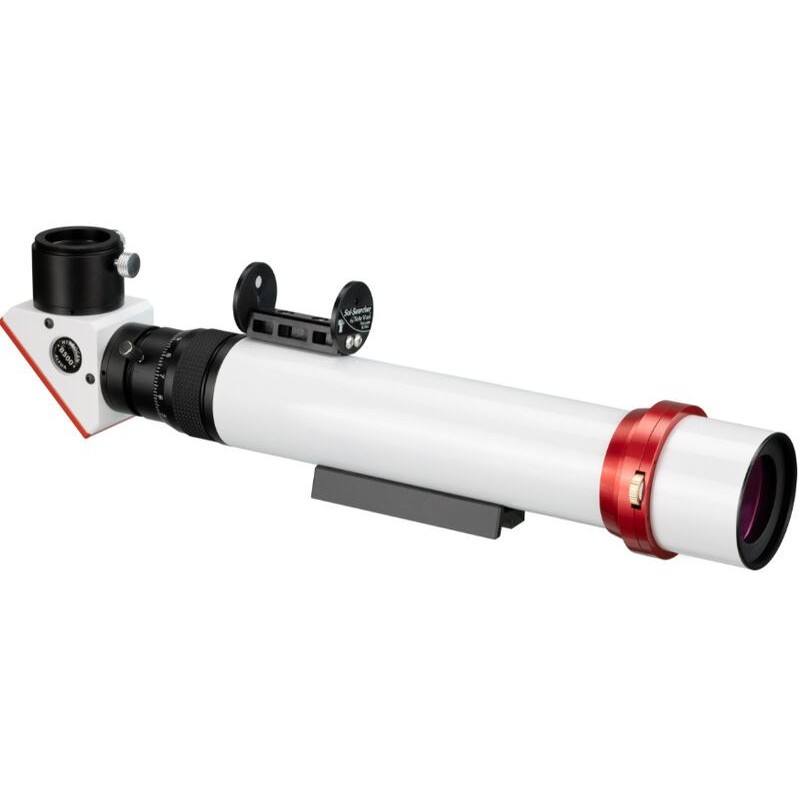

The LS40THa is a fully equipped telescope designed for observing the sun in H-alpha. It features a 40mm aperture with no central obstruction and a focal length of 400mm.

H-alpha Observing Experience

Observing the sun in the H-alpha wavelength is the most captivating way to view solar activity. This allows you to see features such as prominences at the sun’s edge, filaments, flares, and much more. The telescope uses an Etalon with mechanical tilt-tuning, providing a bandwidth of less than 0.7 Angstrom.

BF Blocking Filter

The blocking filter is integrated into the deflection optics along with the eyepiece receiver. Its purpose is to reduce the brightness of the solar image, making it an essential safety component that should never be removed. For visual observation, a small blocking filter is sufficient, but for photography, a larger blocking filter is recommended.

Technical Specifications

Optics

• Type: Refractor, Solar H-Alpha

• Aperture: 40mm

• Focal Length: 400mm

• Aperture Ratio: f/10

• Resolving Capacity: 3.45

• Maximum Useful Magnification: 80x

• Double Stack: No

• Filter Systems: H-alpha

• Tube Weight: 1.2 kg

• Tube Length: 410mm

• Blocking Filter Diameter: 6mm

Focuser

• Type: Helical

• Eyepiece Connection: 1.25"

• Camera-Side Thread: T2

• Motorized: No

• Ring Clamp: Yes

• Gear Reduction: None

Mount

• Build: OTA (Optical Tube Assembly)

• Mounting Type: Not included

Included Accessories

• Finder Scope: Solar finder

• Deviating Optics: Blockfilter

• Prism Rail: Vixen-Style

• Solar Filters: Yes

Not Included

• Dew Shield

• Carrying Handle

• Extension Tubes

• Transport Cases

General Information

• Shipping Weight: 3.6 kg

• Series: LS40THa

Areas of Application

• Astrophotography: Yes

• Moon & Planets: Yes

• Nature Observation: No

• Nebulae & Galaxies: Yes

• Sun: Yes

Recommended For

• Beginners: No

• Advanced Users: Yes

• Observatories: No
