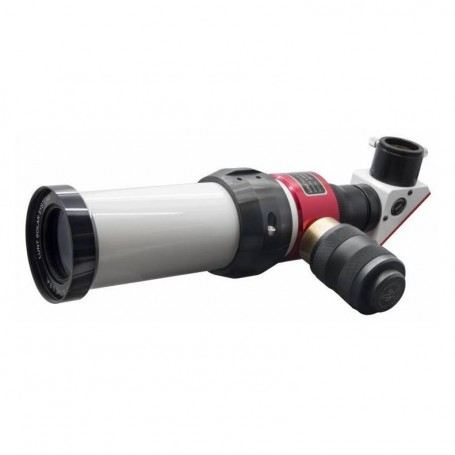

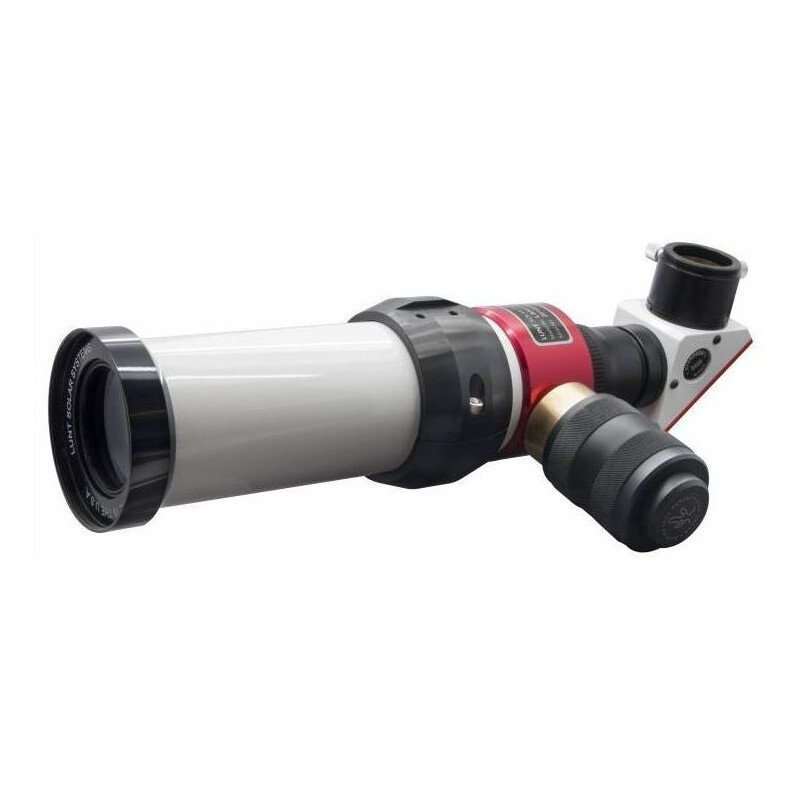

Lunt Solar Systems Solar telescope ST 50/350 LS50THa/B400PT (44940)

A front-mounted, unobstructed Etalon filter delivers a bandwidth of less than 0.75 Angstrom, allowing you to clearly observe solar prominences and surface features. Its lightweight and compact build make it an excellent choice for travel. The diagonal mirror includes a built-in blocking filter and is paired with a non-rotating helical focuser compatible with 1.25” eyepieces.

Key features:

• 50mm clear aperture with no central obstruction

• 350mm focal length

• Internal Etalon with pressure tuning system (PT Pressure Tuner)

• Bandwidth less than 0.75 Angstrom

• Non-rotating helical focuser

• Tube clamps with standard 1/4-20 tripod thread

There are two versions of this model: one with a B400 blocking filter and another with a larger B600 blocking filter. The B600 version is referenced here, though the only visible difference is on its label.

For enhanced detail and contrast, double stacking is possible, reducing the bandwidth to less than 0.5 Angstrom. The LS50C Double Stack filter, designed specifically for this telescope, can be directly attached to the LS50THa for increased surface detail. Additionally, standard LS50FHa and LS60FHa double stack filters can also be used with the LS50THa when paired with the LS150/50 adapter.

PT Pressure Tuner:
The Etalon filter is fine-tuned using an air pressure system. Adjusting the air pressure inside a chamber within the telescope changes the refractive index of the air, allowing for precise and effortless tuning of the H-alpha spectral line. This system ensures a uniform image, no central obstruction, and a durable, long-lasting Etalon.

Specifications

Optics

• Type: Refractor, Solar H-Alpha

• Aperture: 50mm

• Focal Length: 350mm

• Aperture Ratio: f/7

• Resolving Capacity: 2.3

• Light Gathering Capacity: 50

• Maximum Useful Magnification: 100x

• Tube Weight: 1.4 kg

• Bandwidth: < 0.75 Angstrom

• Blocking Filter: 4mm

• Double Stack: No

• Tube Construction: Full tube

Focuser

• Type: Helical

• Rotating: Yes

• Eyepiece Connection: 1.25"

Mount

• Mounting Type: Not included

• GoTo Control: No

• Build: OTA (Optical Tube Assembly)

Area of Application

• Moon & Planets: No

• Nebulae & Galaxies: No

• Nature Observation: No

• Astrophotography: Yes

• Sun: Yes

Recommended For

• Beginners: Yes

• Advanced Users: Yes

• Observatories: No
