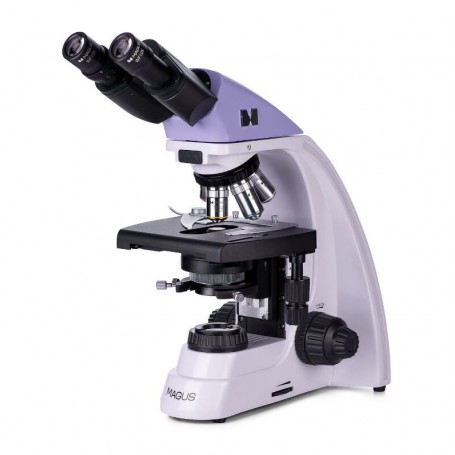

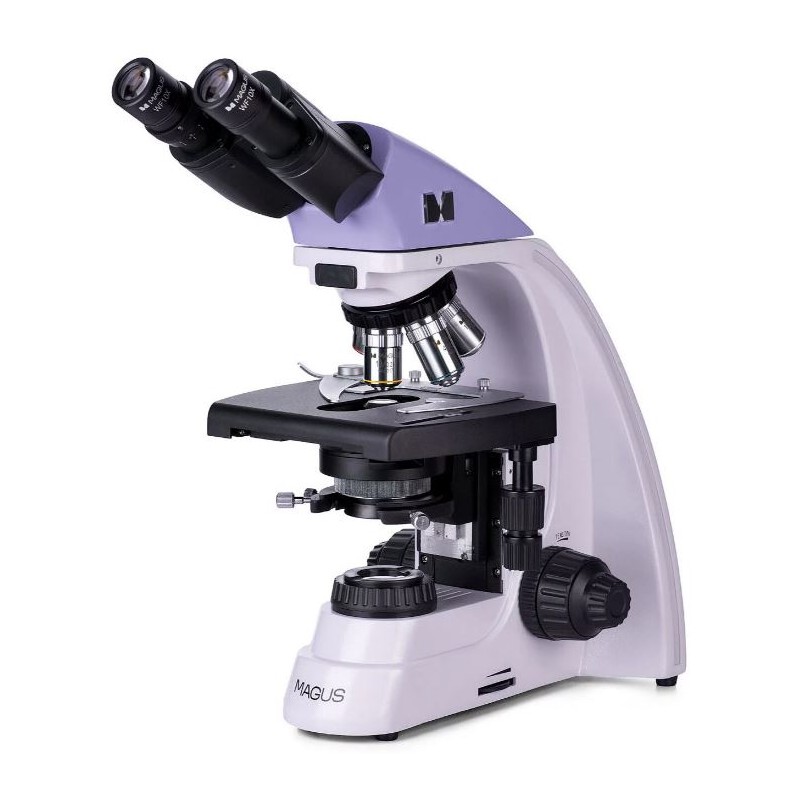

MAGUS Microscope Bio 230B bino, infinity, 40x-1000x Hal (82031)

This microscope is designed for observing transparent and translucent biological samples, such as smears and cross-sections, using transmitted light in bright field mode. With the addition of optional accessories, it can also be used for darkfield, phase-contrast, and polarization techniques. The microscope is well-suited for daily laboratory work, research, and educational purposes, offering flexibility and ergonomic features for comfortable extended use.

Microscope Head

• Binocular head with infinity achromatic objectives

• Eyepiece tubes can rotate 360°

• Adjustable eye relief to accommodate different user heights

• Digital camera can be mounted in place of an eyepiece, using a tube with a diopter adjustment ring

Revolving Nosepiece

• Holds 5 objectives

• Slot available for an additional lens to expand magnification range

• Nosepiece is oriented inward, allowing users to see which objective is in use and keeping the stage area clear

Focusing Mechanism

• Coaxial coarse and fine focusing knobs located at the base on both sides

• Allows users to rest their hands on the table in a relaxed position

• Smooth and easy focus adjustment

Stage

• Ergonomic design without an X-axis positioning rack

• Integrated mechanism moves the sample smoothly

• Slide holder is attached with two screws and can be removed for convenience

Abbe Condenser

• Slot for inserting a darkfield or phase-contrast slider

• Sliders make it quick and easy to change observation methods

Illumination

• Halogen bulb provides warm, natural colors

• Easy bulb replacement

• 30-watt bulb is bright enough for brightfield, darkfield, and phase-contrast observations

Accessories

• Wide range of compatible accessories: eyepieces, objectives, darkfield, phase-contrast and polarization devices, digital cameras, and calibration slides

Specifications

Optics

• Number of objectives: 4

• Lighting: Transmitted light

• Field curvature: Plan

• Colour correction: Achromatic

• Condenser: Abbe

• Lamp type: Halogen

• Objective 1: 4x/0.1

• Objective 2: 10x/0.25

• Objective 3: 40x/0.65

• Objective 4: 100x/1.25

• Lens type: Achromatic

• Eyepiece: 10x

• Power supply: Power pack

• Magnification range: 40x–1000x

• Optical system: Infinity

Mechanics

• Type of build: Binocular

• Viewing posture: 30°

• Focusing: Coarse and fine movement

• Specimen stage: Cross table

• Eyepiece tube diameter: 23.2 mm

• Pupillary distance: 48–75 mm

• Revolver: 5 positions

Special Features

• Dust cover bag included

General

• Series: BIO

Field of Application

• Suitable for hobby use: Yes

• Suitable for naturalist studies: Yes

• Suitable for parasite analysis: Yes

This microscope offers robust performance and adaptability, making it an excellent choice for both professional and educational environments.
