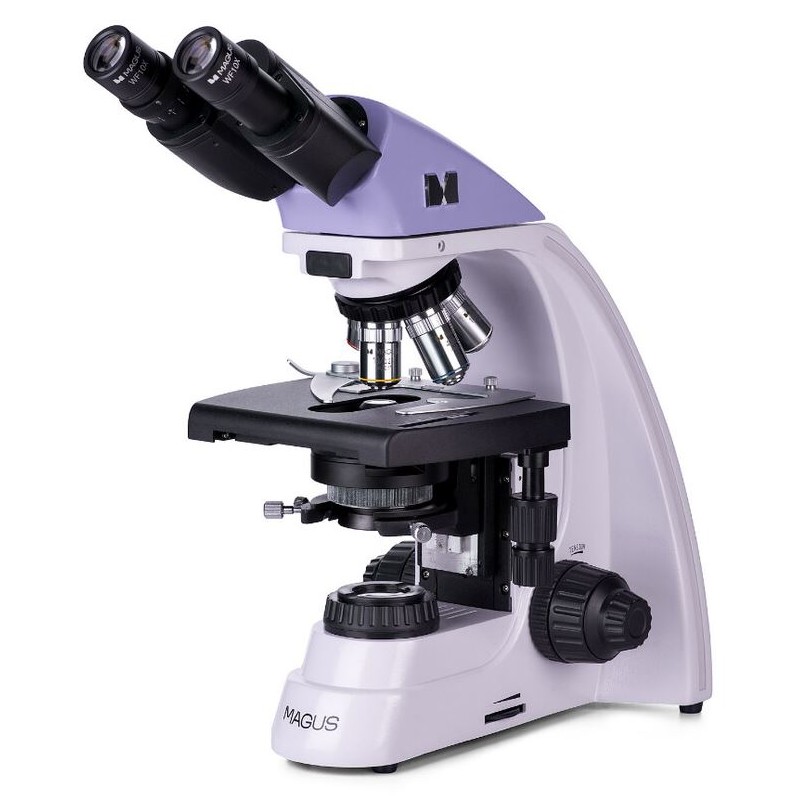

MAGUS Microscope Bio 230BL bino, infinity, 40x-1000x LED (84979)

The MAGUS Microscope Bio 230BL is a binocular microscope designed for both professional and hobby use, offering a magnification range from 40x to 1000x. It features an infinity optical system and achromatic objectives, making it suitable for observing a wide variety of biological samples with clear, accurate color reproduction. The microscope uses LED transmitted light for bright, energy-efficient illumination and includes ergonomic features for comfortable, extended use. This model is ideal for laboratory work, research, teaching, and specialized analyses such as parasite studies.

Specifications

Optics
Number of Objectives: 4
Lighting: Transmitted light (LED)
Field Curvature: None
Colour Correction: Achromatic
Condenser: Abbe
Lamp Type: LED
Objective 1: 4x/0.1
Objective 2: 10x/0.25
Objective 3: 40x/0.65
Objective 4: 100x/1.25
Lens Type: Achromatic
Eyepiece: 10x
Power Supply: Power pack
Magnification Range: 40x – 1000x
Optical System: Infinity

Mechanics
Working Distance (mm):

• 18.89 (4x)

• 5.95 (10x)

• 0.775 (40x)

• 0.36 (100x)

• 2.61 / 8.80 (20x)

• 0.46 (60x)
  Type of Build: Binocular
  Viewing Posture: 30°
  Focusing: Coarse and fine movement
  Specimen Stage: Cross table
  Eyepiece Tube Diameter: 23.2 mm
  Pupillary Distance: 48–75 mm
  Revolver: 5 positions

Special Features
Dust Cover Bag: Yes

General
Series: BIO

Field of Application
Hobby: Yes
Naturalist: Yes
Parasite Analysis: Yes

This microscope provides reliable performance and flexibility, making it a strong choice for a variety of biological and educational applications.
