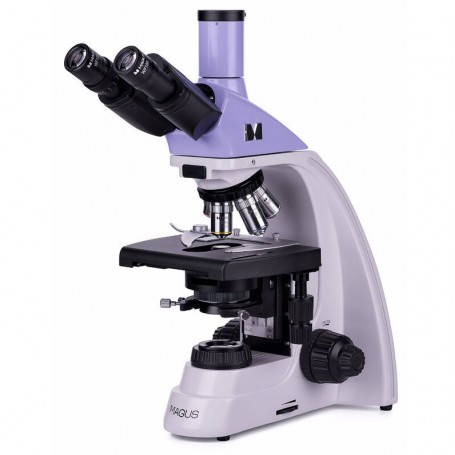

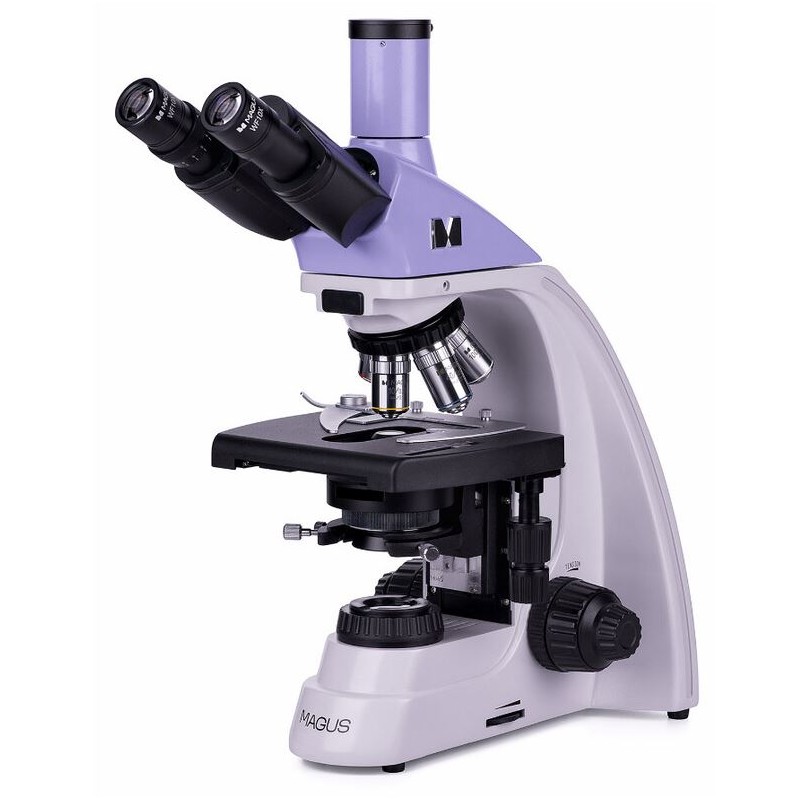

MAGUS Microscope Bio 230T trino, infinity, 40x-1000x LED (84983)

The MAGUS Microscope Bio 230T is a trinocular microscope designed for advanced biological studies and professional laboratory work. It features an infinity optical system and achromatic, plan-corrected objectives, delivering clear and flat-field images across the entire view. With LED transmitted light and support for brightfield observation, this microscope is suitable for both routine and specialized applications. The trinocular head allows for the attachment of a camera, making it ideal for documentation, teaching, and research.

Specifications

Optics
Number of Objectives: 4
Lighting: Transmitted light (LED)
Field Curvature: Plan
Colour Correction: Achromatic
Suspension: Yes
Immersion Lens: Yes
Condenser: Abbe
Lamp Type: LED
Objective 1: 4x/0.1
Objective 2: 10x/0.25
Objective 3: 40x/0.65
Objective 4: 100x/1.25
Lens Type: Achromatic
Eyepiece: 10x
Power Supply: Power pack
Magnification Range: 40x – 1000x
Optical System: Infinity

Mechanics
Type of Build: Trinocular
Viewing Posture: 30°
Focusing: Coarse and fine movement
Specimen Stage: Cross table
Eyepiece Tube Diameter: 22 mm
Pupillary Distance: 48–75 mm
Revolver: 5 positions

Special Features
Dust Cover Bag: Yes

General
Series: BIO
Width: 200 mm
Length: 400 mm
Height: 436 mm
Weight: 8000 g

Contrast Methods
Brightfield: Yes

Field of Application
Hobby: Yes

This microscope combines robust construction and versatile functionality, making it an excellent choice for both hobbyists and professionals who require high-quality imaging and the ability to document or share observations.
