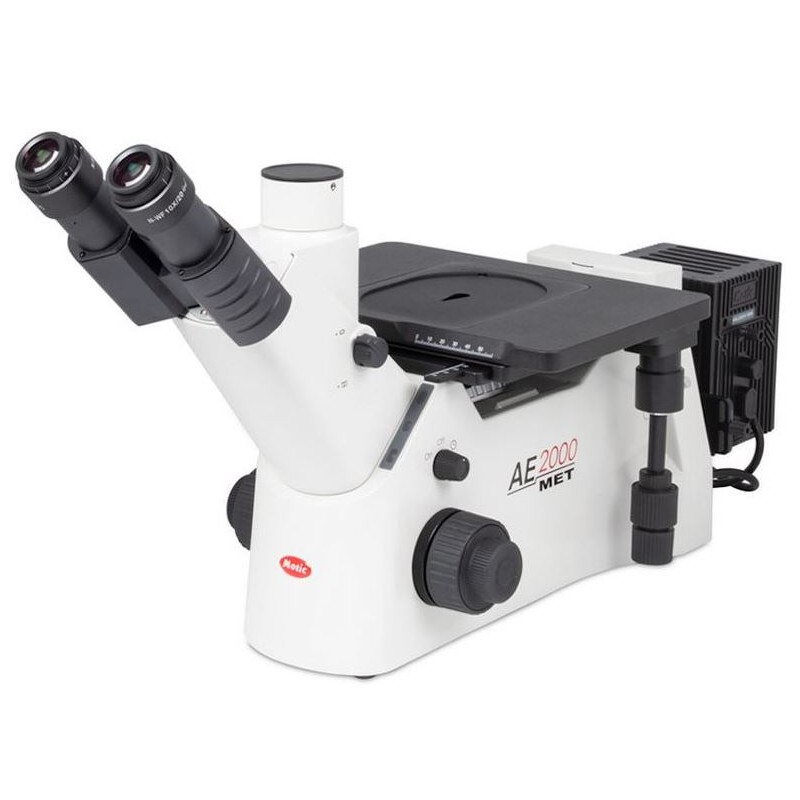

Motic Inverted microscope AE2000 MET trino, infinity, Hal. 100W, (Objectives not included) (67737)

The AE2000MET is an inverted metallurgical microscope designed for inspecting large and bulky samples commonly found in the automotive, machinery, and steel industries. It is ideal for examining metal pieces or die-cast parts that are too large for upright microscopes, making it perfect for failure analysis, material research, and quality control. The advanced CCIS® Infinity Optical System provides brightfield and darkfield objectives with long working distances, allowing detailed inspection of massive opaque samples. High-quality glass and anti-reflection coatings ensure excellent image clarity, while the robust 3-plate mechanical stage allows smooth and precise scanning of specimens.

A powerful 100W halogen light source supports brightfield, darkfield, and polarized light (POL) contrast techniques, making the microscope versatile for a range of industrial applications. The AE2000MET is manufactured to meet current RoHS standards, and all components are treated with an anti-fungus coating to ensure durability in high-humidity environments.

AE2000 MET Trinocular 100W

Optical System:
Colour Corrected Infinity Optical System (CCIS®) for superior image quality.

Observation Tube:
Trinocular head, Siedentopf type, 360° swiveling, 45° inclined for comfortable viewing.
Trinocular light split: 100:0/20:80
Interpupillary distance adjustable from 48 to 75 mm.
Diopter adjustment on both eyepieces, +/- 5 diopter.

Eyepieces:
Widefield N-WF10X/20 mm with diopter adjustment.

Nosepiece:
Side-facing quintuple nosepiece with M32 objective mounting thread.

Stand Type:
Inverted for easy access to large samples.

Stage:
Mechanical stage, hard-coated with built-in low-position coaxial stage control.
Includes round and oval stage inserts.
Stage size: 280 x 192 mm
Travel range (X & Y): 50 x 50 mm

Focus Mechanism:
Coaxial coarse and fine focusing with tension adjustment.
Fine focus precision: 2 µm
Focusing stroke: 10 mm

Illumination:
Koehler quartz halogen 12V/100W with intensity control, external lamphouse.
Sleeping mode automatically turns off illumination after a period of inactivity.
External transformer.
Power supply: 100-240V (CE)

Accessories Included:
Dust cover, power cord, hex key, blue filter.

Dimensions and Weight:
Dimensions (L x W x H): 673 x 280 x 345 mm
Net weight: 13 kg

Specifications

Optics:
Eyepiece: 10x
Condenser: ELWD condenser (N.A. 0.30, WD 72 mm) with aperture stop and filter holder

Lighting:
Incident light
Lamp type: Halogen (12V/100W)
Brightness control: Yes
Power supply: 100-240V, VDE plug (CE) mains adaptor
Supports brightfield and phase contrast

Mechanics:
Trinocular build
Viewing posture: 45° inclined
Coarse and fine focusing
Specimen stage included
Revolver: 5 positions

Special Features:
Dust cover bag
Filter holder
Wide-angle eyepiece

General Information:
Color: Grey/black
Weight: 13,000 g
Height: 345 mm
Length: 673 mm
Width: 280 mm
Series: AE2000 MET

Field of Application:
Suitable for industrial inspection, medicine, education, and university research

Miscellaneous:
Supplier product number: 1100103800174
