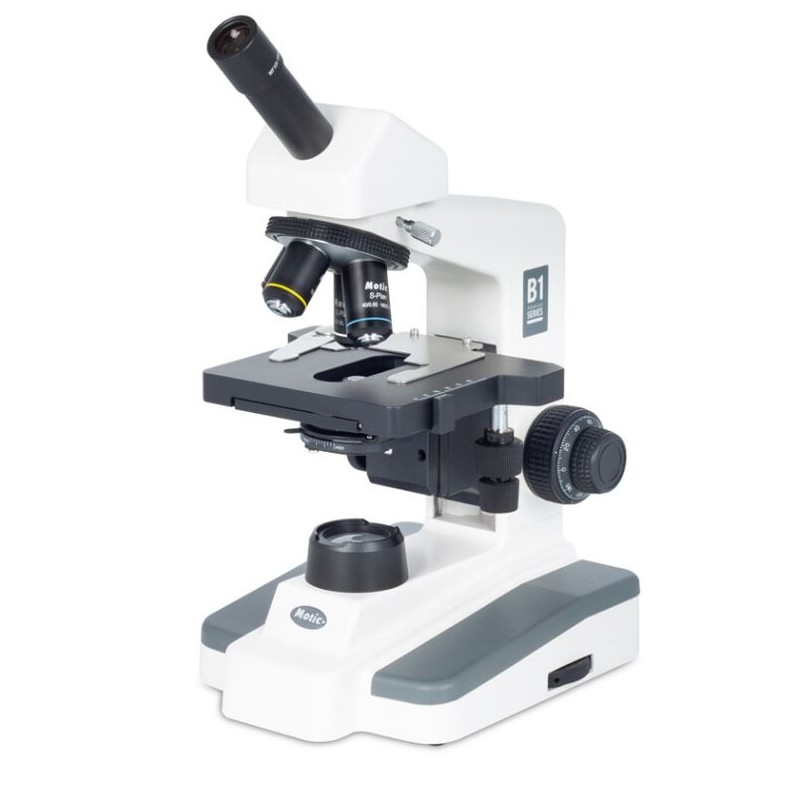

Motic Microscope B1-211E-SP, mono, 40x - 1000x (76057)

The Motic Microscope B1-211E-SP is a monocular microscope designed for educational and hobby use, offering a wide magnification range from 40x to 1000x. This model is suitable for students, classrooms, and home laboratories, providing clear and accurate images for detailed biological observations. Its semi-plan achromatic objectives and ergonomic design ensure comfortable use, while the LED illumination and adjustable brightness make it easy to view specimens under various lighting conditions. The B1-211E-SP is part of the B1 Elite series and is recommended for users aged 9 and above.

Optics
Optical system: DIN (160 mm)
Magnification: 40x – 1000x
Eyepiece: WF 10x/18, 45° angled, 360° rotatable
Objective 1: 4x/0.10, working distance 17.9 mm
Objective 2: 10x/0.25, working distance 5.3 mm
Objective 3: 40x/0.65/S, working distance 0.61 mm
Objective 4: 100x/1.25/S/Oil, working distance 0.165 mm
Lens type: Semi-Plan Achromatic
Infinity corrected: No
Condenser: Abbe 1.25 N.A., focus adjustable, with iris diaphragm

Lighting
Lamp type: LED
Lighting: Transmitted light
Brightness control: Yes
Power supply: 100-240V, VDE plug (CE) mains adaptor
Brightfield: Yes

Mechanics
Focusing: Coarse and fine movement
Viewing posture: 45° angled eyepiece
Specimen stage: Included
Revolver: 4-position
Type of build: Monocular

Special Features
Dust cover bag: Included
Rechargeable battery operation: Not available

General Information
Color: White/grey
Suitable from: Age 9
Weight: 6800 g
Height: 380 mm
Length: 245 mm
Width: 190 mm
Series: B1 Elite

Field of Application
Hobby: Yes
Education: Yes

Miscellaneous
Supplier product number: 1100100501142
