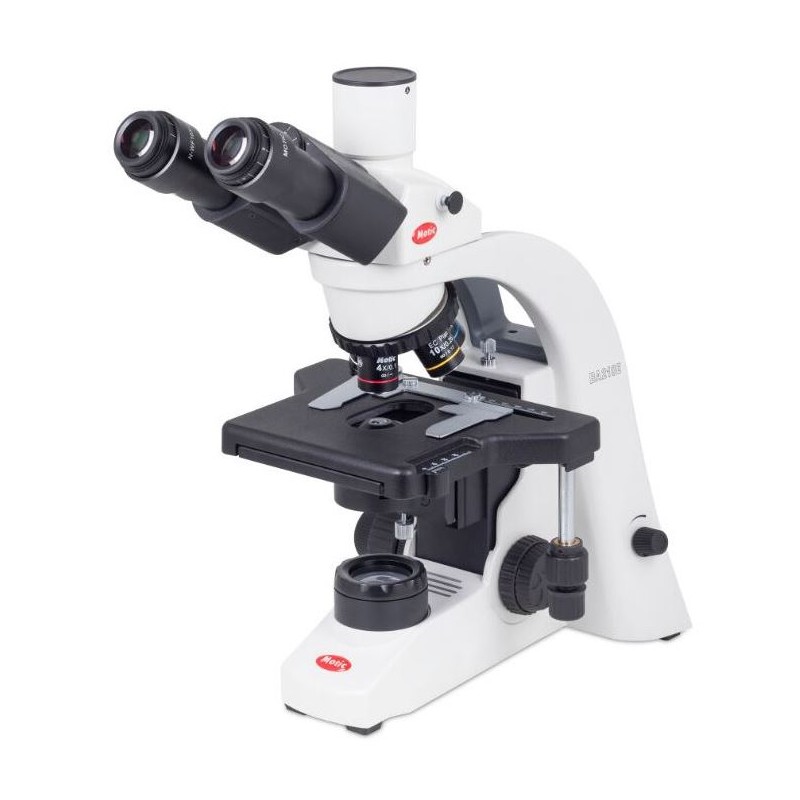

Motic Microscope BA210 trino, infinity, EC- plan, achro, 40x-1000x, LED (67727)
The BA210 series microscopes are compact and robust instruments designed for educational use in schools and universities. Featuring Motic’s CCIS® infinity optics, these microscopes provide excellent image quality, making them ideal for effective learning in biological and medical programs. Their ergonomic design, precise focusing system, and versatile illumination options ensure comfortable and reliable use during extended observation sessions.
1628.52 $ net price (non-EU countries)
Anatolii Livashevskyi
Product Manager
/
+48721808900
+48721808900
+48721808900
[email protected]
Description
The BA210 series microscopes are compact and robust instruments designed for educational use in schools and universities. Featuring Motic’s CCIS® infinity optics, these microscopes provide excellent image quality, making them ideal for effective learning in biological and medical programs. Their ergonomic design, precise focusing system, and versatile illumination options ensure comfortable and reliable use during extended observation sessions. The BA210 series is well-suited for classroom environments, offering durability and high performance for a wide range of teaching applications.
Observation Tube
Trinocular head, Siedentopf type
Trinocular light split: 100:0/20:80
Inclined at 30°, 360° rotating
Interpupillary distance: 55-75 mm
Diopter adjustment on both eyepieces, +/- 5 diopter
Optical System
Colour Corrected Infinity Optical System (CCIS®)
Eyepieces: Widefield N-WF10X/20 mm with diopter adjustment
Nosepiece: Reversed quadruple
Objective classification: CCIS® EC Plan Achromatic, DIN
Objective mounting thread: W 4/5"x1/36" (RMS standard)
Stand and Stage
Stand type: Upright
Mechanical stage with built-in low position rackless coaxial stage control and sample holder
Stage size: 150 x 150 mm
Travel range (X & Y): 80 x 30 mm
Condenser and Focusing
Focusable Abbe condenser N.A. 1.25 with slot for contrast sliders
Iris diaphragm
Coaxial coarse and fine focusing system with tension adjustment
Fine focus precision: 2 µm
Focusing stroke: 20 mm
Upper limit stop: Preset but adjustable
Illumination
Transmitted illumination: Quartz halogen 6V/30W with intensity control
Illumination interchangeability: Quartz halogen 6V/30W or LED 3W
Filter holder on top of the illuminator with fixing cap
Internal transformer
Power supply: 100-240V (CE)
Accessories Included
Dust cover
Power cord
Hex key
Immersion oil (5 ml)
Blue filter
Spare fuse
Cord hanger
Thumb screw
Dimensions and Weight
Dimensions (L x W x H): 360 x 220 x 395 mm
Net weight: 7.2 kg
Miscellaneous
Supplier product number: 1100100403742
