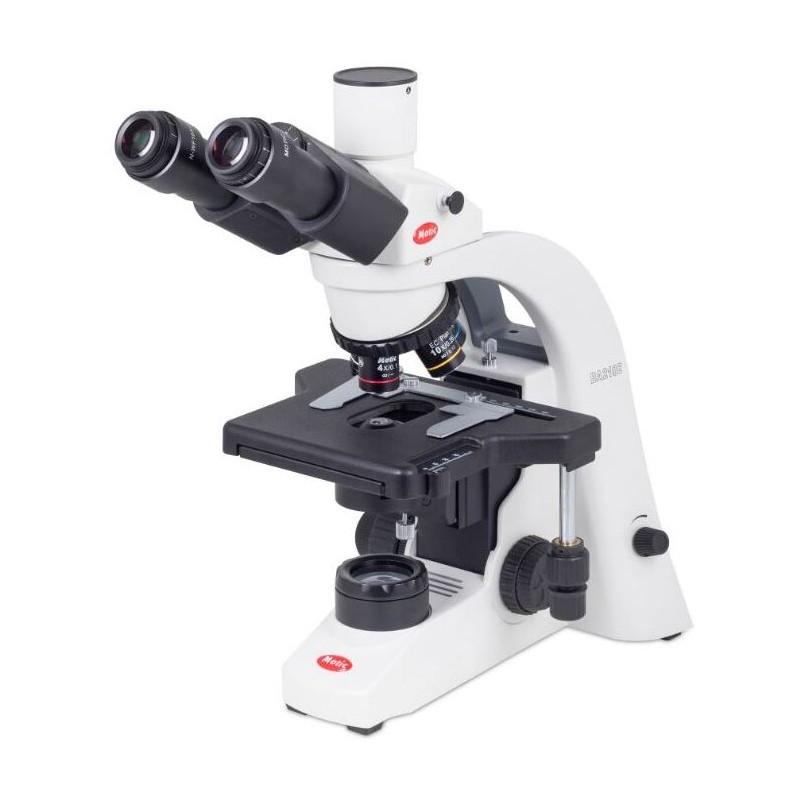

Motic Microscope BA210 trino, infinity, EC- plan, achro, 40x-400x, LED (67726)

The BA210 series microscopes are compact and robust instruments, specifically designed for educational settings in schools and universities. Featuring Motic’s CCIS® infinity optics, these microscopes provide outstanding image quality, supporting effective learning in all biological and medical study programs. Their ergonomic design and precise focusing system make them suitable for extended classroom use, while the versatile illumination options ensure clear specimen observation under various conditions.

Optical System
Colour Corrected Infinity Optical System (CCIS®)

Observation Tube
Trinocular head, Siedentopf type
Inclined at 30°, 360° rotating
Trinocular light split: 100:0/20:80
Interpupillary distance: 55-75 mm
Diopter adjustment on both eyepieces, +/- 5 diopter
Eyepieces: Widefield N-WF10X/20 mm with diopter adjustment

Nosepiece and Objectives
Reversed quadruple nosepiece
Objective classification: CCIS® EC Plan Achromatic, DIN
Objective mounting thread: W 4/5"x1/36" (RMS standard)

Stand and Stage
Stand type: Upright
Mechanical stage with built-in low position rackless coaxial stage control and sample holder
Stage size: 150 x 150 mm
Travel range (X & Y): 80 x 30 mm

Condenser and Focusing
Focusable Abbe condenser N.A. 1.25 with slot for contrast sliders
Iris diaphragm
Coaxial coarse and fine focusing system with tension adjustment
Fine focus precision: 2 µm
Focusing stroke: 20 mm
Upper limit stop: Preset but adjustable

Illumination
Transmitted illumination: Quartz halogen 6V/30W with intensity control
Illumination interchangeability: Quartz halogen 6V/30W or LED 3W
Filter holder on top of the illuminator with fixing cap
Internal transformer
Power supply: 100-240V (CE)

Accessories Included
Dust cover
Power cord
Hex key
Immersion oil (5 ml)
Blue filter
Spare fuse
Cord hanger
Thumb screw

Dimensions and Weight
Dimensions (L x W x H): 360 x 220 x 395 mm
Net weight: 7.2 kg

Miscellaneous
Supplier product number: 1100100403743
