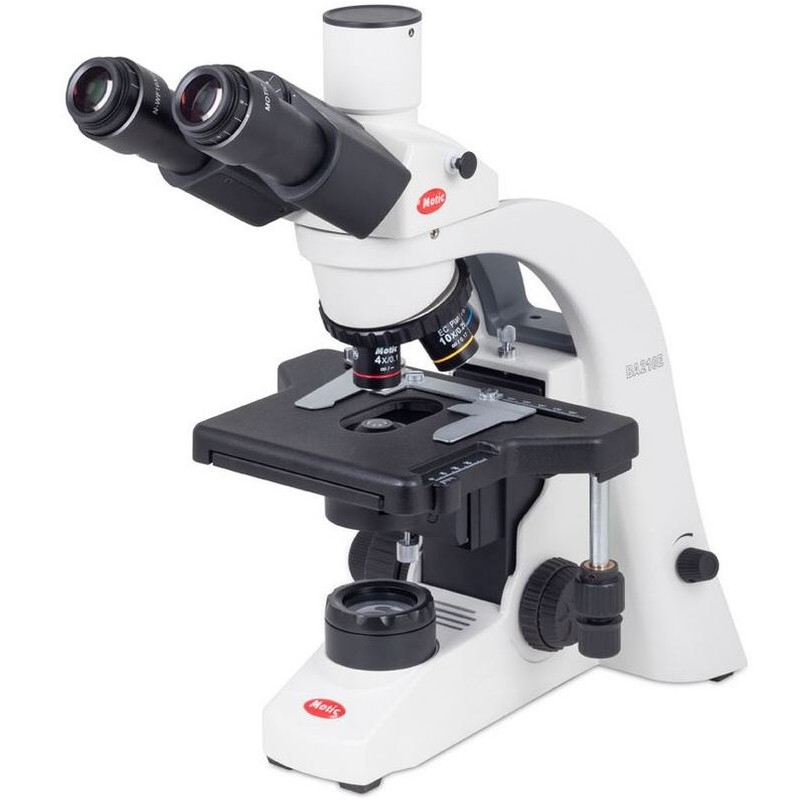

Motic Microscope BA210E trino, infinity, EC- plan, achro, 40x-400x, Hal (67722)

The BA210 Elite model from Motic is designed to meet the needs of schools and educational institutions seeking a reliable entry-level microscope for examining translucent specimens. This microscope combines a sturdy mechanical structure with enhanced optical performance, making it ideal for classroom and laboratory environments. Its user-friendly design ensures ease of operation, while the advanced optics provide clear, high-quality images for effective learning in biology and medical studies.

Observation Tube
Trinocular head, Siedentopf type
Trinocular light split: 100:0/20:80
Inclined at 30°, 360° rotating
Interpupillary distance: 55-75 mm
Diopter adjustment on both eyepieces, +/- 5 diopter
Eyepieces: Widefield N-WF10X/20 mm with diopter adjustment

Objectives
4X/0.10 (working distance 15.9 mm)
10X/0.25 (working distance 17.4 mm)
40X/0.65/S (working distance 0.5 mm)
Objective classification: CCIS® EC Plan Achromatic, DIN
Objective mounting thread: W 4/5"x1/36" (RMS standard)
Nosepiece: Reversed quadruple

Optical System
Colour Corrected Infinity Optical System (CCIS®)

Stand and Stage
Stand type: Upright
Mechanical stage with built-in low position rackless coaxial stage control and sample holder
Stage size: 150 x 150 mm
Travel range (X & Y): 80 x 30 mm

Condenser and Focusing
Focusable Abbe condenser N.A. 1.25 with slot for contrast sliders
Iris diaphragm
Coaxial coarse and fine focusing system with tension adjustment
Fine focus precision: 2 µm
Focusing stroke: 20 mm
Upper limit stop: Preset but adjustable

Illumination
Transmitted illumination: Quartz halogen 6V/30W with intensity control
Illumination interchangeability: Quartz halogen 6V/30W or LED 3W
Filter holder on top of the illuminator with fixing cap
Internal transformer
Power supply: 100-240V (CE)

Accessories Included
Dust cover
Power cord
Hex key
Immersion oil (5 ml)
Blue filter
Spare fuse
Cord hanger
Thumb screw

Dimensions and Weight
Dimensions (L x W x H): 360 x 220 x 395 mm
Net weight: 7.2 kg

Miscellaneous
Supplier product number: 1100100403763
