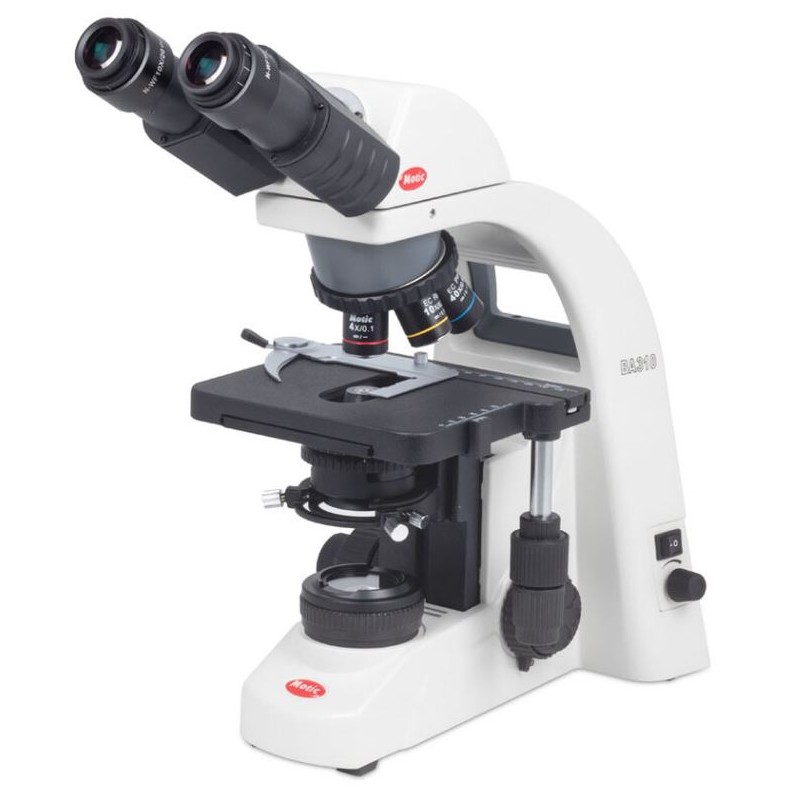

Motic Microscope BA310, LED, 40x-400x (without 100x), bino (64387)

The Motic BA310 LED binocular microscope is built to withstand the demands of daily use in universities, clinics, and laboratories. It features Motic’s proven CCIS® infinity optics and EC Plan achromatic objectives, delivering flat, high-quality images across the field of view. The Köhler LED illumination system provides excellent, even lighting, making this model suitable for both routine and advanced sample analysis. Its robust design and ergonomic features ensure comfortable and reliable operation for extended periods.

Optical System
Colour Corrected Infinity Optical System (CCIS®)
Infinity corrected: Yes
Magnification range: 40x – 400x
Number of objectives: 3
Objective type: Plan, with cover glass correction

Observation Tube
Binocular head, Siedentopf type, 360° swiveling
Viewing posture: 30° inclined
Pupillary distance: 48-75 mm
Eyepiece: Widefield, suitable for eyeglass wearers

Lighting
Transmitted light, brightfield
Lamp type: LED
Köhler illumination for uniform light distribution

Condenser
Abbe condenser with iris diaphragm and slider slot

Stage and Mechanics
Cross table specimen stage
Coarse and fine focusing
Revolver: 5-position
Centering stage: Yes

Special Features
Wide-angle eyepiece
Plan coating on optical system

General Information
Width: 220 mm
Height: 400 mm
Length: 400 mm
Color: White/black
Weight: 8.6 kg
Series: BA-310

Contrast Methods
Brightfield: Yes
Dark field: Optional
Phase contrast: Optional
Polarization: Yes

Field of Application
Medicine: Yes
Education: Yes
University: Yes

Miscellaneous
Supplier product number: 1100100401487
