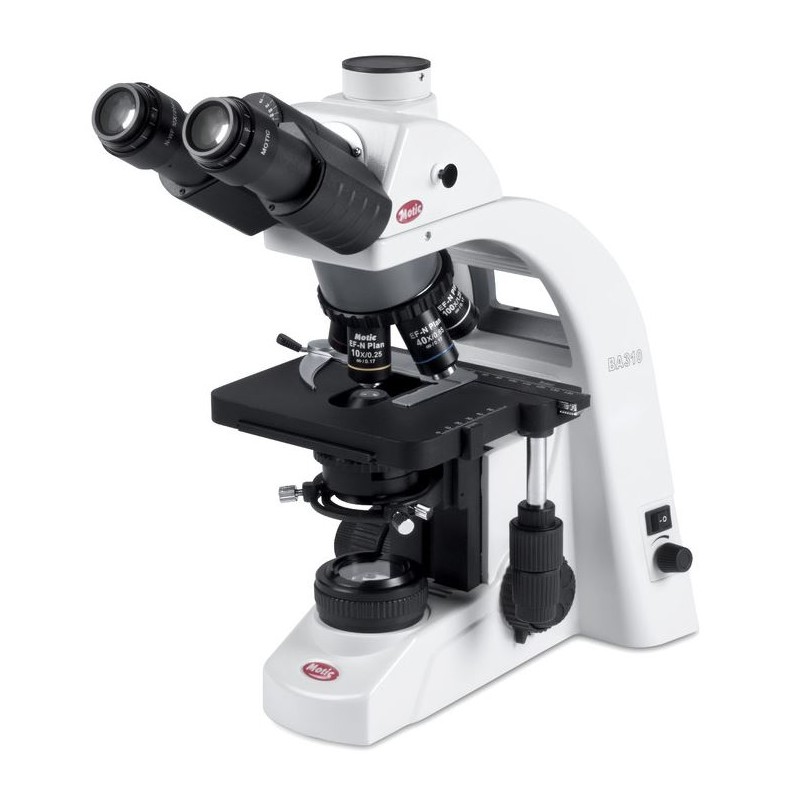

Motic Microscope BA310LED, trino, infinity, plan, achro, 40x-1000x, LED 3W (45002)

The Motic BA310 LED Trinocular microscope is built to handle the demands of daily routine work in universities, clinics, and laboratories. It features the advanced CCIS® Colour Corrected Infinity Optical System, which, combined with EC Plan achromatic objectives, ensures excellent image clarity and color accuracy. The Köhler LED illumination provides optimal lighting for even the most challenging samples, making this microscope suitable for a wide range of professional applications. Its robust design, ergonomic features, and flexible trinocular head make it ideal for both observation and digital imaging.

Optical System
Colour Corrected Infinity Optical System (CCIS®)

Observation Tube
Trinocular head, Siedentopf type, 360° swiveling
Inclined at 30°, 360° rotating
Trinocular light split: 100:0/20:80 (optional 100:0/0:100)
Interpupillary distance: 48-75 mm
Diopter adjustment on both eyepieces, +/- 5 diopter
Eyepieces: Widefield N-WF10X/20 mm with diopter adjustment

Nosepiece and Objectives
Reversed quintuple nosepiece
Objective classification: CCIS® EC Plan Achromatic, DIN
Objectives:

• 4X/0.10 (WD 15.9 mm)

• 10X/0.25 (WD 17.4 mm)

• 40X/0.65/S (WD 0.5 mm)

• 100X/1.25/S-Oil (WD 0.15 mm)
  Objective mounting thread: W 4/5"x1/36" (RMS standard)

Stand and Stage
Stand type: Upright
Mechanical stage with built-in low position coaxial stage control, tension adjustment, and two-sample holder
Stage size: 175 x 140 mm
Travel range (X & Y): 76 x 50 mm

Condenser and Focusing
Focusable and centerable Abbe condenser N.A. 0.90/1.25 with slot for contrast sliders
Iris diaphragm
Coaxial coarse and fine focusing system with tension adjustment
Fine focus precision: 2 μm
Focusing stroke: 20 mm
Upper limit stop: Preset but adjustable

Illumination
Koehler LED 3W with intensity control
Filter holder on top of the illuminator
Internal transformer
Power supply: 100-240V (CE)

Accessories Included
Dust cover
Power cord
Hex key
Immersion oil (5 ml)
Spare fuse
Cord hanger
Thumb screw

Dimensions and Weight
Dimensions (L x W x H): 400 x 220 x 400 mm
Net weight: 8.6 kg

Miscellaneous
Supplier product number: 1100100401512
