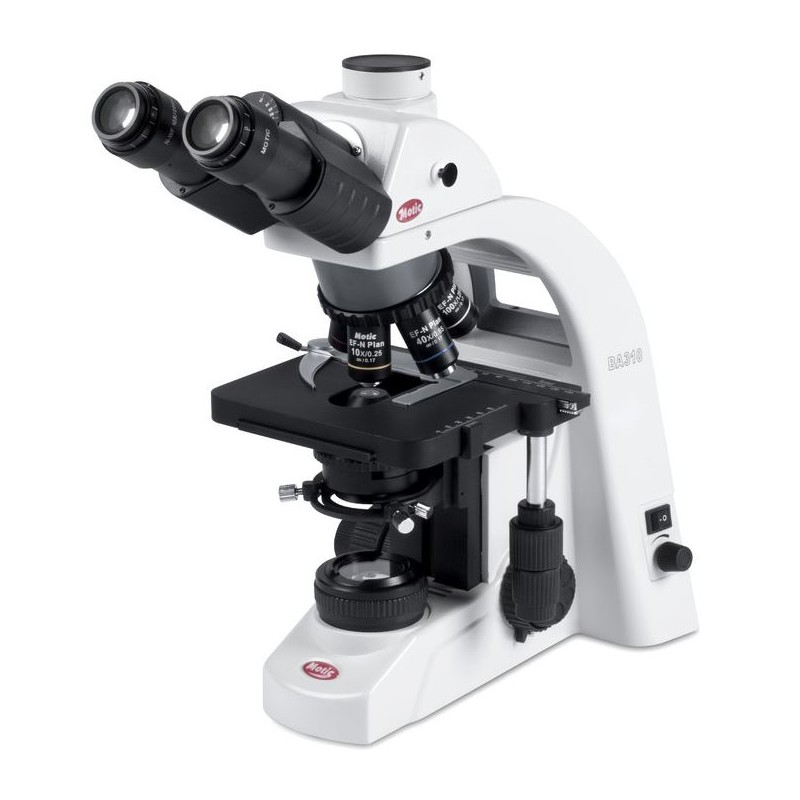

Motic Microscope BA310E trino, infinity, EC-plan, achro, 40x - 400x, Hal. 30W (67718)

The Motic BA310E is designed to meet the rigorous demands of daily work in universities, clinics, and laboratories. Its advanced CCIS® infinity optical system and EC Plan Achromatic objectives provide a fully corrected intermediate image with excellent clarity and color fidelity. The BA310E features Köhler illumination for optimal lighting, even with challenging samples, and the standard 30W halogen light source can be easily replaced with LED modules of different color temperatures. This flexibility allows for future upgrades to phase contrast, polarization (POL) contrast, dark field, and even fluorescence with Epi-LED modules. The BA310E is built to deliver reliable, professional results across a wide range of biomedical applications.

BA310E Trinocular

Optical System
Colour Corrected Infinity Optical System (CCIS®)

Observation Tube
Trinocular head, Siedentopf type, 360° swiveling
Trinocular light split: 100:0/20:80 (optional 100:0/0:100)
Interpupillary distance: 48-75 mm
Diopter adjustment on both eyepieces, +/- 5 diopter
Eyepieces: Widefield N-WF10X/20 mm with diopter adjustment

Nosepiece and Objectives
Reversed quintuple nosepiece
CCIS® EC Plan Achromatic objectives, DIN

• 4X/0.10, WD 15.9 mm

• 10X/0.25, WD 17.4 mm

• 40X/0.65/S, WD 0.5 mm
  Objective mounting thread: W 4/5"x1/36" (RMS standard)

Stand and Stage
Upright stand
Mechanical stage with built-in low position rackless coaxial stage control, tension adjustment, and sample holder
Stage size: 180 x 170 mm
Travel range (X & Y): 80 x 55 mm

Condenser and Focusing
Focusable and centerable Abbe condenser N.A. 0.90/1.25 with slot for contrast sliders
Iris diaphragm
Coaxial coarse and fine focusing system with tension adjustment
Fine focus precision: 2 µm
Focusing stroke: 20 mm
Upper limit stop: Preset but adjustable

Illumination
Koehler quartz halogen 6V/30W with intensity control
Illumination interchangeability: Quartz halogen 6V/30W or LED 3W
Filter holder on top of the illuminator with fixing cap
Internal transformer
Power supply: 100-240V (CE)

Accessories Included
Dust cover
Power cord
Hex key
Blue filter
Spare fuse
Cord hanger
Thumb screw

Dimensions and Weight
Dimensions (L x W x H): 400 x 220 x 400 mm
Net weight: 8.6 kg

Miscellaneous
Supplier product number: 1100100402966
